4816 F (554C565M100) - Cub Cadet Walk-Behind Mower (SN: 503791 & Above) Carburetor Overhaul Kit Parts Diagram

Walk-Behind Mower

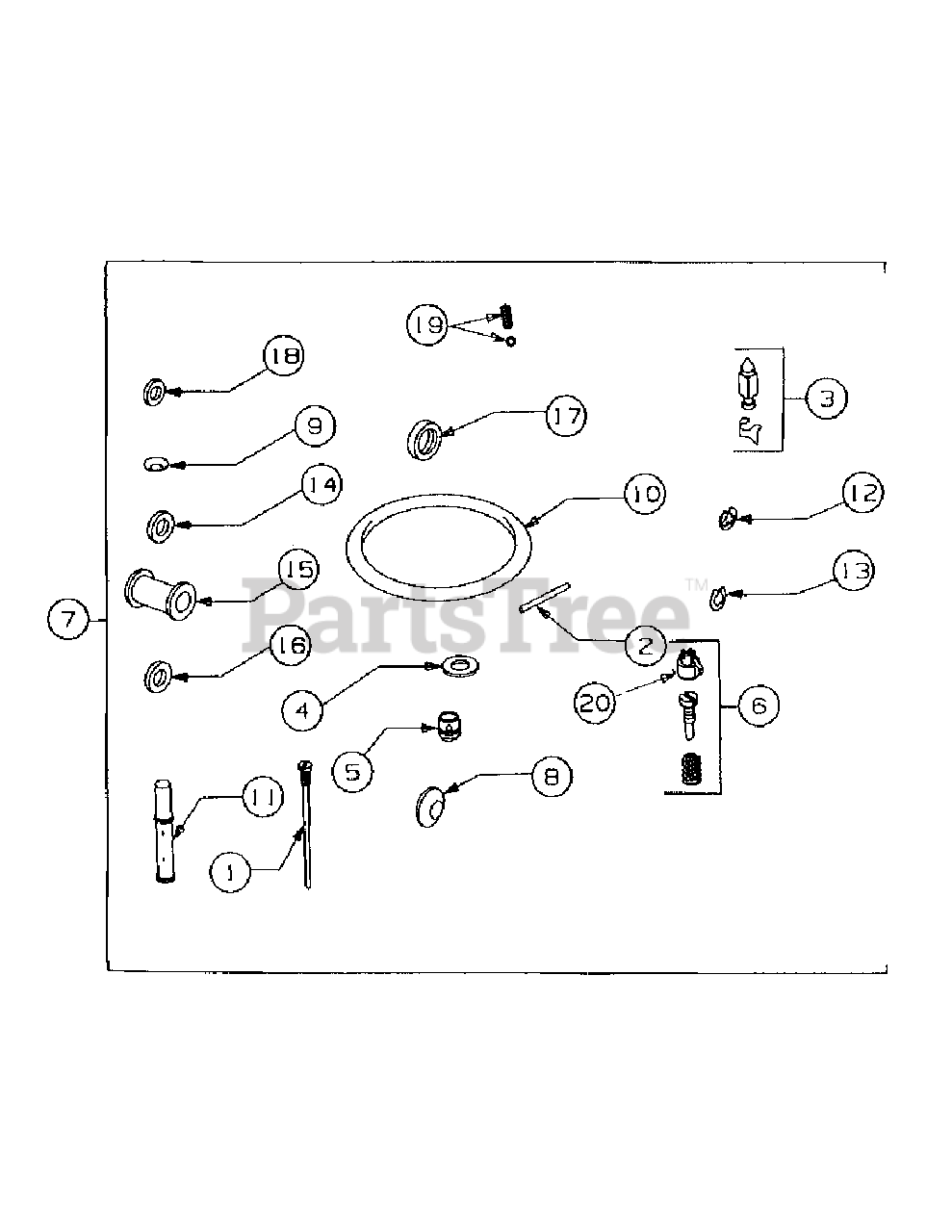

Carburetor Overhaul Kit Parts Diagram

  • Title

1

Cub Cadet BS-805777

Nozzle, Carburetor

$

$

Currently unavailable

2

Cub Cadet BS-805586

Pin, Float Hinge

$

$

Not available

3

Cub Cadet BS-807706

Valve, Fuel Inlet

$41.99

$

In Stock, Qty 8

0

4

Gasket, Sealing

Note: (Sold in kit only)

$

$

Not available

5

Jet, Main

Note: (Sold in kit and with Ref No. 11)

$

$

Not available

6

Cub Cadet BS-807707

Valve Assembly, Carburetor Idle

$39.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-807962

Overhaul Kit, Carburetor

Note: (Incl. Ref No.1-6, 8-19)

$

$

Not available

8

Cub Cadet BS-805570

Plug, Welch

$

$

Not available

9

Cub Cadet BS-805571

Plug, Welch

$

$

Not available

10

Gasket, Bowl Mtg

Note: (Sold in kit only

$

$

Not available

11

Cub Cadet BS-807960

Nozzle

Note: (Incl. Ref No. 5)

$36.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-805578

Retainer, Choke Shaft

$4.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-805577

Retainer, Throttle Shaft

$

$

Not available

14

Cub Cadet BS-805576

Collar, Throttle

$

$

Not available

15

Cub Cadet BS-805574

Collar, Throttle

$

$

Not available

16

Cub Cadet BS-805580

Collar, Choke

$

$

Currently unavailable

17

Cub Cadet BS-805575

Seal, Throttle Shaft

$

$

Currently unavailable

18

Cub Cadet BS-805581

Seal, Choke Shaft

$

$

Not available

19

Cub Cadet BS-807717

Ball, Choke Locator

$

$

Not available

20

Cub Cadet BS-805858

Cap, Limiter

$

$

Currently unavailable

Cub Cadet BS-807716

Gasket Set, Carburetor

Note: (Incl. Ref No. 4, 10, 17 & 18)

$

$

Not available
