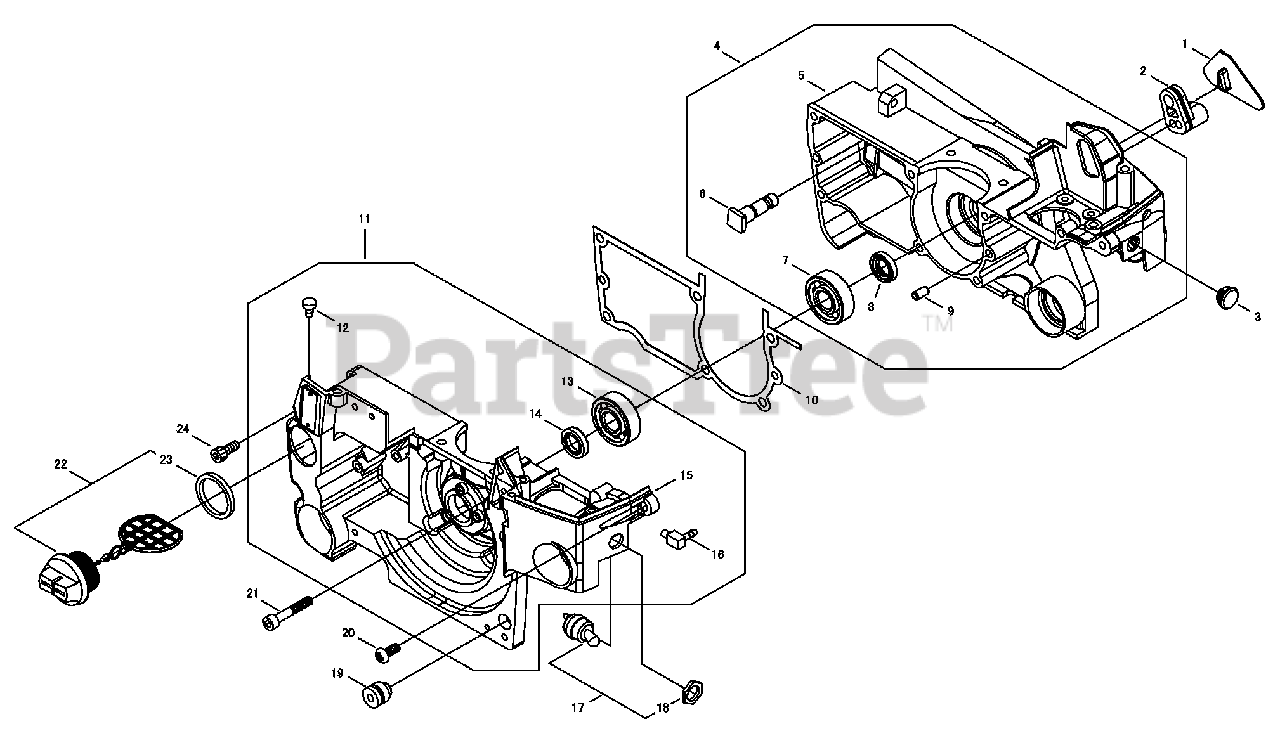

488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title

1

Echo V420002820

STOPPER H

Note: 22160-22250

$4.99

$

Usually ships in 2-4 days

0

2

Echo V131000120

GROMMET

Note: 22160-82150

$5.49

$

In Stock, only 2 left!

0

3

Echo V141000110

PLUG

Note: 22160-22220

$0.99

$

Usually ships in 2-4 days

0

4

Echo P021032220

CRANKCASE ASSY - RIGHT
(Superseded to P021040960)

Note: 72312-21502

$

$

Not available

5

Echo A120000890

CRANKCASE - RIGHT

Note: 22160-21512

$

$

Currently unavailable

6

Echo V225000160

STUD, GUIDE BAR

Note: 72312-21520

$3.99

$

In Stock, only 2 left!

0

7

Echo V592000330

BEARING, BALL - 6001
(Superseded to 9403536201)

Note: 02030-06201

$7.99

$

In Stock, Qty 12

0

8

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, Qty 7

0

9

Echo 10021502830

PIN - LOCATING

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

10

Echo V102000170

GASKET, CRANKCASE

Note: 22160-21720

$2.49

$

Usually ships in 2-4 days

0

11

Echo P021037230

CRANKCASE ASSY - LEFT

Note: 22160-21202

$

$

Currently unavailable

12

Echo A356000130

VALVE, CHECK

Note: 22115-57120

$4.49

$

Usually ships in 2-4 days

0

13

Echo V592000330

BEARING, BALL - 6001
(Superseded to 9403536201)

Note: 02030-06201

$7.99

$

In Stock, Qty 12

0

14

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, Qty 7

0

15

Echo A120000690

CRANKCASE - LEFT
(Superseded to P021039672)

Note: 22160-21212

$

$

Not available

16

Echo V185000000

CONNECTOR, PIPE

Note: 22150-21220

$6.49

$

Usually ships in 2-4 days

0

17

Echo A440001640

IGNITION SWITCH ASSY

Note: 22160-22100

$13.99

$

Usually ships in 2-4 days

0

18

Echo V266000090

NUT - 10

Note: 22154-22130

$0.99

$

In Stock, Qty 7

0

19

Echo V420002840

SUPPORTER

Note: 22160-33730

$2.49

$

Usually ships in 2-4 days

0

20

Echo V253000650

SCREW

Note: 22157-21760

$0.99

$

Usually ships in 2-4 days

0

21

Echo V203001510

BOLT
(Superseded to Discontinued)

Note: 22157-21750

$

$

Not available

22

Echo C020000020

CAP ASSY

Note: 22160-21302

$9.99

$

In Stock, Qty 17

0

23

Echo V106000080

GASKET, CAP

Note: 22160-21351

$1.99

$

In Stock, Qty 20+

0

24

Echo V203001600

BOLT

Note: 22157-12130

$0.99

$

In Stock, Qty 20+

0
