48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) 48" Mower Deck - Mower Lift Group (48L22AHOX8A) Parts Diagram

48" Lawn Tractor, 22hp

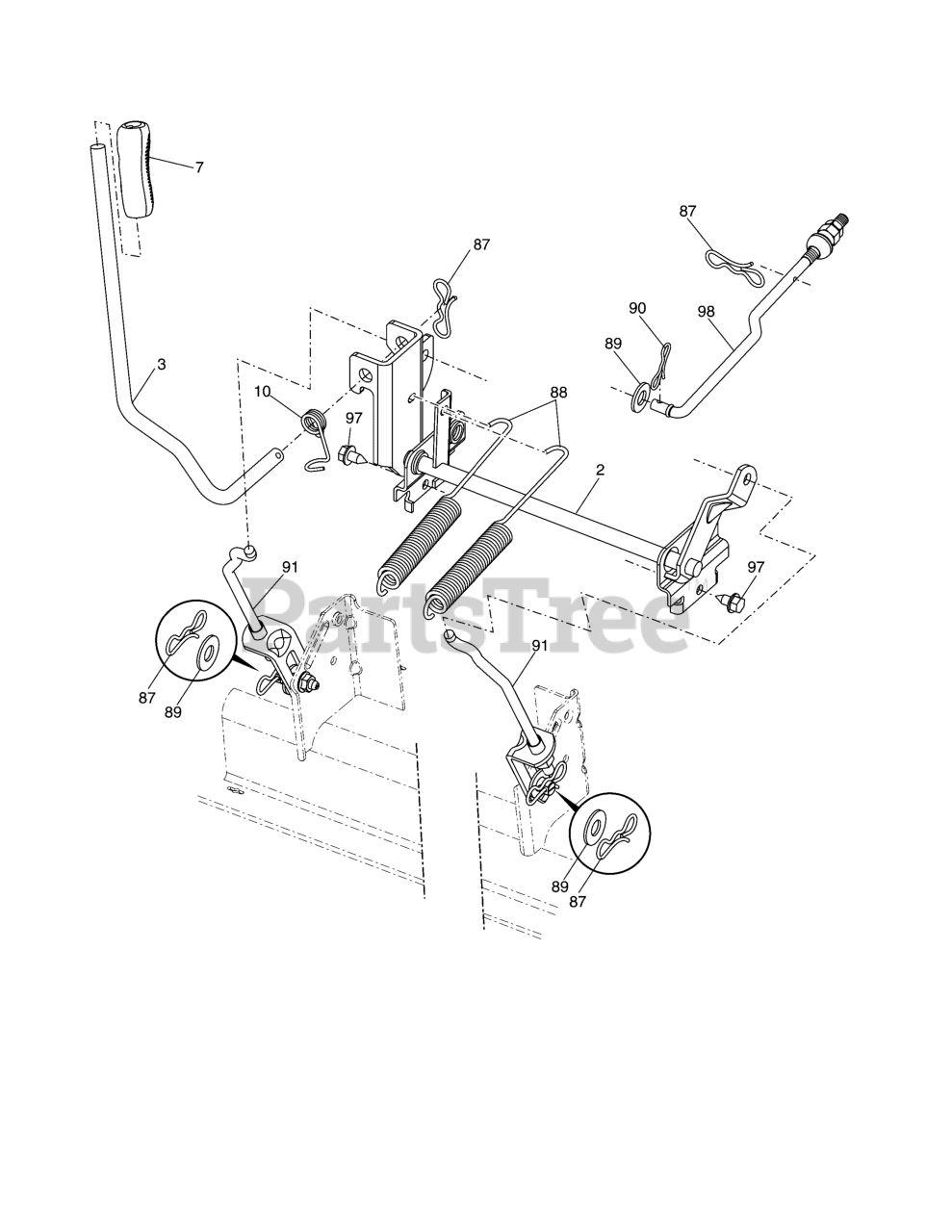

48" Mower Deck - Mower Lift Group (48L22AHOX8A) Parts Diagram

  • Title

2

Murray 422027

Shaft Asm., Lift
(Superseded to 705239)

Note: See your local Murray distributor for parts and service.

$104.99

$

Usually ships in 2-12 days

0

3

Murray 195231

Lever Asm., Lift RH
(Superseded to 705092)

Note: See your local Murray distributor for parts and service.

$78.99

$

Usually ships in 2-12 days

0

7

Murray 196492X428

Grip, Lever
(Superseded to 708632)

Note: See your local Murray distributor for parts and service.

$13.99

$

Usually ships in 2-12 days

0

10

Murray 196314

Spring Torsion
(Superseded to 705098)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

87

Murray 194209

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 709277)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

88

Murray 410710

Spring Lift Assist
(Superseded to 705183)

Note: See your local Murray distributor for parts and service.

$16.99

$

Usually ships in 2-12 days

0

89

Murray 19191912

Washer Clear Zinc

Note: See your local Murray distributor for parts and service.

$

$

Not available

90

Murray 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 709276)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

91

Murray 195181

Link Lift Susp Mower Rear
(Superseded to 705089)

Note: See your local Murray distributor for parts and service.

$78.99

$

Usually ships in 2-12 days

0

97

Murray 17000612

Screw 3/8-16 x 3/4
(Superseded to 709148)

Note: See your local Murray distributor for parts and service.

$7.49

$

In Stock, only 1 left!

0

98

Murray 195264

Link Lift Susp. Front Mower
(Superseded to 708260)

Note: See your local Murray distributor for parts and service.

$37.99

$

Usually ships in 2-12 days

0
