48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) Steering Group (48L22AHOX8A) Parts Diagram

48" Lawn Tractor, 22hp

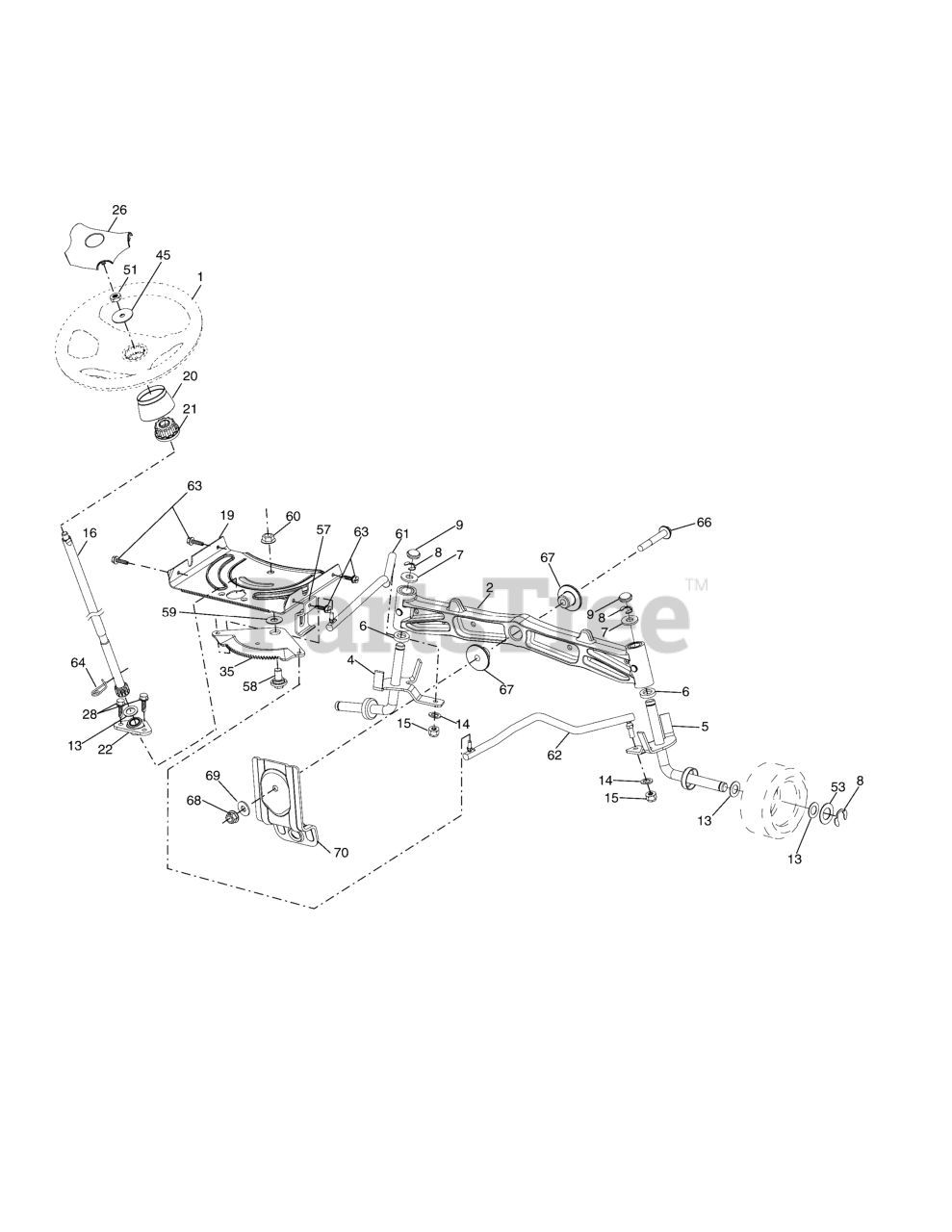

Steering Group (48L22AHOX8A) Parts Diagram

  • Title

1

Murray 414803X428

Wheel, Steering

Note: See your local Murray distributor for parts and service.

$40.99

$

In Stock, Qty 13

0

2

Murray 195968

Axle Asm., Front
(Superseded to 709727)

Note: See your local Murray distributor for parts and service.

$261.99

$

Usually ships in 2-12 days

0

4

Murray 403087

Spindle Asm., LH
(Superseded to 705151)

Note: See your local Murray distributor for parts and service.

$101.99

$

Usually ships in 2-12 days

0

5

Murray 403088

Spindle Asm., RH
(Superseded to 705152)

Note: See your local Murray distributor for parts and service.

$69.99

$

In Stock, only 1 left!

0

6

Murray 6266H

Washer, Thrust .75 x 1.230
(Superseded to 705006)

Note: See your local Murray distributor for parts and service.

$18.99

$

In Stock, only 1 left!

0

7

Murray 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 709030)

Note: See your local Murray distributor for parts and service.

$7.99

$

Usually ships in 2-12 days

0

8

Murray 12000029

Ring, Clip #T5304-75
(Superseded to 705319)

Note: See your local Murray distributor for parts and service.

$6.49

$

In Stock, only 2 left!

0

9

Murray 121232X

Cap, Spindle
(Superseded to 709026)

Note: See your local Murray distributor for parts and service.

$6.99

$

Usually ships in 2-12 days

0

13

Murray 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 704996)

Note: See your local Murray distributor for parts and service.

$7.99

$

In Stock, Qty 11

0

14

Murray 10040600

Washer Lock 3/8
(Superseded to 709003)

Note: See your local Murray distributor for parts and service.

$4.49

$

Usually ships in 2-12 days

0

15

Murray 73540600

Nut, Crown Lock 3/8-24 unf
(Superseded to 709429)

Note: See your local Murray distributor for parts and service.

$2.99

$

Usually ships in 2-12 days

0

16

Murray 408219

Shaft Steering
(Superseded to 708390)

Note: See your local Murray distributor for parts and service.

$48.99

$

Usually ships in 2-12 days

0

19

Murray 194729

Plate Steering
(Superseded to 705081)

Note: See your local Murray distributor for parts and service.

$36.99

$

In Stock, only 1 left!

0

20

Murray 199743X428

Boot, Steering
(Superseded to 708644)

Note: See your local Murray distributor for parts and service.

$14.99

$

Usually ships in 2-12 days

0

21

Murray 186737

Adapter, Wheel Steering
(Superseded to 705047)

Note: See your local Murray distributor for parts and service.

$

$

Not available

22

Murray 194845

Bushing, Strg. Blk

Note: See your local Murray distributor for parts and service.

$

$

Not available

26

Murray 414854X428

Insert, Wheel Steering
(Superseded to 705242)

Note: See your local Murray distributor for parts and service.

$10.99

$

Usually ships in 2-12 days

0

28

Murray 17000612

Screw 3/8-16 x 3/4
(Superseded to 709148)

Note: See your local Murray distributor for parts and service.

$7.49

$

In Stock, only 1 left!

0

35

Murray 194732

Gear, Sector Plate

Note: See your local Murray distributor for parts and service.

$31.99

$

In Stock, Qty 20+

0

45

Murray 19183812

Washer 9/16 x 2-3/8
(Superseded to 708480)

Note: See your local Murray distributor for parts and service.

$10.99

$

Usually ships in 2-12 days

0

51

Murray 73940800

Nut Hex Jam Toplock 1/2-20 unf
(Superseded to 705357)

Note: See your local Murray distributor for parts and service.

$6.99

$

Usually ships in 2-12 days

0

53

Murray 188967

Washer Hardened .793 x 1.637 x .060
(Superseded to 709218)

Note: See your local Murray distributor for parts and service.

$4.49

$

Usually ships in 2-12 days

0

57

Murray 197246

Bracket Upstop
(Superseded to 708294)

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

58

Murray 194747

Bolt Shoulder Sector Pivot CFM

Note: See your local Murray distributor for parts and service.

$8.99

$

In Stock, Qty 14

0

59

Murray 194748

Washer Thrust Sector Steering
(Superseded to 705087)

Note: See your local Murray distributor for parts and service.

$9.99

$

In Stock, only 1 left!

0

60

Murray 73971000

Nut Flange Lock 5/8-11
(Superseded to 708497)

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

61

Murray 194740

Draglink, LH

Note: See your local Murray distributor for parts and service.

$

$

Not available

62

Murray 194741

Draglink, RH

Note: See your local Murray distributor for parts and service.

$

$

Not available

63

Murray 17000512

Screw 5/16-18 x 3/4
(Superseded to 709742)

Note: See your local Murray distributor for parts and service.

$8.99

$

Usually ships in 2-12 days

0

64

Murray 199849

Retainer Clip Spring Steering
(Superseded to 705132)

Note: See your local Murray distributor for parts and service.

$8.99

$

Usually ships in 2-12 days

0

66

Murray 71020748

Bolt Hex Fghd 7/16-14 x 3 Serr
(Superseded to 708481)

Note: See your local Murray distributor for parts and service.

$9.49

$

Usually ships in 2-12 days

0

67

Murray 194737

Bushing PM Front Axle
(Superseded to 705083)

Note: See your local Murray distributor for parts and service.

$12.99

$

In Stock, only 2 left!

0

68

Murray 73900700

Nut Lock Flange 7/16-14 Gr. 5
(Superseded to 705354)

Note: See your local Murray distributor for parts and service.

$6.49

$

Usually ships in 2-12 days

0

69

Murray 199162

Washer 1.5 x .505 x .118
(Superseded to 705125)

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

70

Murray 196197

Bracket Deck Susp. Front
(Superseded to 705097)

Note: See your local Murray distributor for parts and service.

$18.99

$

Usually ships in 2-12 days

0
