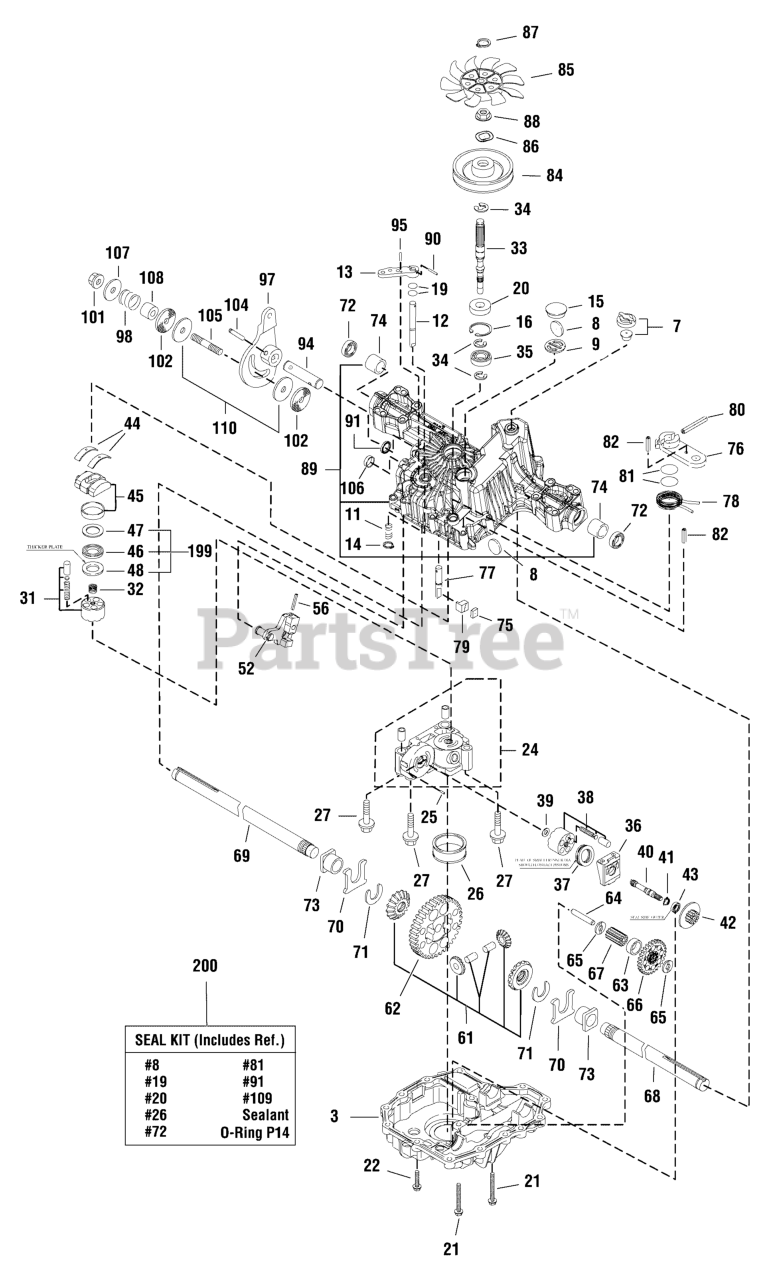

48L22AH0X8A (96042007601) - Murray 48" Lawn Tractor, 22hp (2010) - Transmission - Service Parts (K46BA) Parts Diagram

48" Lawn Tractor, 22hp

- Transmission - Service Parts (K46BA) Parts Diagram

  • Title

1

*TRANSMISSION, Tuff Torq K46BA

$

$

Not available

3

*LOWER HOUSING

$

$

Not available

7

Murray 1718052SM

VENT VALVE

$26.99

$

Usually ships in 2-12 days

0

8

Murray 1724279SM

MAGNET

$5.49

$

Usually ships in 2-12 days

0

9

*HOLDER, Magnet

$

$

Not available

11

*SPRING

$

$

Not available

12

Murray 1724281SM

SHAFT, Bypass

$42.99

$

Usually ships in 2-12 days

0

13

Murray 1720418SM

LEVER

$14.99

$

Usually ships in 2-12 days

0

14

Murray 1718061SM

RING

$

$

Not available

15

Murray 1724282SM

SEALING CAP
(Superseded to 1760090YP)

$15.99

$

In Stock, only 2 left!

0

16

Murray 1708650SM

RING, Snap

$4.99

$

Usually ships in 2-12 days

0

19

Murray 1708691SM

O-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

20

Murray 1708651SM

SEAL
(Superseded to 7073794YP)

$23.99

$

In Stock, only 1 left!

0

21

Murray 1707789SM

SCREW, Tapping

$6.99

$

Usually ships in 2-12 days

0

22

*SCREW, Tapping

$

$

Not available

24

*CENTER CASE

$

$

Not available

25

Murray 1718070SM

PIN

$2.99

$

Usually ships in 2-12 days

0

26

Murray 1718071SM

FILTER
(Superseded to 1724954SM)

$31.99

$

In Stock, only 1 left!

0

27

Murray 1720805SM

BOLT

$6.99

$

Usually ships in 2-12 days

0

31

Murray 1718079SM

CYLINDER BLOCK

$535.99

$

Usually ships in 2-12 days

0

32

Murray 1724290SM

SPRING, Pump

$3.49

$

Usually ships in 2-12 days

0

33

Murray 1732910YP

PUMP SHAFT

$

$

Not available

34

Murray 1718076SM

RING

$4.49

$

Usually ships in 2-12 days

0

35

Murray 1708673SM

BEARING

$24.99

$

Usually ships in 2-12 days

0

36

Murray 1718077SM

HOUSING

$45.99

$

Usually ships in 2-12 days

0

37

Murray 1718078SM

BEARING

$68.99

$

Usually ships in 2-12 days

0

38

Murray 1725831SM

CYLINDER BLOCK

$110.99

$

Usually ships in 2-12 days

0

39

Murray 1718084SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

40

Murray 1724293SM

SHAFT MOTOR

$47.99

$

Usually ships in 2-12 days

0

41

Murray 1708672SM

RING, Snap

$5.49

$

Usually ships in 2-12 days

0

42

Murray 1724294SM

MOTOR GEAR

$20.99

$

Usually ships in 2-12 days

0

43

Murray 1718083SM

BEARING
(Superseded to 7073792YP)

$64.99

$

In Stock, only 1 left!

0

44

Murray 1718089SM

THRUST METAL

$16.99

$

Usually ships in 2-12 days

0

45

Murray 1720426SM

SWASH PLATE

$

$

Not available

46

Murray 1718086SM

BEARING

$35.99

$

Usually ships in 2-12 days

0

47

Murray 1718087SM

THRUST PLATE

$36.99

$

Usually ships in 2-12 days

0

48

Murray 1718088SM

THRUST PLATE

$24.99

$

Usually ships in 2-12 days

0

52

*CONTROL ARM

$

$

Not available

56

Murray 1724296SM

SPRING PIN

$4.99

$

In Stock, only 1 left!

0

61

Murray 1724297SM

DIFFERNIAL PINION

$90.99

$

Usually ships in 2-12 days

0

62

*FINAL GEAR

$

$

Not available

63

*COLLAR, Final

$

$

Not available

64

*REDUCTION SHAFT

$

$

Not available

65

Murray 1724948SM

WASHER

$5.49

$

Usually ships in 2-12 days

0

66

Murray 1724301SM

REDUCTION GEAR

$33.99

$

Usually ships in 2-12 days

0

67

*FINAL PINION

$

$

Not available

68

Murray 1724303SM

AXLE SHAFT

$102.99

$

Usually ships in 2-12 days

0

69

Murray 1724304SM

AXLE SHAFT R

$102.99

$

Usually ships in 2-12 days

0

70

Murray 1718112SM

THRUST WASHER

$18.99

$

Usually ships in 2-12 days

0

71

Murray 1718113SM

RING

$5.99

$

Usually ships in 2-12 days

0

72

Murray 1718111SM

SEAL
(Superseded to 84002383)

$15.99

$

In Stock, only 3 left!

0

73

Murray 1718110SM

BUSHING

$8.99

$

Usually ships in 2-12 days

0

74

*BUSHING

$

$

Not available

75

Murray 1724305SM

SHOE, Brake

$5.49

$

In Stock, only 1 left!

0

76

Murray 1724306SM

ARM, Brake

$11.99

$

Usually ships in 2-12 days

0

77

*SHAFT, Brake

$

$

Not available

78

Murray 1724308SM

RETURN SPRING

$

$

Not available

79

Murray 1724309SM

ACTUATOR, Brake

$4.99

$

Usually ships in 2-12 days

0

80

Murray 1724310SM

PIN

$2.49

$

Usually ships in 2-12 days

0

81

Murray 1708690SM

O RING
(Superseded to 7073763YP)

$6.49

$

In Stock, only 1 left!

0

82

Murray 1724311SM

PIN, Spring

$3.99

$

Usually ships in 2-12 days

0

84

Murray 1724313SM

PULLEY

$54.99

$

In Stock, only 2 left!

0

85

Murray 1724314SM

FAN
(Superseded to 7073753YP)

$53.99

$

In Stock, only 2 left!

0

86

Murray 1724315SM

LOCKWASHER

$4.49

$

In Stock, only 3 left!

0

87

Murray 1724316SM

SNAP RING

$4.99

$

In Stock, Qty 13

0

88

*COLLAR, Spline

$

$

Not available

89

*UPPER HOUSING

$

$

Not available

90

Murray 1707839SM

SPRING PIN

$3.49

$

Usually ships in 2-12 days

0

91

Murray 1724318SM

OIL SEAL

$

$

Not available

94

*CONTROL SHAFT

$

$

Not available

95

Murray 1707839SM

PIN

$3.49

$

Usually ships in 2-12 days

0

97

*CONTROL LEVER

$

$

Not available

98

Murray 1720430SM

SPRING, Friction

$5.99

$

Usually ships in 2-12 days

0

99

Murray 1708649SM

WASHER, Seal

$6.49

$

Usually ships in 2-12 days

0

100

*SCREW, Cap

$

$

Not available

101

Murray 1720437SM

LOCK NUT

$3.49

$

Usually ships in 2-12 days

0

102

Murray 1720432SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

104

Murray 1718100SM

PIN, Roll
(Superseded to 1960588SM)

$4.49

$

Usually ships in 2-12 days

0

105

Murray 1720422SM

STUD BOLT

$4.49

$

Usually ships in 2-12 days

0

106

Murray 1720427SM

PLUG

$6.99

$

Usually ships in 2-12 days

0

107

Murray 1720431SM

WASHER

$

$

Not available

108

Murray 1720429SM

COLLAR

$2.49

$

Usually ships in 2-12 days

0

110

Murray 1724320SM

FRICTION PLATE

$8.49

$

Usually ships in 2-12 days

0

199

*BEARING

$

$

Not available

200

Murray 1727541YP

*K46 SEAL KIT (All Models)

$152.99

$

In Stock, only 1 left!

0

201

*Repair Kit

$

$

Not available
