5000/72 (5900203) - Ferris 72" Mower Deck (SN: 1209 & Below) 72" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

72" Mower Deck

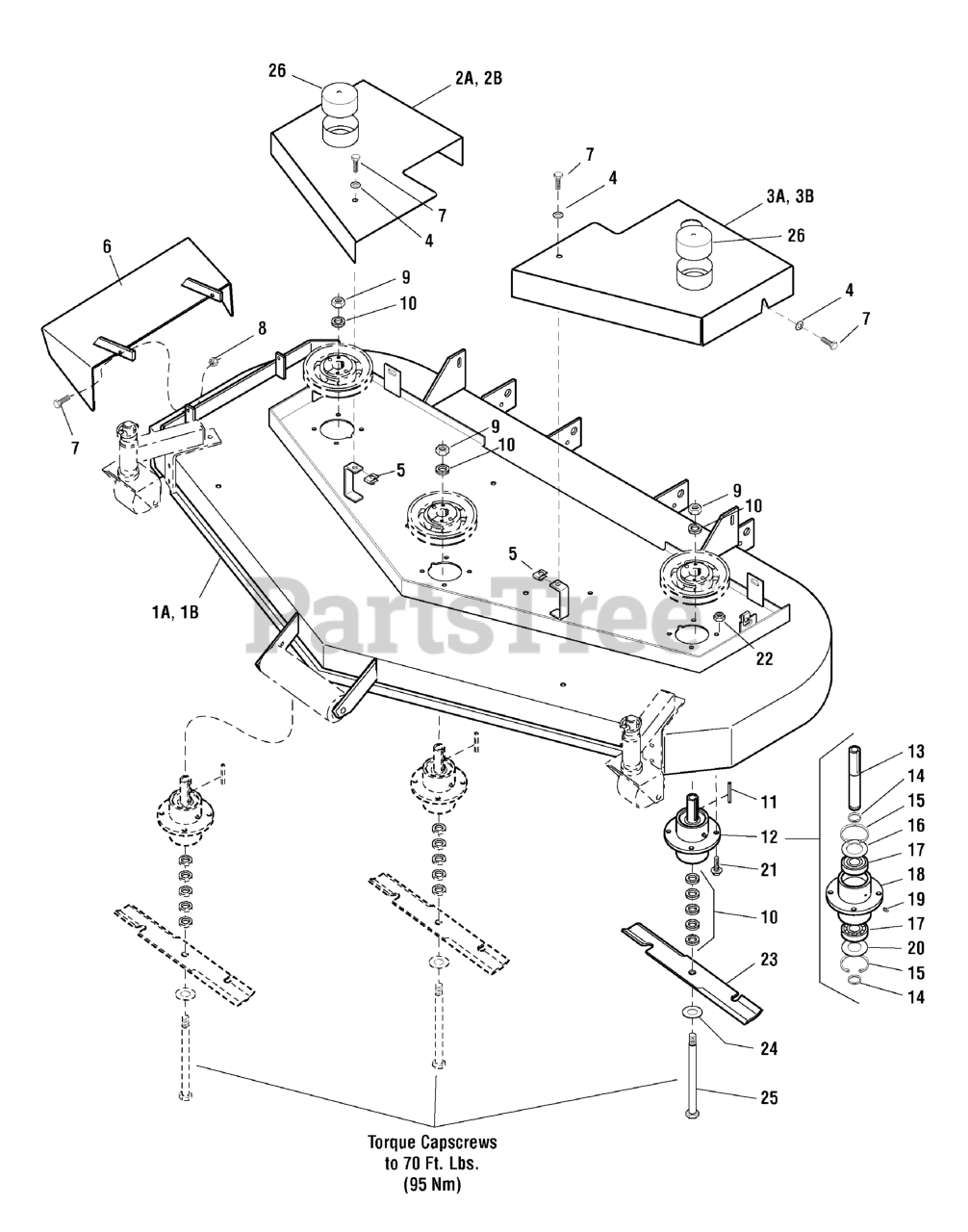

72" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1A

Ferris 5047400B

DECK SHELL W/DECALS, 72" (see footnote)

Note: (S/N: 484 & below)

$

$

Currently unavailable

1B

Ferris 5648518

DECK SHELL W/DECALS, 72"

Note: (Includes safety decals, S/N: 485 & above)

$2279.99

$

Usually ships in 2-12 days

0

2A

Ferris 5047560B

SPINDLE COVER-RH
(Superseded to 5047560BFS)

Note: (S/N: 484 & below)

$163.99

$

Usually ships in 2-12 days

0

2B

Ferris 5048525B

DECK SHIELD - RH

Note: (S/N: 485 & above)

$159.99

$

Usually ships in 2-12 days

0

3A

Ferris 5047559B

SPINDLE COVER-LH
(Superseded to 5047559BFS)

Note: (S/N: 484 & below)

$160.99

$

Usually ships in 2-12 days

0

3B

Ferris 5048524B

DECK SHIELD - LH

Note: (S/N: 485 & above)

$153.99

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

6

Ferris 5047233B

DISCHARGE CHUTE
(Superseded to 5047233BFS)

$148.99

$

Usually ships in 2-12 days

0

7

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

11

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

12

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

13

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

14

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

18

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

19

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5023157

BOLT, Flange Head, 5/16-18 x 1-1/2
(Superseded to 5023157SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5022476S

BLADE, 25" (SET OF THREE)

$113.99

$

Usually ships in 2-12 days

0

24

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

25

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

26

Ferris 5021674

VINYL CAP
(Superseded to 5021674FS)

$7.49

$

Usually ships in 2-12 days

0
