504 (590-504-100) - Cub Cadet Sit Down Sulky Counter Weight Parts Diagram

Sit Down Sulky

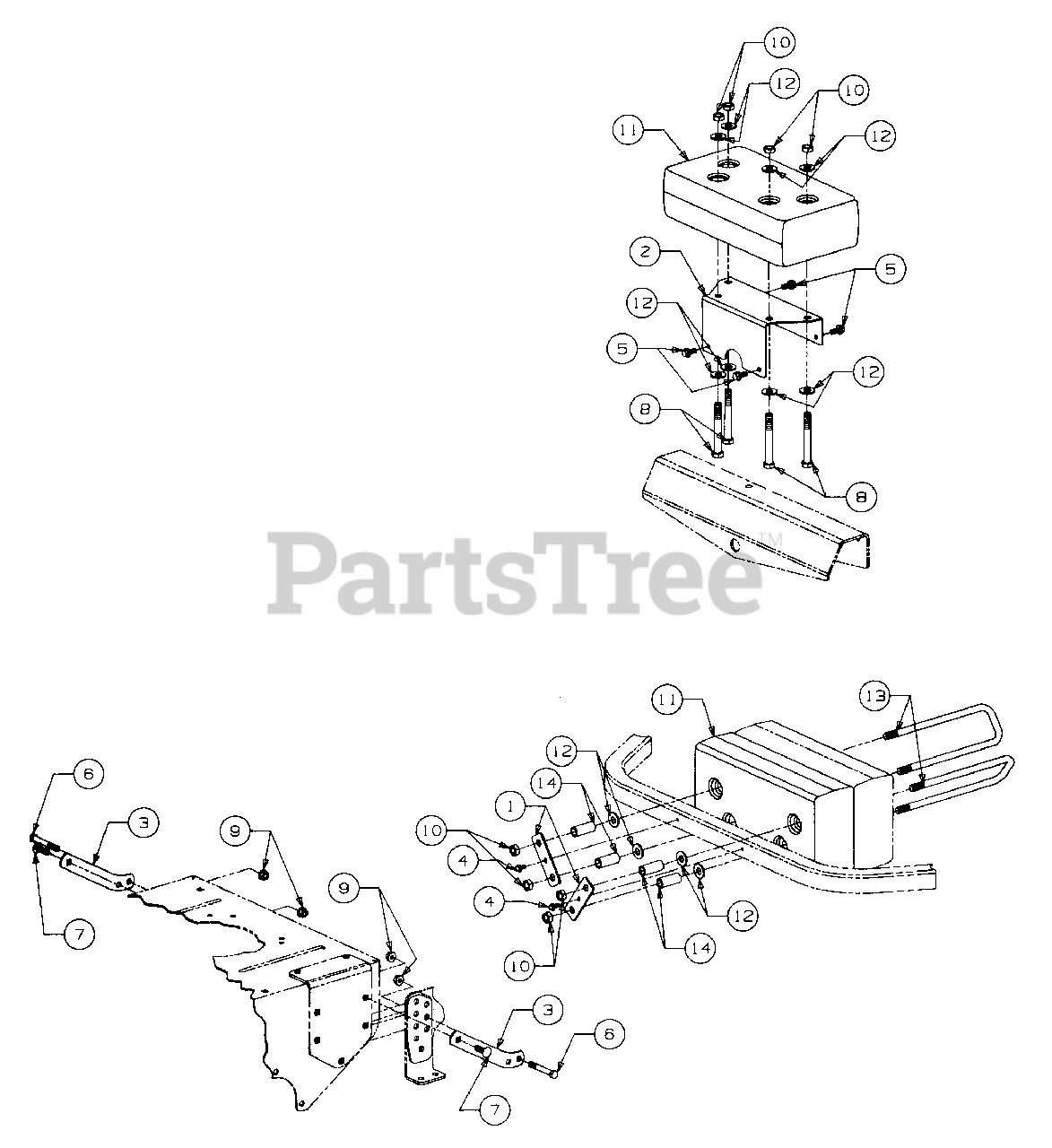

Counter Weight Parts Diagram

  • Title

1

Cub Cadet 703-2588

Plate, Weight Mtg

Variations

Cub Cadet 703-2588-0637

PLATE-WEIGHT MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-2717

Bracket, Weight Mtg

$

$

Not available

3

Cub Cadet 703-2822

Strap, Cradle Reinforcement

$

$

Not available

4

Cub Cadet 710-0599

Screw, Hex Wash TT-Tap, 1/4-20 X .50 Lg

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260

Screw, Hex Wash TPTT, 5/16-18 X .75 Lg
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2.7 Lg GR5

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 7

0

8

Cub Cadet 710-3160

Screw, Hex Cap, 1/2-20 X 4.0 Lg GR5

$

$

Not available

9

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3059

Nut, Hex Top Lock Jam, 1/2-20 GR5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 723-0367

Weight, Counter, 38 Lbs

$

$

Not available

12

Cub Cadet 736-3087

Washer, Flat, .515 X 1.12 X .100 Thk Hdn

$

$

Not available

13

Cub Cadet 747-3246

U-Bolt, Weight Mtg

$

$

Not available

14

Cub Cadet 750-3146

Spacer, .505 ID X .750 OD X 1.75 Lg

$

$

Not available
