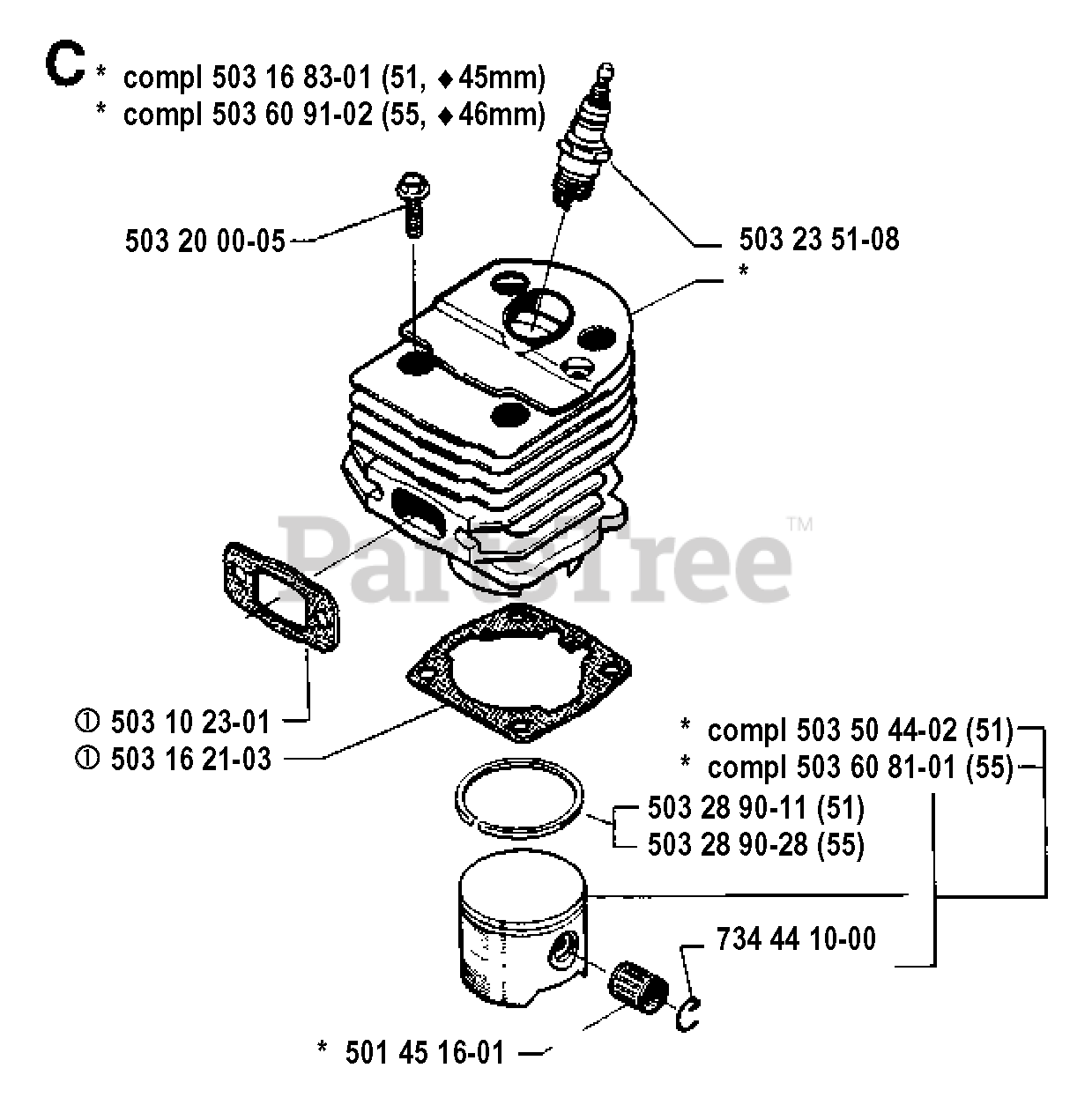

CYLINDER PISTON Parts Diagram

  • Title

501 45 16-01

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 4 left!

0

503 16 83-01

Husqvarna 503168301

CYLINDER CPL
(Superseded to 503924171)

Note: 51, 45MM

$327.99

$

In Stock, only 2 left!

0

503 16 21-03

Husqvarna 503162103

GASKET

$8.99

$

In Stock, only 1 left!

0

503 60 91-02

Husqvarna 503609102

CYLINDER W/PISTON 55
(Superseded to 503609171)

Note: 55, 46MM

$327.99

$

In Stock, only 2 left!

0

503 28 90-11

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

Note: 51

$31.99

$

In Stock, only 3 left!

0

503 60 81-01

Husqvarna 503608101

PISTON 55
(Superseded to 503608171)

Note: 55

$146.99

$

In Stock, Qty 6

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

503 10 23-01

Husqvarna 503102301

GASKET

$8.99

$

Usually ships in 3-10 days

0

503 50 44-02

Husqvarna 503504402

PISTON
(Superseded to 503167701)

Note: 51

$108.46

$

Usually ships in 3-10 days

0

503 28 90-28

Husqvarna 503289028

PISTON RING
(Superseded to 503289014)

Note: 55

$31.99

$

In Stock, only 3 left!

0

734 44 10-00

Husqvarna 734441000

$

$

Currently unavailable

503 20 00-05

Husqvarna 503200005

SCREW M6SF 5X25
(Superseded to 503215325)

$5.99

$

In Stock, Qty 9

0
