51 - Husqvarna Chainsaw (SN: 19942300001 - 19982300000) CHAIN BRAKE Parts Diagram

Chainsaw

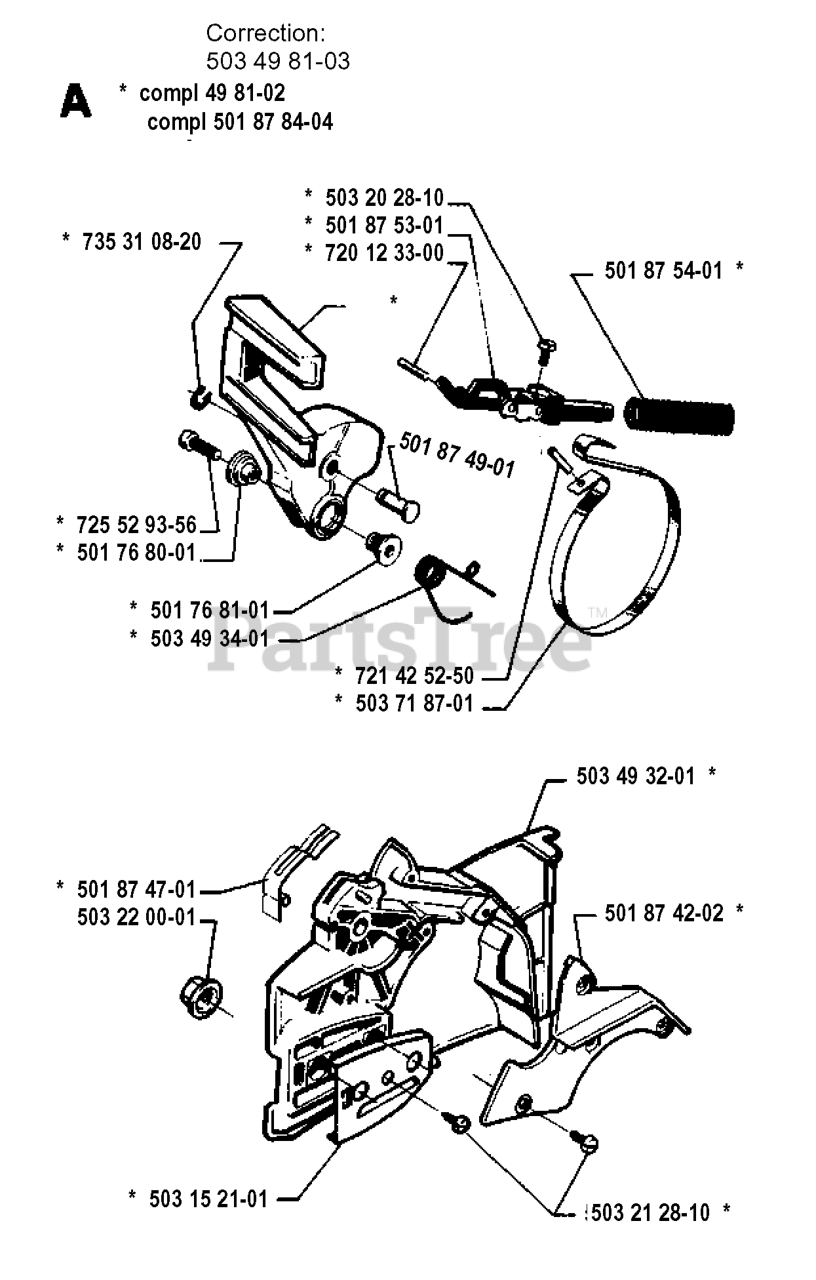

CHAIN BRAKE Parts Diagram

  • Title

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$9.49

$

In Stock, only 1 left!

0

501 87 42-02

Husqvarna 501874202

COVER

$

$

Not available

503 15 21-01

Husqvarna 503152101

COVERING PLATE

$

$

Not available

501 76 81-01

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501 87 84-04

Husqvarna 501878404

HANDGUARD
(Superseded to 503892701)

$62.99

$

In Stock, only 1 left!

0

49 81-02

Husqvarna 498102

NEEDS DESCRIPTION

$

$

Currently unavailable

503 21 28-10

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

720 12 33-00

Husqvarna 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

501 87 54-01

Husqvarna 501875401

SPRING

$

$

Not available

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

503 20 28-10

Husqvarna 503202810

$

$

Currently unavailable

503 71 87-01

Husqvarna 503718701

BRAKE BAND

$17.99

$

In Stock, only 3 left!

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, Qty 5

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

503 49 81-03

Husqvarna 503498103

CHAINBRAKE

Note: CORRECTION

$121.99

$

In Stock, only 3 left!

0

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501 87 47-01

Husqvarna 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

503 49 32-01

Husqvarna 503493201

CLUTCH COVER

$

$

Not available
