511-059N400 - MTD Walk-Behind Mower (1991) 36" Parts Diagram

Walk-Behind Mower

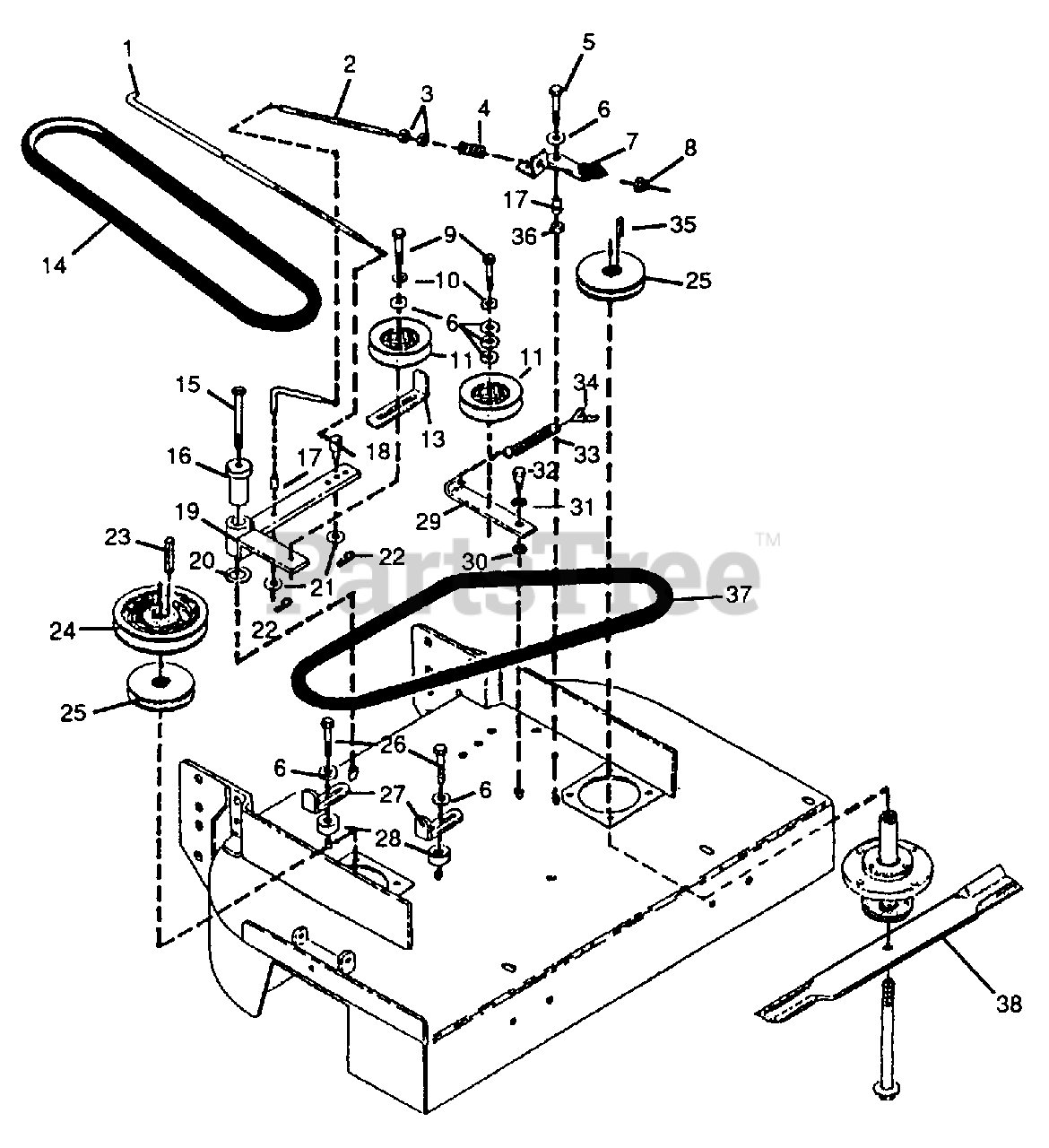

36" Parts Diagram

  • Title

1

MTD BN-PL0764

Rod, Blade Engagement

$

$

Currently unavailable

2

MTD BN-PL4760

Rod, Brade Brake

$

$

Currently unavailable

3

MTD BN-Z30003

5/16 -18 Flange Nut

$

$

Not available

4

MTD BN-PL8058

Spring

$

$

Not available

5

MTD BN-Z24014

3/8 -16 x 2 Hex. Hd. Cap Screw
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

6

MTD BN-Z34004

3/8- FlatWasher

$

$

Currently unavailable

7

MTD BN-PL4729A

Brake LeverAssembly

$

$

Currently unavailable

8

MTD BN-Z70003

5/16 -18 Flex Lock Nut
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

9

MTD BN-Z24010

3/8 -16 x 1-1/2' Hex. Hd. Cap Screw
(Superseded to 710-0344)

$5.99

$

In Stock, only 1 left!

0

10

MTD BN-Z37004

3/8- Spring Lock Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

MTD BN-PL0786

Idler Pulley W/Bushing

$

$

Currently unavailable

13

MTD BN-PL0779

Beltguide

$

$

Not available

14

MTD BN-PL4733

Belt, Engine - Blade

$

$

Currently unavailable

15

MTD BN-Z24022

3/8' -16 x 3- Hex. Hd. Cap Screw

$

$

Not available

16

MTD BN-PL0769

Pivot Bushing

$

$

Currently unavailable

17

MTD BN-PL0379

Spacer

$

$

Not available

18

MTD BN-PL0355

Swivel

$

$

Not available

19

MTD BN-PL0767A

Idler Arm

$

$

Currently unavailable

20

MTD BN-Z35014

1" Machinery Bushing

$

$

Currently unavailable

21

MTD BN-Z34003

5/16 Flat Washer

$

$

Currently unavailable

22

MTD BN-Z49001

#13 Hair Pin

$

$

Currently unavailable

23

MTD BN-PL1196

Key

$

$

Currently unavailable

24

MTD BN-PL0820

Pulley

$

$

Not available

25

MTD BN-PL0822

Pulley

$

$

Currently unavailable

26

MTD BN-Z24008

3/8 -16 x 1-1/4 Hex. Hd. Cap Screw
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

27

MTD BN-PL1125

Beltguide

$

$

Not available

28

MTD BN-PL0400

Spacer

$

$

Not available

29

MTD BN-PL4731

Idler Arm

$

$

Currently unavailable

30

MTD BN-PL5023

Snap Bushing

$

$

Not available

31

MTD BN-PL5031

Bellville Washer

$

$

Not available

32

MTD BN-PL5013

Shoulder Bolt

$

$

Not available

33

MTD BN-PL0031

Spring

$

$

Not available

34

MTD BN-PL0032

Clip

$

$

Currently unavailable

35

MTD BN-PL0596

Key

$

$

Not available

36

MTD BN-Z30004

3/8 -16 Flange Nut

$

$

Currently unavailable

37

MTD BN-PL0643

Belt, Blade- Blade

$

$

Currently unavailable

38

MTD BN-PL4206

18 Blade, High-Lift

$

$

Not available
