511-059N400 - MTD Walk-Behind Mower (1991) Handle Parts Diagram

Walk-Behind Mower

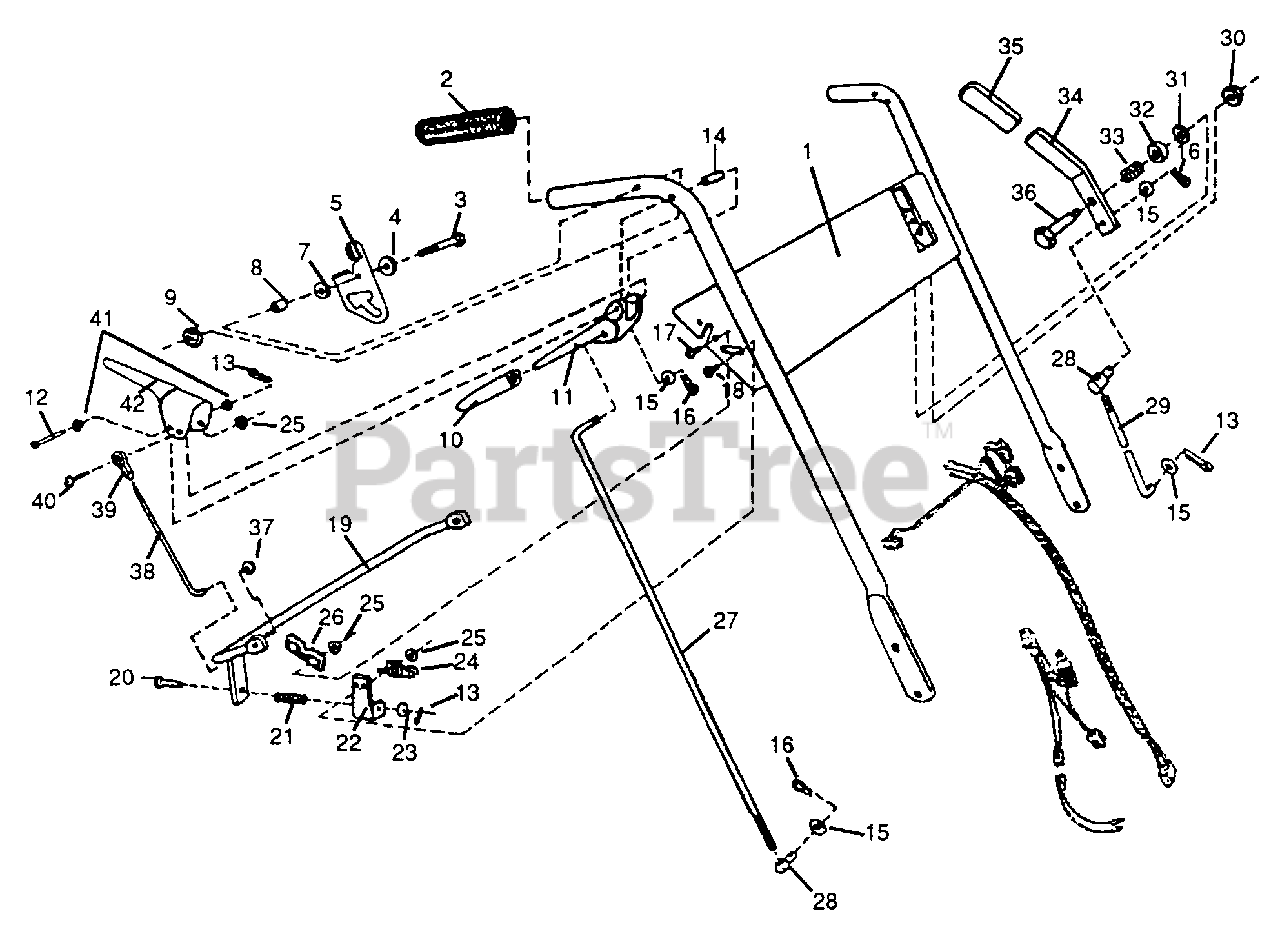

Handle Parts Diagram

  • Title

1

MTD BN-PL4721AW

Top Handle w/Decals

$

$

Not available

2

MTD BN-PL5029

Handle Grip

$

$

Currently unavailable

3

MTD BN-Z14014

1/4 - 20 x 2 Hex. Hd. Cap Screw
(Superseded to 710-0501)

$7.49

$

In Stock, only 1 left!

0

4

MTD BN-P0336

Bellville Washer

$

$

Currently unavailable

5

MTD BN-PL8678AR

Traction Thumb Lock, Right

$

$

Currently unavailable

MTD BN-PL8679AL

Traction Thumb Lock, Lett

$

$

Currently unavailable

7

MTD BN-Z34002

1/4 Flat Washer

$

$

Currently unavailable

8

MTD BN-PL5016

Spacer

$

$

Currently unavailable

9

MTD BN-Z71101

1/4 - 20 Lock Nut
(Superseded to 912-0291)

$

$

Not available

10

MTD BN-PL0459

Grip

$

$

Currently unavailable

11

MTD BN-PL4094

Traction Lever

$

$

Not available

12

MTD BN-PL5027

Clevis Pin

$

$

Not available

13

MTD BN-Z50001

Cotter Pin
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

14

MTD BN-Z47017

Roll Pin

$

$

Currently unavailable

15

MTD BN-Z34003

5/16' Flat Washer

$

$

Currently unavailable

16

MTD BN-Z49001

Hair pin

$

$

Currently unavailable

17

MTD BN-Z11002

10 - 24 x 1/2 Pan Hd. Mach. Saew

$

$

Currently unavailable

18

MTD BN-Z10003

10 - 24 x 5/8 Rd. Hd. Mach. Screw
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

19

MTD BN-PL4724W

Presence Bail

$

$

Currently unavailable

20

MTD BN-PL5027

Clevis Pin

$

$

Not available

21

MTD BN-PL5015

Spring

$

$

Not available

22

MTD BN-PL4753

Presence Spring Bracket

$

$

Currently unavailable

23

MTD BN-Z34001

3/16" Flat Washer

$

$

Not available

24

MTD BN-PL4518

Presence Switch

$

$

Currently unavailable

25

MTD BN-Z30001

10 - 24 Lock Washer & Nut

$

$

Not available

26

MTD BN-PL4751

Presence Bail Retainer

$

$

Not available

27

MTD BN-PL5038

Traction Rod

$

$

Currently unavailable

28

MTD BN-PL0355

Swivel

$

$

Not available

29

MTD BN-PJ5775

Blade Control Rod

$

$

Not available

30

MTD BN-Z30004

3/8' -16 Flange Nut

$

$

Currently unavailable

31

MTD BN-Z35006

1/2' Machine Bushing

$

$

Currently unavailable

32

MTD BN-PL5008

Spacer

$

$

Currently unavailable

33

MTD BN-PET078

Spring

$

$

Currently unavailable

34

MTD BN-PL4713

Blade Engagement Lever

$

$

Currently unavailable

35

MTD BN-PG771

Grip

$

$

Currently unavailable

36

MTD BN-PC007

Shoulder Bolt

$

$

Currently unavailable

37

MTD BN-PL4593

Push-On Fastener

$

$

Currently unavailable

38

MTD BN-PL4725

Link Rod

$

$

Not available

39

MTD BN-PL4592

Rod End

$

$

Not available

40

MTD BN-Z10003

#10 - 24 x 5/8' Rd. Hd. Mach Screw
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

41

MTD BN-PL5014

Bushing, Delrin

$

$

Currently unavailable

42

MTD BN-PL5004A

Presence Lever

$

$

Currently unavailable
