512 H (1692057) - AGCO Lawn Tractor, 12.5hp Linkage & Control Group Parts Diagram

Lawn Tractor, 12.5hp

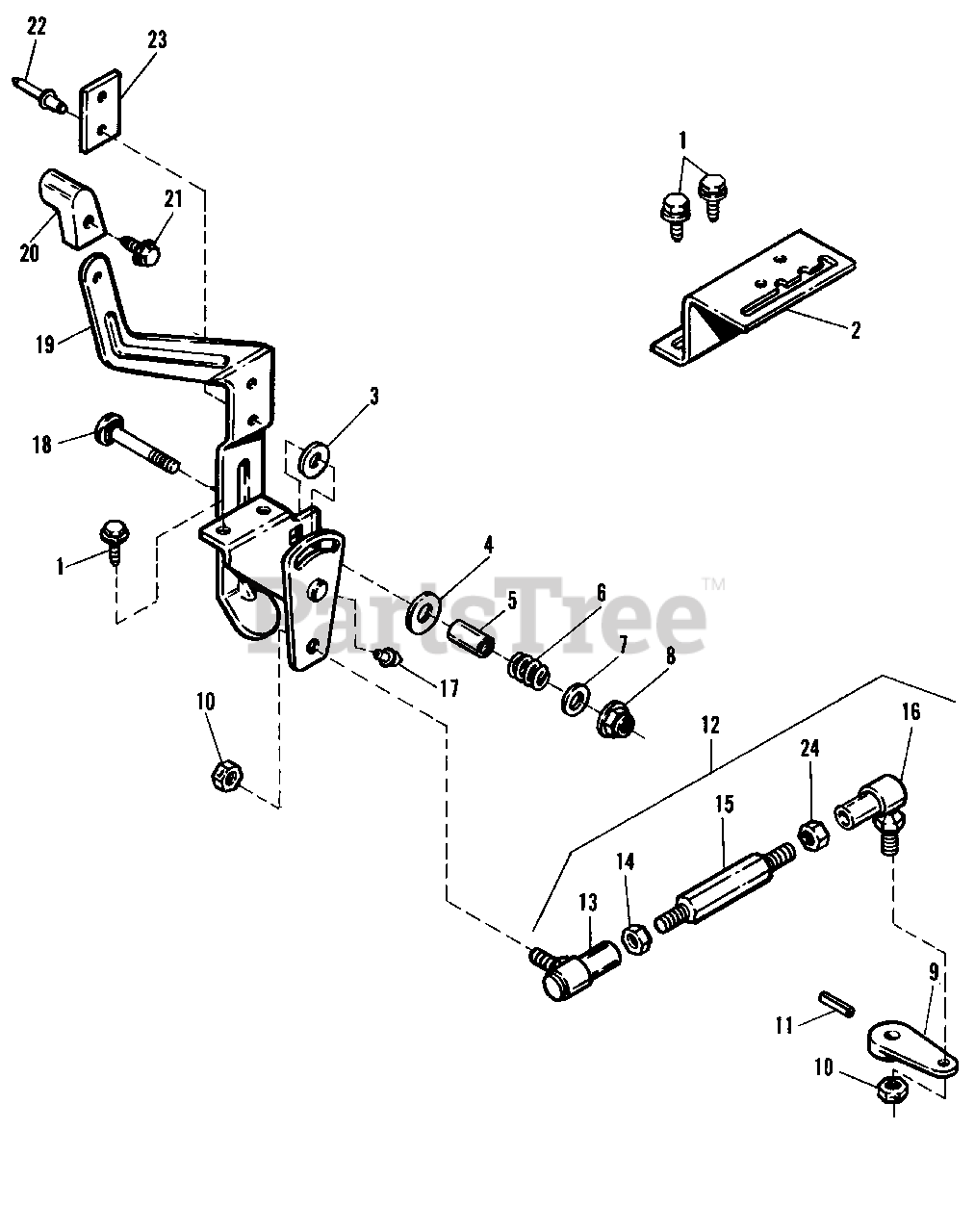

Linkage & Control Group Parts Diagram

  • Title

1

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1671009

QUADRANT

$

$

Not available

3

Simplicity 1960020SM

WASHER, 21/32 x 1-1/4 x 1/16

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1920283SM

WASHER, 11/32 x 1-1/2 x 7/64

$4.99

$

In Stock, Qty 6

0

5

Simplicity 1705871

SPACER

$

$

Not available

6

Simplicity 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

7

Simplicity 1919381SM

WASHER, 11/32 x 1
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

8

Simplicity 1919438SM

NUT, Hex Lock, Exna, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

9

Simplicity 1705813SM

ARM-CONTROL, Directional

$8.99

$

Usually ships in 2-12 days

0

10

Simplicity 1668927SM

NUT, Centerlock, 3/8-24

$6.49

$

In Stock, only 3 left!

0

11

Simplicity 960422

PIN, Spring, 5 mm x 45 mm

$

$

Not available

12

Simplicity 1705869

SPEED CONTROL BALL JOINT ASSY. (Incl. Ref. Nos. 13-16, 24)

$

$

Not available

13

Simplicity 1702231SM

BALL JOINT, L.H.

$

$

Not available

14

Simplicity 2818403

NUT, Jam, 3/8-24, R.H.

$

$

Not available

15

Simplicity 1705870SM

ADJUSTOR, Speed-Link

$

$

Not available

16

Simplicity 1669567SM

BALL JOINT, R.H.

$15.99

$

In Stock, only 4 left!

0

17

Simplicity 2821133SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1960417

CARRIAGE BOLT, 5/16-18 x 2-1/2

$

$

Not available

19

Simplicity 1705900

SUPPORT ASSY., Control (Incl. Ref. Nos. 17, 22 & 23)

$

$

Not available

20

Simplicity 2171165

KNOB

$

$

Not available

21

Simplicity 1960106SM

SCREW, Plastite, 1/4-20 x 1

$2.99

$

Usually ships in 2-12 days

0

22

Simplicity 2810542SM

RIVET, Tubular

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1672109

PLATE, Wear

$

$

Not available

24

Simplicity 960424

NUT, Jam, 3/8-24, L.H.

$

$

Not available
