51350 - Lawn-Boy 14" String Trimmer/Edger, Electric (SN: 210000001 - 210999999) (2001) HANDLE ASSEMBLY Parts Diagram

14" String Trimmer/Edger, Electric

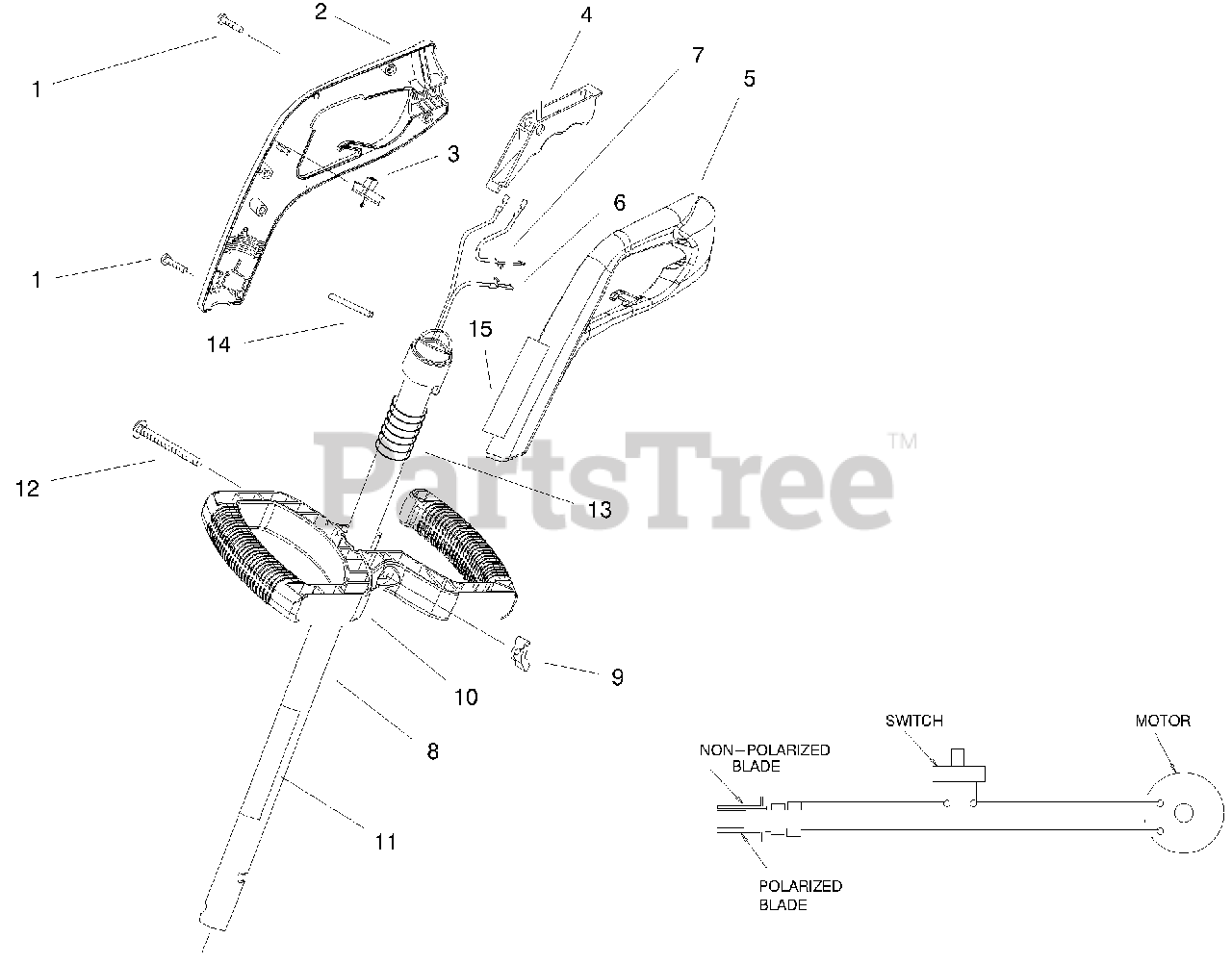

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 94-4496

Screw-PPH

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 100-1229

Handle-RH
(Superseded to 100-1236)

$

$

Not available

3

Lawn-Boy 73-5600

Switch

$

$

Not available

4

Lawn-Boy 73-8170

Trigger

$

$

Not available

5

Lawn-Boy 100-9787

Handle-LH
(Superseded to 100-1236)

$

$

Not available

6

Lawn-Boy 100-1237

Harness-Wire

$

$

Not available

7

Lawn-Boy 100-1240

Wire ASM-Jumper
(Superseded to 100-9747)

$

$

Not available

8

Lawn-Boy 100-1241

Tube ASM

$

$

Not available

9

Lawn-Boy 32103-30

Nut-Wing

$1.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 100-1231

Mid-Handle

$

$

Not available

11

Lawn-Boy 98-7184

Decal-Warning

$

$

Not available

12

Lawn-Boy 73-8740

Screw-CARR.

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-1242

Spring-Tube

$2.93

$

In Stock, only 2 left!

0

14

Lawn-Boy 100-1243

Pin-Handle

$

$

Not available

15

Lawn-Boy 100-1235

Decal-Information

$

$

Not available
