51545 (550 TBX) - Lawn-Boy Rake-O-Vac Blower Vacuum (SN: 009000001 - 009999999) (1989) BLOWER ASSEMBLY Parts Diagram

Rake-O-Vac Blower Vacuum

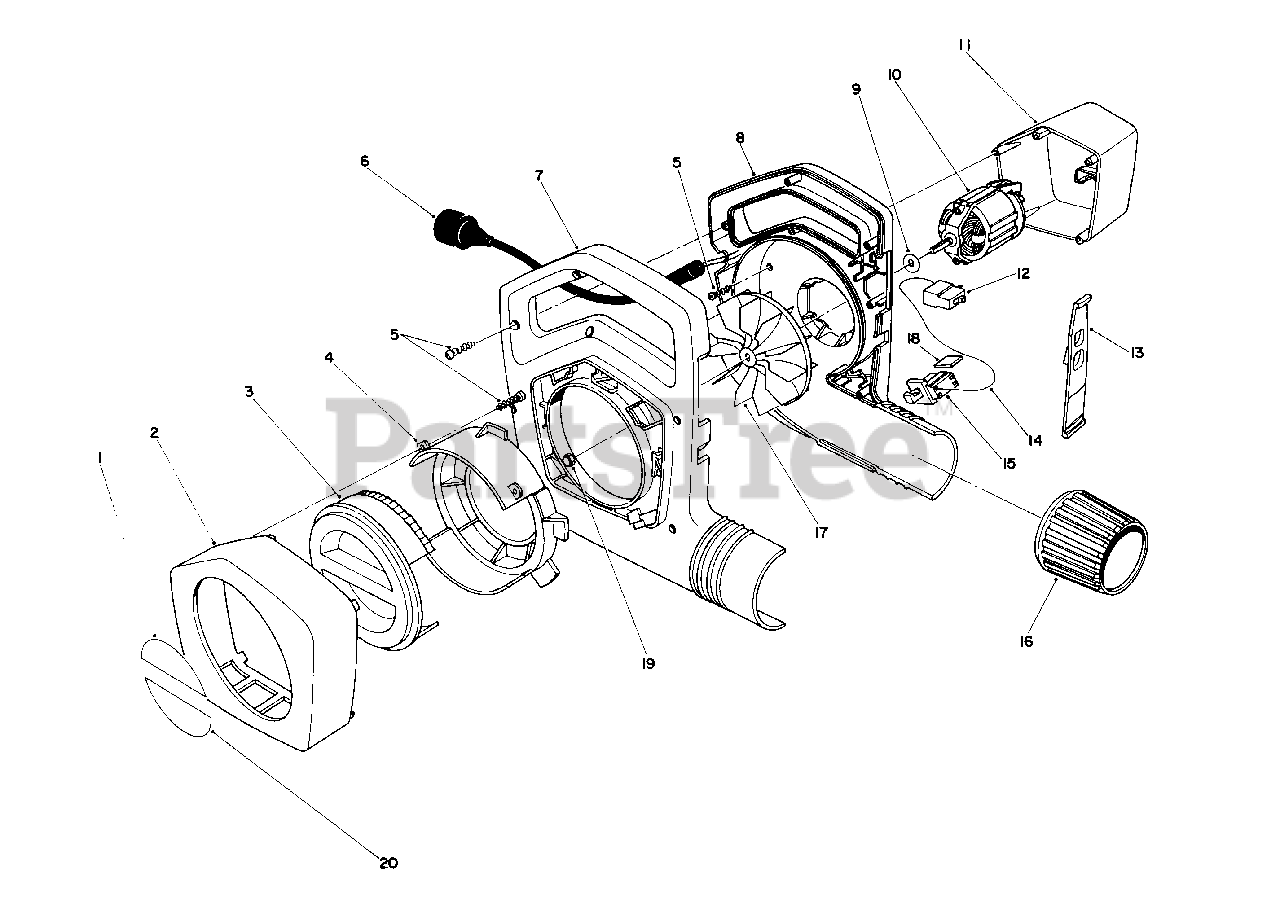

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 57-4290

Decal-Upper Choke (Model No. 51535)

$

$

Not available

1

Lawn-Boy 57-5830

Decal-Upper Choke (Model No.51545)

$

$

Not available

2

Lawn-Boy 57-1050

Ring-Trim
(Superseded to 57-1051)

$

$

Not available

3

Lawn-Boy 57-1020

Adjuster-Choke
(Superseded to 57-1021)

$

$

Not available

4

Lawn-Boy 57-1040

Ring-Tab

$

$

Not available

5

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 42-0772

Cord-Power Supply
(Superseded to 42-0778)

$

$

Not available

7

Lawn-Boy 60-9611

Housing Assembly-R.H.

$

$

Not available

8

Lawn-Boy 61-8430

Housing-L.H.
(Superseded to 61-8432)

$67.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 57-4270

Washer-Impeller (Used on Model No. 51545-9000001 thru 9033219)
(Superseded to 93-0585)

$1.49

$

In Stock, Qty 8

0

9

Lawn-Boy 57-4270

Washer-Impeller (Used on Model No. 51535-9000001 & up and Model 51545-9033220 & up)
(Superseded to 93-0585)

$1.49

$

In Stock, Qty 8

0

10

Lawn-Boy 57-5960

Motor (Used on Model 51545-9000001 thru 9033219)
(Superseded to 99-5394)

$

$

Not available

10

Lawn-Boy 57-5961

Motor (Used on Model 51535-9000001 & up and Model 51545-9033220 &up)

$332.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 57-1070

Cover Motor (Used on Model No. 51545-9000001 thru 903329)
(Superseded to 57-1074)

$31.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 57-1071

Cover Motor (Used on Model No. 51535-9000001 & up and Model 51545-903322 & up)

$

$

Not available

12

Lawn-Boy 57-5890

Switch-On/Off (Model No. 51535)
(Superseded to 73-5780)

$

$

Not available

12

Lawn-Boy 57-5900

Switch-Two Speed (Model 51545)

$

$

Not available

13

Lawn-Boy 57-5920

Cam-Switch-On/Off (Model 51535)
(Superseded to 57-5942)

$4.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 57-5940

Cam-Switch-Two Speed (Model 51545)
(Superseded to 57-5942)

$4.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 57-4280

Wire-Internal

$

$

Not available

15

Lawn-Boy 57-5910

Switch-Interlock

$17.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 57-3260

Collar-Output
(Superseded to 57-3261)

$

$

Not available

17

Lawn-Boy 57-3860

Impeller (Used on Model 51545-9000001 thru 9033219)
(Superseded to 57-3861)

$

$

Not available

17

Lawn-Boy 57-3861

Impeller (Used on Model 51535-9000001 & up and Model 51545-9033220 & up)

$

$

Not available

18

Lawn-Boy 64-8990

Plug-Dust

$

$

Not available

19

Lawn-Boy 32111-8

Nut-Cap

$3.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 57-4300

Decal-Lower Choke (Model 51535)

$

$

Not available

20

Lawn-Boy 57-5840

Decal-Lower Choke (Model 51545)

$

$

Not available
