51630 (1500) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) RECOIL STARTER ASSEMBLY Parts Diagram

String Trimmer

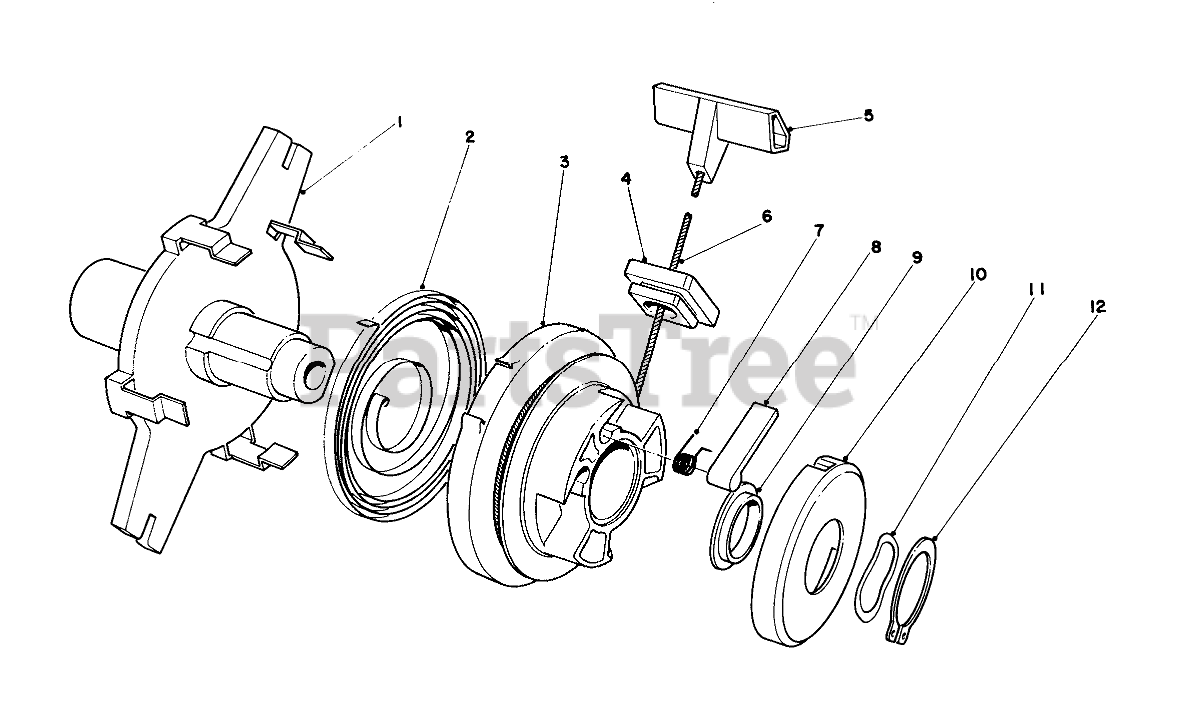

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

1

Plate-Starter Backing

$

$

Not available

3

Drum-Pawl Holder

$

$

Not available

4

Toro 45-1580

Bushing Rope

$

$

Not available

5

Toro 38-6570

Handle

$

$

Not available

6

Toro 45-1

590 Rope-Starter

$

$

Currently unavailable

7

Spring-Torsion

$

$

Not available

8

Pawl

$

$

Not available

9

Collar

$

$

Not available

10

Cover-Ratchet

$

$

Not available

11

Washer-Spring

$

$

Not available

12

RING-Retaining

$

$

Not available

Toro 45-0190

Recoil Starter Assembly Complete (Incl. Ref. 1-12)

Note: Not illustrated

$

$

Not available
