51932 A - Toro String Trimmer (SN: 230000001 - 999999999) Upper Shaft Parts Diagram

String Trimmer

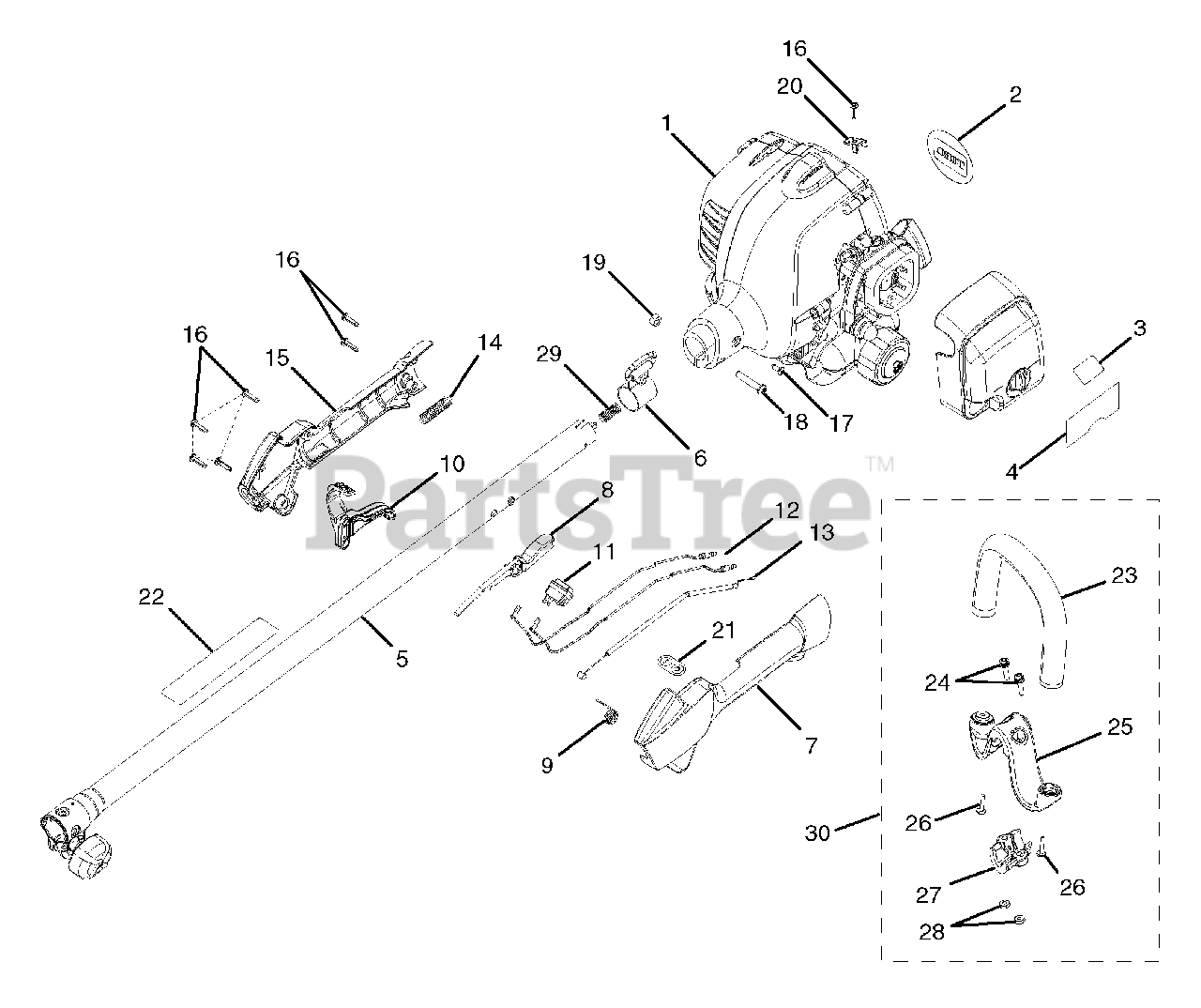

Upper Shaft Parts Diagram

  • Title

1

Homelite 0900106

Engine Assembly
(Superseded to 0900101)

$

$

Not available

2

Homelite 983646001

Logo Label

$

$

Not available

3

Homelite 983647001

Upper Start Label

$

$

Not available

4

Homelite 983648001

Lower Start Label

$

$

Not available

5

Homelite 985397001

Upper Shaft Assembly
(Superseded to 000998235)

$

$

Not available

6

Homelite 07255

Hanger Bracket

$

$

Not available

7

Homelite 983621001

Rear Handle Support

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 983623001

Lock-off Button

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 983624001

Trigger Spring
(Superseded to 690694002)

$1.49

$

In Stock, Qty 5

0

10

Homelite 983620001

Trigger

$

$

Not available

11

Homelite 984236002

Switch with Dust Shield

$

$

Not available

12

Homelite 983782001

Lead

$

$

Not available

13

Homelite 983635001

Cable, Throttle
(Superseded to 308225001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 983632003

Corrugated Tube

$

$

Not available

15

Homelite 983622001

Rear Handle Cover

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 983638009

Screw (M4x1.75x16 mm)
(Superseded to 660734001)

$1.49

$

In Stock, Qty 5

0

17

Homelite 968702007

Screw (#8-16 x1/2 in., Tri-lobular)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 983799023

Screw (M6x1x30 mm)
(Superseded to T660697001)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 983619015

Hex Nut
(Superseded to 678029002)

$1.49

$

In Stock, Qty 9

0

20

Homelite 985255001

Retaining Clip

$

$

Not available

21

Homelite 984240001

On/Off Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 984032001

Warning Label

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 984439001

Assist Handle w/grip

$10.99

$

Usually ships in 3-7 days

0

24

Homelite PS04159

12-24 x SEMS 1

$1.49

$

In Stock, only 3 left!

0

25

Homelite PS04070

M Clamp
(Superseded to 518038001)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 82620

Slotted Torx Screw

$1.49

$

In Stock, Qty 5

0

27

Homelite PS04072

Clamp

$2.99

$

In Stock, only 2 left!

0

28

Homelite 81068

12- 24 Hex nut

$

$

Not available

29

Homelite 984106001

Spring, Shaft
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

30

Homelite 983798001

Assist Handle Assembly

$

$

Not available

Homelite 983000115

Operator's Manual

$

$

Not available
