51958 (090309026) - Toro 17" Curved-Shaft String Trimmer, Revision 01 (SN: 317000001 - 317999999) (2017-06) Figure A Parts Diagram

17" Curved-Shaft String Trimmer, Revision 01

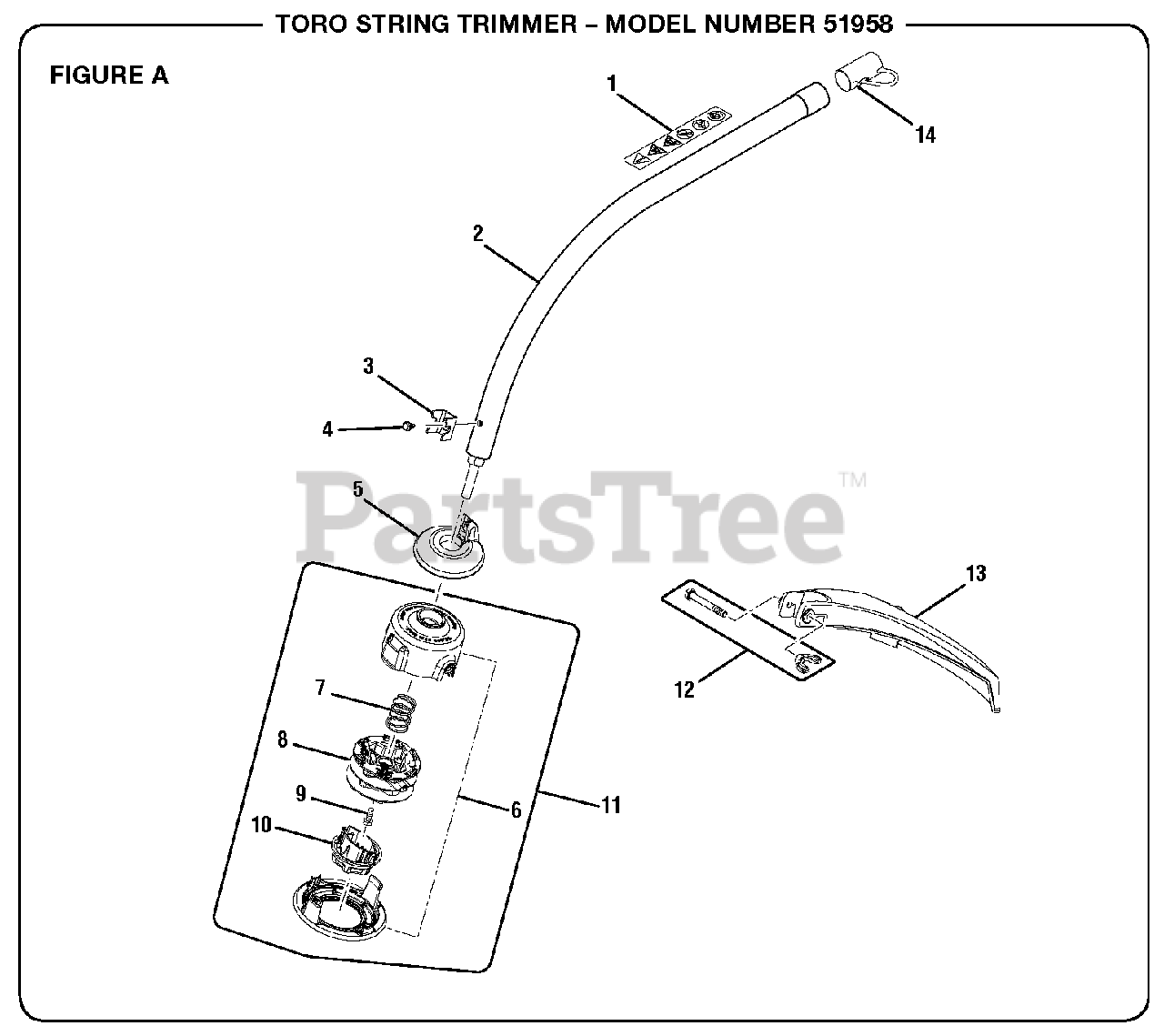

Figure A Parts Diagram

  • Title

1

Homelite 940657165

Warning Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308841018

Curved Shaft Assembly

Note: (Inc. Key Nos. 1, 3-4 and 14)

$22.99

$

Usually ships in 3-7 days

0

3

Homelite 638001001

Clamp

$1.49

$

In Stock, only 2 left!

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd.)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 522702001

Grass Shield

$1.49

$

In Stock, only 4 left!

0

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$7.99

$

In Stock, Qty 5

0

7

Homelite 678749001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

8

Homelite 308924001

Spool

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 309034006

Trimmer Head Assembly (.095)
(Superseded to 308923014)

Note: (Inc. Key Nos. 6-10)

$53.99

$

Usually ships in 3-7 days

0

12

Homelite 205012001

Fastener Parts Kit

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 308052010

Guard

Note: (Inc. Key No. 12)

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
