521 (31AE285-063) - Troy-Bilt Squall 21" Snow Thrower (2003) Drive Assembly Parts Diagram

Squall 21" Snow Thrower

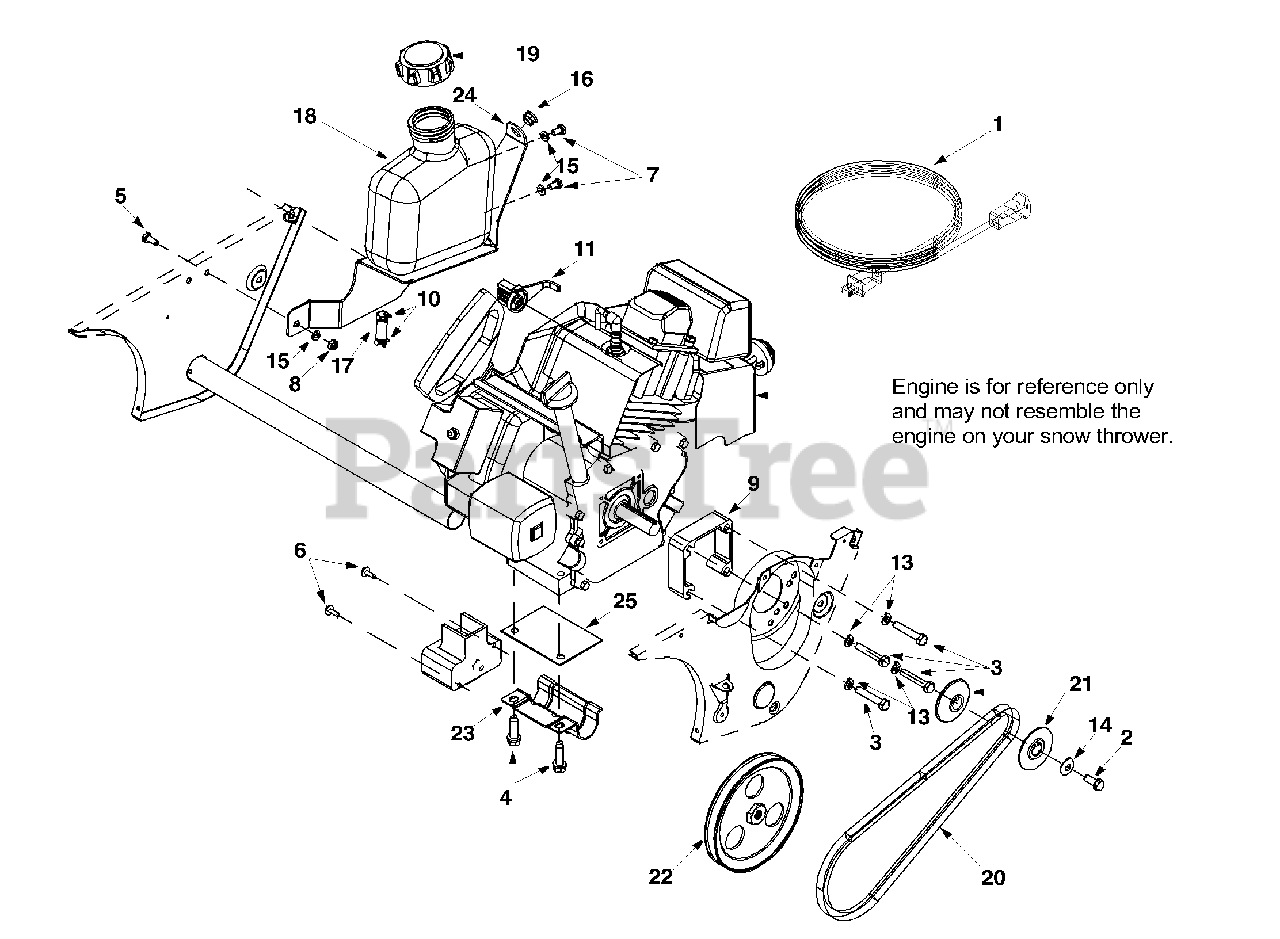

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0157

Hex Bolt 5/16-24 x 0.75"

$3.99

$

In Stock, Qty 16

0

3

Troy-Bilt 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0502A

TT Sems Screw

$6.49

$

In Stock, Qty 7

0

5

Troy-Bilt 710-0751

Hex Screw 1/4-20 x 0.620"

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1003

B Screw #10-16 x 0.625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-3013

Hex Screw 1/4-20 x 0.50"

$4.49

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 719-0581

Spacer

$

$

Not available

10

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 731-2825

Choke Knob

$15.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0242

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

16

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

18

MTD 751-0540A

Gas Tank

$

$

Not available

19

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 756-0475

Pulley

$74.99

$

Usually ships in 3-6 days

0

23

MTD 784-0322

Engine Mount

Variations

Troy-Bilt 784-0322-0637

MOUNT-ENGINE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

24

Troy-Bilt 784-0323

Support Bracket
(Superseded to 784-0323-0637)

Variations

Troy-Bilt 784-0323-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

25

Troy-Bilt 784-0374

Support Plate: Engine Mount
(Superseded to 784-0374-0637)

Variations

Troy-Bilt 784-0374-0637

PLATE-SUPPORT ENGI - POWDER BLACK (0637)

$

$

Not available

$

$
