521 (31AS2B5-766) - Troy-Bilt Squall 21" Snow Thrower (2005-2) Drive Assembly Parts Diagram

Squall 21" Snow Thrower

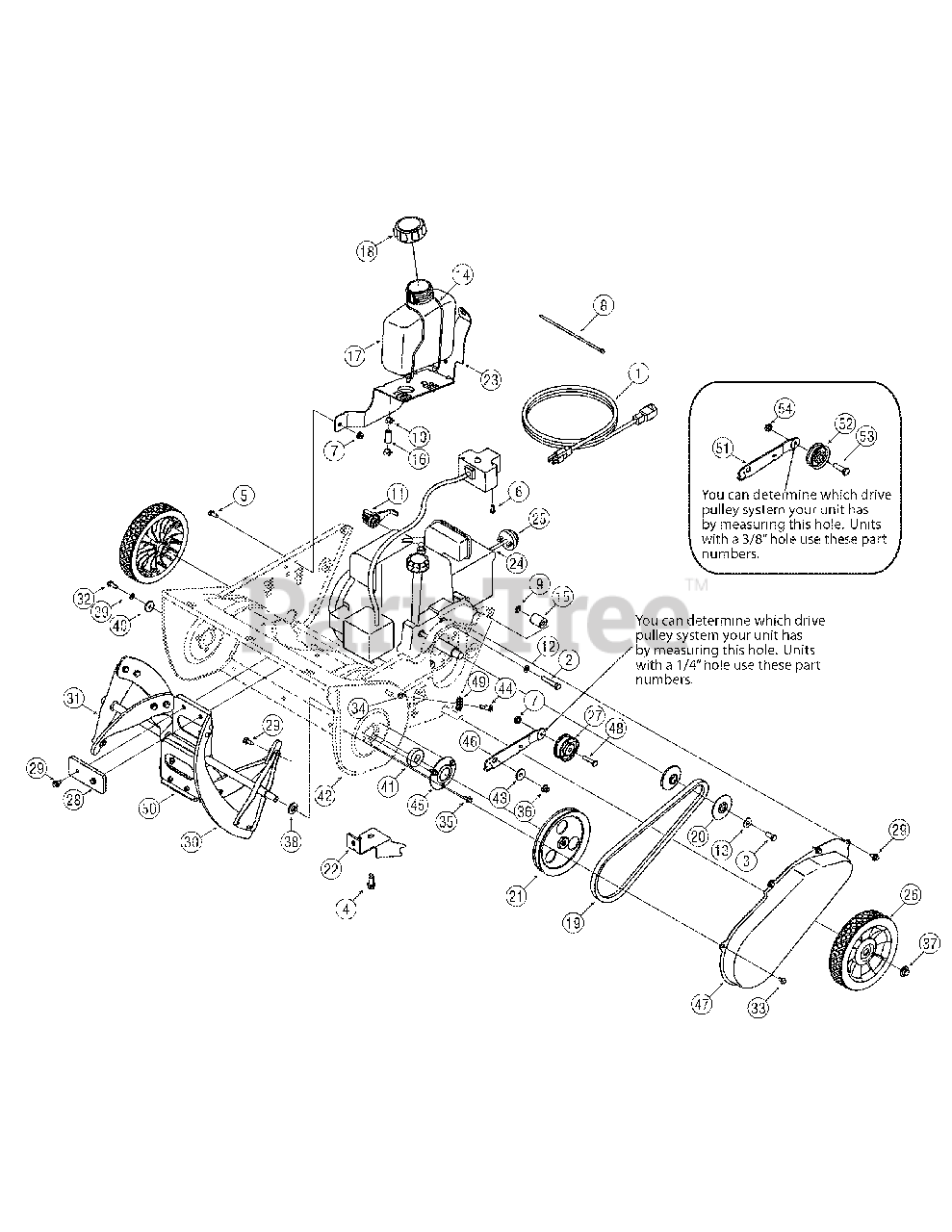

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0409

Hex Screw, 5/16-24 x 1.75

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0654A

Self Tapping Screw, 3/8 -16 x1

$3.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-0751

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Hex Flange Lock Nut 1/4 -20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 726-0154

Push Mount Cable Tie
(Superseded to 926-0154)

$5.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 726-0201

Speed Nut, .3125

$6.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 731-2825

Knob, Choke

$15.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0159

Flat Washer .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 747-04236

Gas Tank Support Wire

$

$

Not available

15

Troy-Bilt 750-04297

Spacer, Engine
(Superseded to 750-04297B)

$4.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 751-0535

Hose, Fuel Line

$

$

Currently unavailable

17

Troy-Bilt 751-10023

Tank, Fuel
(Superseded to 951-10023)

$

$

Not available

18

Troy-Bilt 751-10049

Cap, Fuel
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 754-0101A

V-Belt, 1/2
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 756-0416B

Pulley Half, .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 756-0475

Pulley, 1/2 V 1/2-20 LH x 6.0

$74.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 790-00216

Bracket, Engine
(Superseded to 790-00216-0637)

Variations

Troy-Bilt 790-00216-0637

BRACKET:ENGINE 4 - POWDER BLACK (0637)

$

$

Not available

$

$

23

Troy-Bilt 790-00134

Bracket Support
(Superseded to 790-00134-0637)

Variations

Troy-Bilt 790-00134-0637

BRACKET-FUEL TANK - POWDER BLACK

$

$

Not available

$

$

24

Troy-Bilt 7511152847

Primer Hose Line
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 11

0

25

Troy-Bilt 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

26

Troy-Bilt 734-04063

Wheel, 7 x 1.5 Star Gray
(Superseded to 734-04063B)

$16.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 684-04168

Idler Pulley (Pulley hole 1/4")

$36.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 735-04033

Rubber Paddle

$7.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0896

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 735-04032

Crescent Spiral

$17.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 684-04025A

Auger Axle
(Superseded to 984-04027A)

Variations

Troy-Bilt 684-04025A-0637

Auger Assembly, 21" Complete - POWDER BLACK (0637)

$182.99

$

In Stock, Qty 11

0

$182.99

$

In Stock, Qty 11

0

32

Troy-Bilt 710-0642

Hex Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-0653

Self-tapping Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

34

Troy-Bilt 712-0896

Hex Lock Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

35

Troy-Bilt 710-1005

Self-tapping Screw, 1/4-14 x .50"
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 712-04063

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 726-0299

Push Cap, 1/2"

$7.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0326

Flat Washer .510 x 1.00 x .125

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

40

Troy-Bilt 736-0176

Flat Washer .265 x .938 x .120

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 741-0600

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 684-04167

Auger Assembly Housing

Variations

Troy-Bilt 684-04167-0665

HOUSING ASM:AUGER - YARDMAN GREEN (0665)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04167-0638

21" AUGER HOUSING (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 684-04167-0650

21" AUGER HOUSING (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 684-04167-0668

21" AUGER HOUSING (MOSS GREEN) - MOSS GREEN (0668)

$

$

Not available

Troy-Bilt 684-04167-0691

HOUSING ASM:AUGER - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 684-04167-0709

21" AUGER HOUSING (MASTERCRAFT GREEN) - MASTERCRAFT GREEN (0709)

$

$

Not available

$136.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 748-0234

Shoulder Spacer .25

$4.49

$

In Stock, Qty 10

0

44

Troy-Bilt 738-0924

Carriage Screw 1/4-28
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

45

Troy-Bilt 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Troy-Bilt 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

46

Troy-Bilt 790-00238A

Idler Brkt. w/Brake (Pulley hole 1/4")
(Superseded to 790-00238A-0637)

Variations

Troy-Bilt 790-00238A-0637

Idler Bracket with Brake - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 790-00045

Belt Cover
(Superseded to 790-00045C)

Variations

Troy-Bilt 790-00045-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00045-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 790-00045-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 790-00045-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 790-00045-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$43.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 710-0106

Hex Screw, 3/8-24 x 1.25

$3.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 684-04027A

Auger Assembly
(Superseded to 984-04027A)

$182.99

$

In Stock, Qty 11

0

51

Troy-Bilt 790-00238

Idler Brkt. w/ Brake (Pulley hole 3/8")
(Superseded to 790-00238A-0637)

$9.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 756-0313

Idler Pulley (3/8" hole)

$24.99

$

In Stock, Qty 7

0

53

Troy-Bilt 710-0191

Hex Screw 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

54

Troy-Bilt 712-0116

Jam Lock Nut 3/8--24

$4.49

$

In Stock, Qty 7

0
