521 E (1695701) - Simplicity 21" Snow Thrower, 5.25hp Handle Assembly Group Parts Diagram

21" Snow Thrower, 5.25hp

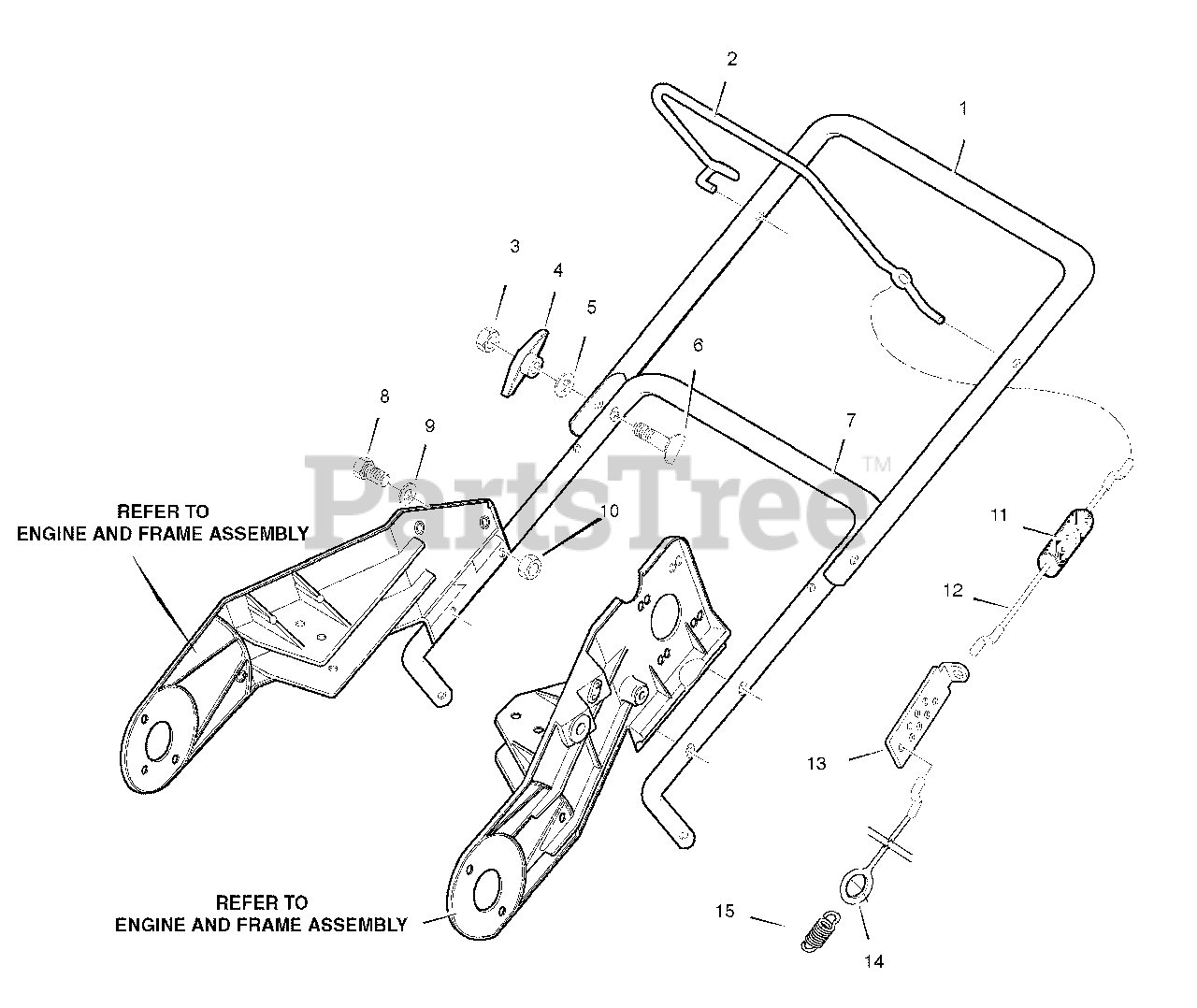

Handle Assembly Group Parts Diagram

  • Title

1

Simplicity 333919E701MA

HANDLE, Upper
(Superseded to 1742109HYP)

$87.99

$

Usually ships in 2-12 days

0

2

Simplicity 313308E701MA

BAIL, Control
(Superseded to 1742110HYP)

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 71037MA

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 57171MA

KNOB, Wing, 5/16-18
(Superseded to 1501260MA)

$7.99

$

In Stock, only 2 left!

0

5

Simplicity 311936MA

WASHER, Formed, 11/32 x 1 OD

$7.49

$

In Stock, only 2 left!

0

6

Simplicity 337584MA

BOLT, Carrigae, 5/16-18 X 2

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 333909E701MA

HANDLE, Lower

$56.99

$

Usually ships in 2-12 days

0

8

Simplicity 313674MA

CAPSCREW, 1/4-20 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 71067MA

WASHER, Flat, 9/32 x 5/8 OD

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 73826MA

NUT, Hex, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 308146MA

BOOT, Clutch Spring

$6.49

$

In Stock, only 1 left!

0

12

Simplicity 313449MA

CABLE, Upper Control
(Superseded to 1501122MA)

$8.49

$

In Stock, Qty 20+

0

13

Simplicity 313441MA

BRACKET, Cable Adjust

$

$

Not available

14

Simplicity 313448MA

CABLE, Lower Control

$10.99

$

In Stock, only 1 left!

0

15

Simplicity 313471MA

SPRING, Extension

$4.99

$

In Stock, only 1 left!

0
