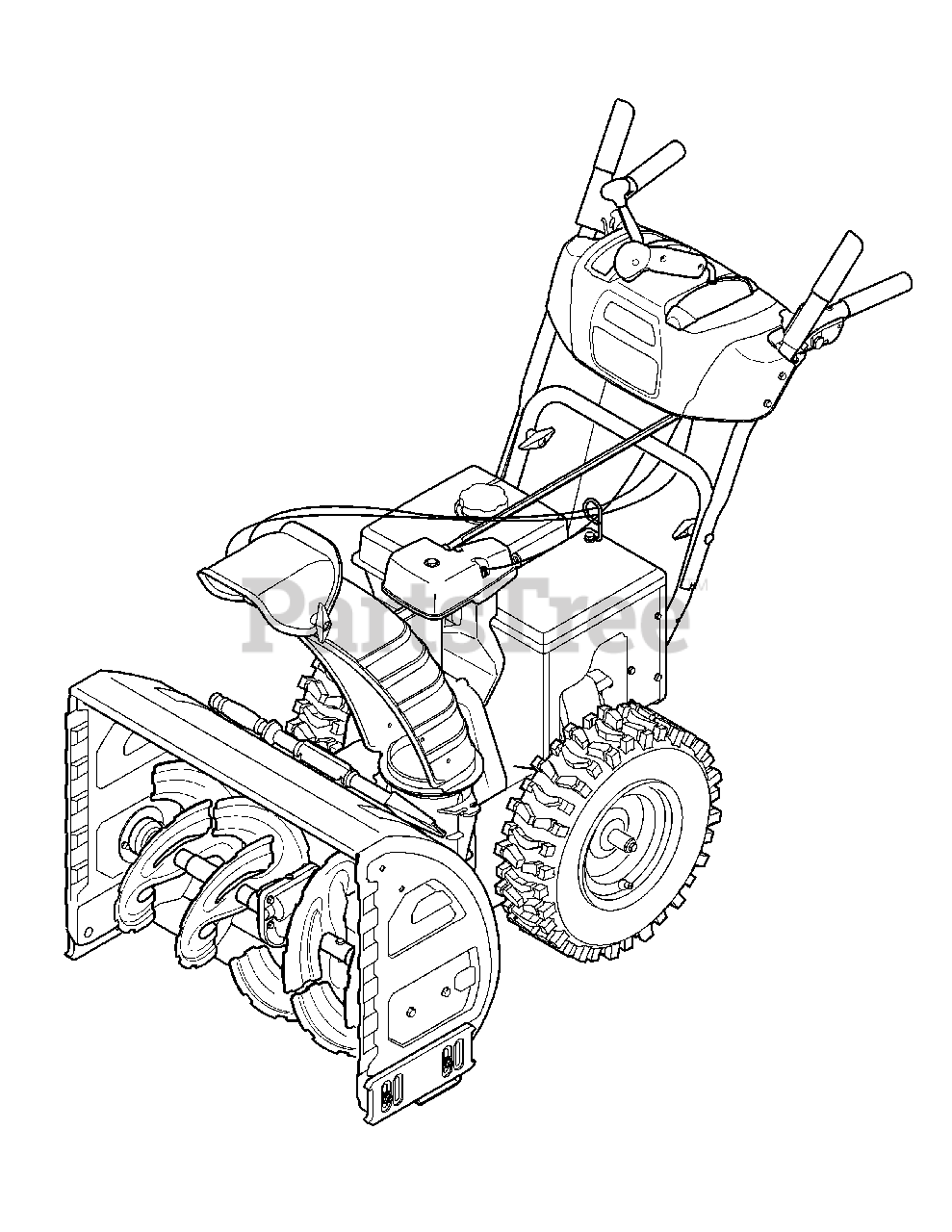

524 WE (31AM63TR710) - Cub Cadet 24" Snow Thrower (2011) .Quick Reference Parts Diagram

24" Snow Thrower

.Quick Reference Parts Diagram

  • Title

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 951-10630

Key

$6.49

$

In Stock, Qty 17

0

Cub Cadet 929-0071A

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 931-2643

Snow Removal Tool

$18.99

$

In Stock, Qty 7

0

Cub Cadet 946-04229B

Drive Cable

$20.99

$

In Stock, only 1 left!

0

Cub Cadet 946-04230A

Auger Cable
(Superseded to 946-04230B)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 946-04396A

Speed Cable

$19.99

$

In Stock, Qty 20+

0

Cub Cadet N/A

Steering Cable

$

$

Currently unavailable

Cub Cadet 684-04107-0637

Auger Assembly - LH
(Superseded to 684-04107A-0637)

$83.99

$

In Stock, Qty 12

0

Cub Cadet 684-04108-0637

Auger Assembly - RH
(Superseded to 684-04108A-0637)

$88.99

$

In Stock, Qty 14

0

Cub Cadet 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$68.99

$

In Stock, Qty 8

0

Cub Cadet 790-00120-4021

Shave Plate
(Superseded to 790-00120-0637)

$33.99

$

In Stock, Qty 20+

0

Cub Cadet 731-06931

Slide Shoe
(Superseded to 731-11514)

$27.99

$

In Stock, Qty 11

0

Cub Cadet 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

Cub Cadet 725-05326

Lamp

$4.49

$

In Stock, Qty 10

0

Cub Cadet 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

Cub Cadet 954-04260

Wheel Drive Belt

$28.99

$

In Stock, Qty 5

0

Cub Cadet N/A

Spiral Crescent

$

$

Currently unavailable

Cub Cadet N/A

Rubber Paddle

$

$

Currently unavailable

Cub Cadet 684-04153

Friction Wheel Assembly
(Superseded to 684-04153C)

$94.99

$

In Stock, Qty 8

0

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$37.99

$

In Stock, Qty 8

0

Cub Cadet 634-04147A-0931

Wheel - LH

$222.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04148A-0931

Wheel - RH

$216.99

$

Usually ships in 3-6 days

0
