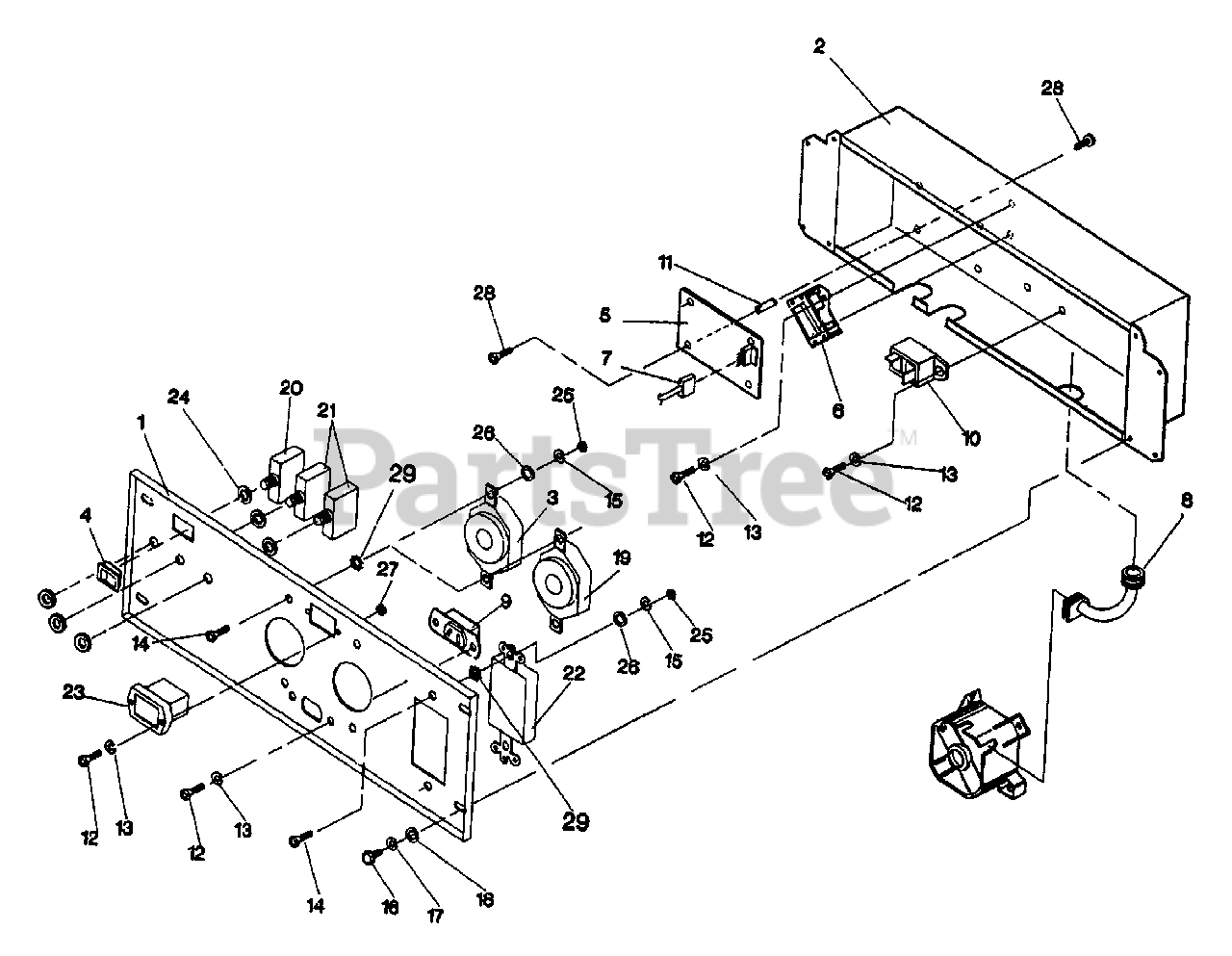

52400 (9827-0) - Troy-Bilt 4,000 Watt Portable Generator Control Panel Parts Diagram

4,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 1903225

Control panel

$

$

Currently unavailable

2

Briggs & Stratton 1902828

Control panel box

$

$

Currently unavailable

3

Briggs & Stratton 1903227

AC outlet, 120/240 Volt, 20 Amp

$

$

Currently unavailable

4

Briggs & Stratton 1903228

Idle control switch

$

$

Currently unavailable

5

Briggs & Stratton 1903229

System control board

$

$

Currently unavailable

6

Briggs & Stratton 1903230

Idle control transformer

$

$

Currently unavailable

7

Briggs & Stratton 1903231

Wire harness assembly

$

$

Currently unavailable

8

Briggs & Stratton 1903232

Rubber grommet connector

$

$

Currently unavailable

9

Briggs & Stratton 1903233

12VDC outlet & bracket

$

$

Currently unavailable

10

Briggs & Stratton 1903234

Circuit breaker, 12V, 10A

$

$

Currently unavailable

11

Briggs & Stratton 1903235

Stand-off, hex, 3/4"

$

$

Currently unavailable

12

Briggs & Stratton 1903236

Screw, pan head, M3-0.5 x 10mm

$

$

Currently unavailable

13

Briggs & Stratton 1903237

Lockwasher, M3

$

$

Currently unavailable

14

Briggs & Stratton 1903238

Screw, pan head, M4-0.7 x 10mm

$

$

Currently unavailable

15

Briggs & Stratton 1903239

Lockwasher, M4

$

$

Currently unavailable

16

Briggs & Stratton 1903240

Screw, pan head, M5-0.8 x 12

$

$

Currently unavailable

17

Briggs & Stratton 1903241

Lockwasher, M5

$

$

Currently unavailable

18

Briggs & Stratton 1903242

Flat washer, M5

$

$

Currently unavailable

19

Briggs & Stratton 1903243

AC outlet, 120 V. AC, 30 Amp

$

$

Currently unavailable

20

Briggs & Stratton 1903244

Circuit breaker, 30A

$

$

Currently unavailable

21

Briggs & Stratton 1903245

Circuit breaker, 20A

$

$

Currently unavailable

22

Briggs & Stratton 1903246

Duplex outlet, 120V. AC, 20A, GFCI

$

$

Currently unavailable

23

Briggs & Stratton 1903247

Hour meter

$

$

Currently unavailable

24

Briggs & Stratton 1903248

Lockwasher, Internal

$

$

Currently unavailable

25

Briggs & Stratton 1903249

Hex nut, M4-0.7

$

$

Currently unavailable

26

Briggs & Stratton 1903250

Flat washer, M4

$

$

Currently unavailable

27

Briggs & Stratton 1903251

Hex nut, M3-0.5

$

$

Currently unavailable

28

Briggs & Stratton 1903252

Screw, self-tapping, #6-32 x 3/8"

$

$

Currently unavailable

29

Briggs & Stratton 1903253

Washer, #8 shakeproof

$

$
