52400 - Troy-Bilt 4,000 Watt Portable Generator (SN: 524000100101 & Above) CONTROL PANEL Parts Diagram

4,000 Watt Portable Generator

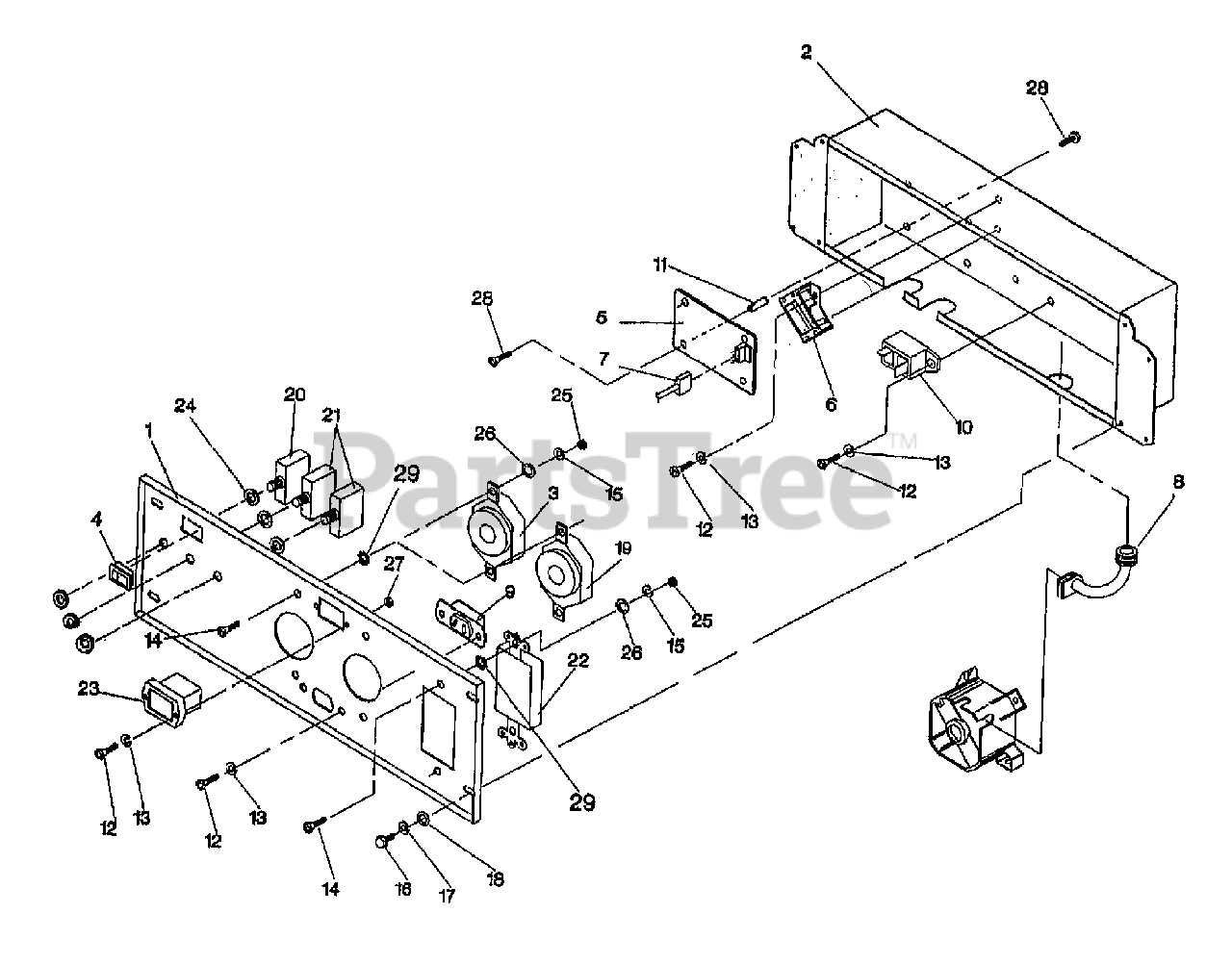

CONTROL PANEL Parts Diagram

  • Title
1

MTD 1903225

PANEL-CONTROL (4000W GEN)

$

$

Not available

2

Troy-Bilt 1902828

ASSM-FLYWHL 28 DEG TIMING(GEN)

$

$

Currently unavailable

3

MTD 1903227

OUTLET-120V 20A (4000W GEN)

$

$

Not available

4

Troy-Bilt 1903228

SWITCH-IDLE CONTROL (GENERATOR

$

$

Currently unavailable

5

Troy-Bilt 1903229

BOARD-SYSTEM CONTROL (GENERATO

$

$

Currently unavailable

6

MTD 1903230

TRANSFORMER-IDLE CONTROL (GEN)

$

$

Not available

7

MTD 1903231

ASSM-WIRE HARNESS (GENERATOR)

$

$

Not available

8

MTD 1903232

CONNECTOR-RUBBER GROMMET (GEN)

$

$

Not available

9

MTD 1903233

BRKT&OUTLET-12V DC (GEN)

$

$

Not available

10

MTD 1903234

CIRCUIT BREAKER-12V 10A (GEN)

$

$

Not available

11

MTD 1903235

STAND-OFF HEX 3/4" LONG (GEN)

$

$

Not available

12

MTD 1903236

SCR-PH M3-.5X10MM

$

$

Not available

13

MTD 1903237

WASHER-LOCK M3 (GEN)

$

$

Not available

14

MTD 1903238

SCR-PH M4-.7X10MM

$

$

Not available

15

MTD 1903239

WASHER-LOCK M4 (GEN)

$

$

Not available

16

MTD 1903240

SCR-PH M5-.8X12MM

$

$

Not available

17

MTD 1903241

WASHER-LOCK M5 (GEN)

$

$

Not available

18

MTD 1903242

WASHER-LOCK M5 (GEN)

$

$

Not available

19

MTD 1903243

OUTLET-120V 30A

$

$

Not available

20

MTD 1903244

CIRCUIT BREAKER-30A (GEN)

$

$

Not available

21

Troy-Bilt 1903245

CIRCUIT BREAKER-20A (GEN)

$

$

Currently unavailable

22

MTD 1903246

OUTLET-DUPLEX GFCI 120V 20A (G

$

$

Not available

23

MTD 1903247

METER-HOUR (GENERATOR)

$

$

Not available

24

MTD 1903248

WASHER-LOCK INTERNAL

$

$

Not available

25

MTD 1903249

NUT-HEX M4-0.7 (GEN)

$

$

Not available

26

MTD 1903250

WASHER-FLAT M4

$

$

Not available

27

MTD 1903251

NUT-HEX M3-0.5 (GENERATOR)

$

$

Not available

28

MTD 1903252

SCR-SELF TAP #6-32 X 3/8 (GEN)

$

$

Not available

29

MTD 1903253

WASHER-LK #8 (GENERATOR)

$

$

Not available
