52401 - Troy-Bilt 6,000 Watt Portable Generator (SN: 524010100101 & Above) ENGINE (2) Parts Diagram

6,000 Watt Portable Generator

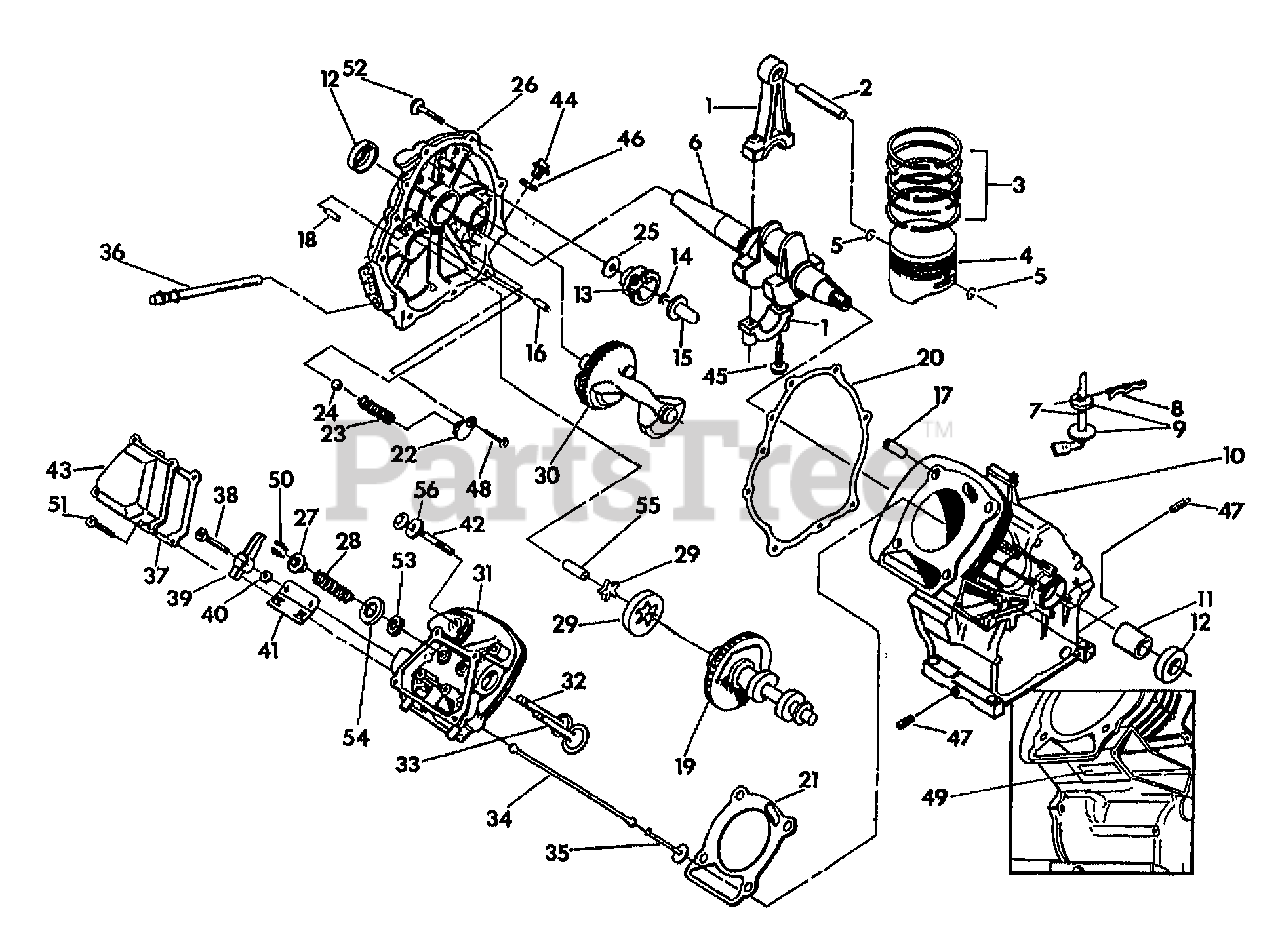

ENGINE (2) Parts Diagram

  • Title

1

MTD 1903289

ROD-CONNECTING W/CAP&BOLT

$

$

Not available

2

Troy-Bilt 1903290

PIN-PISTON GN360

$

$

Currently unavailable

3

MTD 1903291

PISTON RING SET (6000W GEN)

$

$

Not available

4

Troy-Bilt 1903292

PISTON (6000W GEN)

$

$

Currently unavailable

5

MTD 1903293

RETAINER-PISTON PIN (6000W GEN

$

$

Not available

6

Troy-Bilt 1903294

ASSM-CRANKSHAFT W/GEARS (6000

$

$

Currently unavailable

7

MTD 1903295

ARM-GOVERNOR (6000W GEN)

$

$

Not available

8

MTD 1902586

PIN-"R" GOVERNOR ARM

$

$

Not available

9

MTD 1902612

WASHER-GOVERNOR ARM

$

$

Not available

10

MTD 1903296

CRANKCASE-HS W/TAPER PLUGS

$

$

Not available

11

MTD 1903297

BEARING-SLEEVE (6000W GEN)

$

$

Not available

12

Troy-Bilt 1903298

SEAL-CRANKSHAFT (6000W GEN)

$

$

Currently unavailable

13

Troy-Bilt 1903299

ASSM-GOVERNOR GEAR (6000W GEN)

$

$

Currently unavailable

14

Troy-Bilt 1902592

RETAINER-GOVERNOR ("C" RING)

$

$

Currently unavailable

15

MTD 1902593

SPOOL-GOVERNOR

$

$

Not available

16

MTD 1902597

DOWEL-12"DIA. SLEEVE

$

$

Not available

17

MTD 1903301

DOWEL-SLEEVE 014 (6000W GEN)

$

$

Not available

18

MTD 1903302

DOWEL-SOLID 012 (6000W GEN)

$

$

Not available

19

Troy-Bilt 1903303

ASSM-CAMSHAFT (6000W GEN)

$

$

Currently unavailable

20

Troy-Bilt 1903304

GASKET-CRANKCASE (6000W GEN)

$

$

Currently unavailable

21

Troy-Bilt 1903305

GASKET-CYL HEAD (6000W GEN)

$

$

Currently unavailable

22

MTD 1902599

RETAINER-SPRING OIL PRESS.

$

$

Not available

23

MTD 1903307

SPRING-PRESSURE RELIEF (6000WG

$

$

Not available

24

MTD 1902601

BALL-PRESSURE RELIEF

$

$

Not available

25

MTD 1902604

WASHER-THRUST

$

$

Not available

26

MTD 1903308

COVER-GEAR ASSM GN360

$

$

Not available

27

MTD 1903309

RETAINER-VALVE SPRING (6000 GE

$

$

Not available

28

MTD 1903310

SPRING-VALVE (6000W GEN)

$

$

Not available

29

Troy-Bilt 1903311

GEROTOR SET (6000W GEN)

$

$

Currently unavailable

30

Troy-Bilt 1903312

BALANCER (6000W GENERATOR)

$

$

Currently unavailable

31

Troy-Bilt 1903313

CYL HEAD W/VALVE SEATS & GUIDE

$

$

Currently unavailable

32

Troy-Bilt 1903315

VALVE-EXHAUST (6000W GEN)

$

$

Currently unavailable

33

Troy-Bilt 1903316

VALVE-INTAKE (6000W GEN)

$

$

Currently unavailable

34

MTD 1903317

ROD-PUSH GEN #88396A

$

$

Not available

35

MTD 1903318

TAPPET (6000W GENERATOR)

$

$

Not available

36

MTD 1903319

ASSM-OIL PICK-UP (6000W GEN)

$

$

Not available

37

Troy-Bilt 1903320

GASKET-ROCKER CVR (6000W GEN)

$

$

Currently unavailable

38

Troy-Bilt 1903321

STUD-PIVOT BALL (6000W GEN)

$

$

Currently unavailable

39

Troy-Bilt 1903322

ARM-ROCKER (6000W GENERATOR)

$

$

Currently unavailable

40

MTD 1903323

NUT-HEX/JAM GN360

$

$

Not available

41

MTD 1903324

PLATE-PUSH ROD GUIDE (6000 GEN

$

$

Not available

42

MTD 1903325

BOLT-HEAD M10X100 (6000 GEN)

$

$

Not available

43

MTD 1903326

ASSM-ROCKER CVR BREATHER (GEN)

$

$

Not available

44

Troy-Bilt 1902626

PLUG-OIL FILL

$

$

Currently unavailable

45

Troy-Bilt 1903327

BOLT-CONNECTING ROD (6000 GEN)

$

$

Currently unavailable

46

Troy-Bilt 1902629

RING-O 17.8MM IDX2.4MM

$

$

Currently unavailable

47

Troy-Bilt 1903328

PLUG-3/8" NPT PIPE (6000 GEN)

$

$

Currently unavailable

48

MTD 1902602

SCR M5-0.8X8MM (THD FORMING)

$

$

Not available

49

Troy-Bilt 1903329

DECAL-SER. NO. S360H

$

$

Currently unavailable

50

Troy-Bilt 1903330

VALVE SPRING KEEPER (6000 GEN)

$

$

Currently unavailable

51

MTD 1902603

SCR M6-1.0X12MM

$

$

Not available

52

Troy-Bilt 1903331

SCR-HFLK M8-1.25X45

$

$

Currently unavailable

53

MTD 1903332

SEAL-VALVE STEM (6000W GEN)

$

$

Not available

54

Troy-Bilt 1903333

WASHER-VALVE SPRING (6000 GEN)

$

$

Currently unavailable

55

MTD 1903334

SHAFT-GRTR BRG TUBE (6000W GEN

$

$

Not available

56

Troy-Bilt 1903335

WASHER-CYL HEAD (6000W GEN)

$

$

Currently unavailable
