5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) Frame Parts Diagram

Compact Tractor

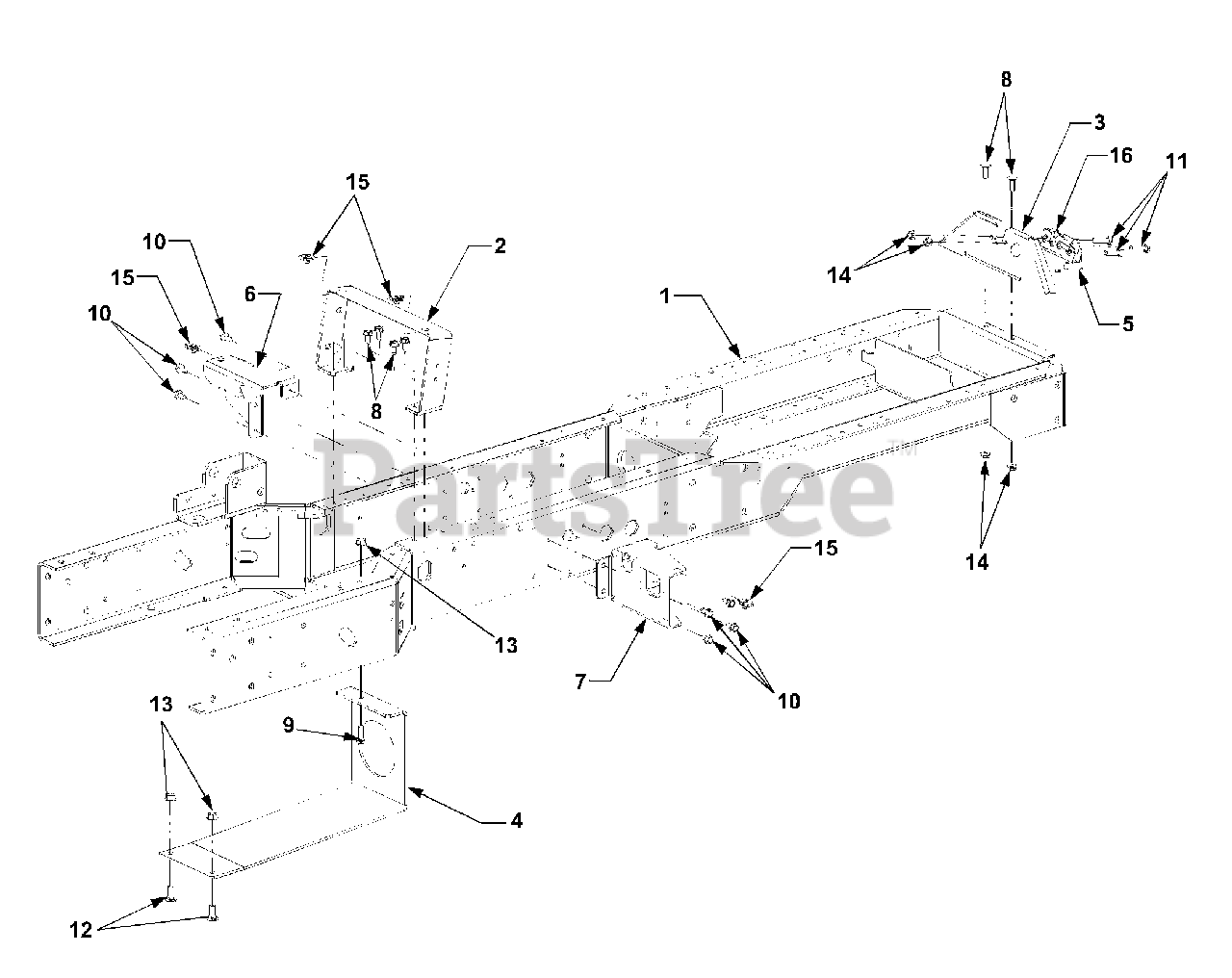

Frame Parts Diagram

  • Title

1

Cub Cadet 603-0961

Frame
(Superseded to 603-0961A-0637)

Variations

Cub Cadet 603-0961-0637

USE 603-0961A-0637 FRAME ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-05031

Bracket, Front Seat Mount
(Superseded to 703-05031-0637)

Variations

Cub Cadet 703-05031-0637

BRACKET-SEAT FRONT - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-05137A

Bracket, Hood Latch Mtg.

Variations

Cub Cadet 703-05137A-0637

BRACKET-HOOD LATCH - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-05377

Plate, Skid
(Superseded to 703-05377-0637)

Variations

Cub Cadet 703-05377-0637

PLATE-SKID - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-3503A

Lever, Hood Latch

$

$

Not available

6

Cub Cadet 703-4124

Bracket, Running Board Mtg. LH

Variations

Cub Cadet 703-4124-0637

BRACKET-RNGBRD (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-4125

Bracket, Running Board Mtg. RH

Variations

Cub Cadet 703-4125-0637

BRACKET-RNGBRD (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1260A

Screw, Hex Wash. Hd., 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.375 GR5

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0211

Nut, U Speed, 5/16-18

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 726-0455

Latch, Hood

$

$

Not available
