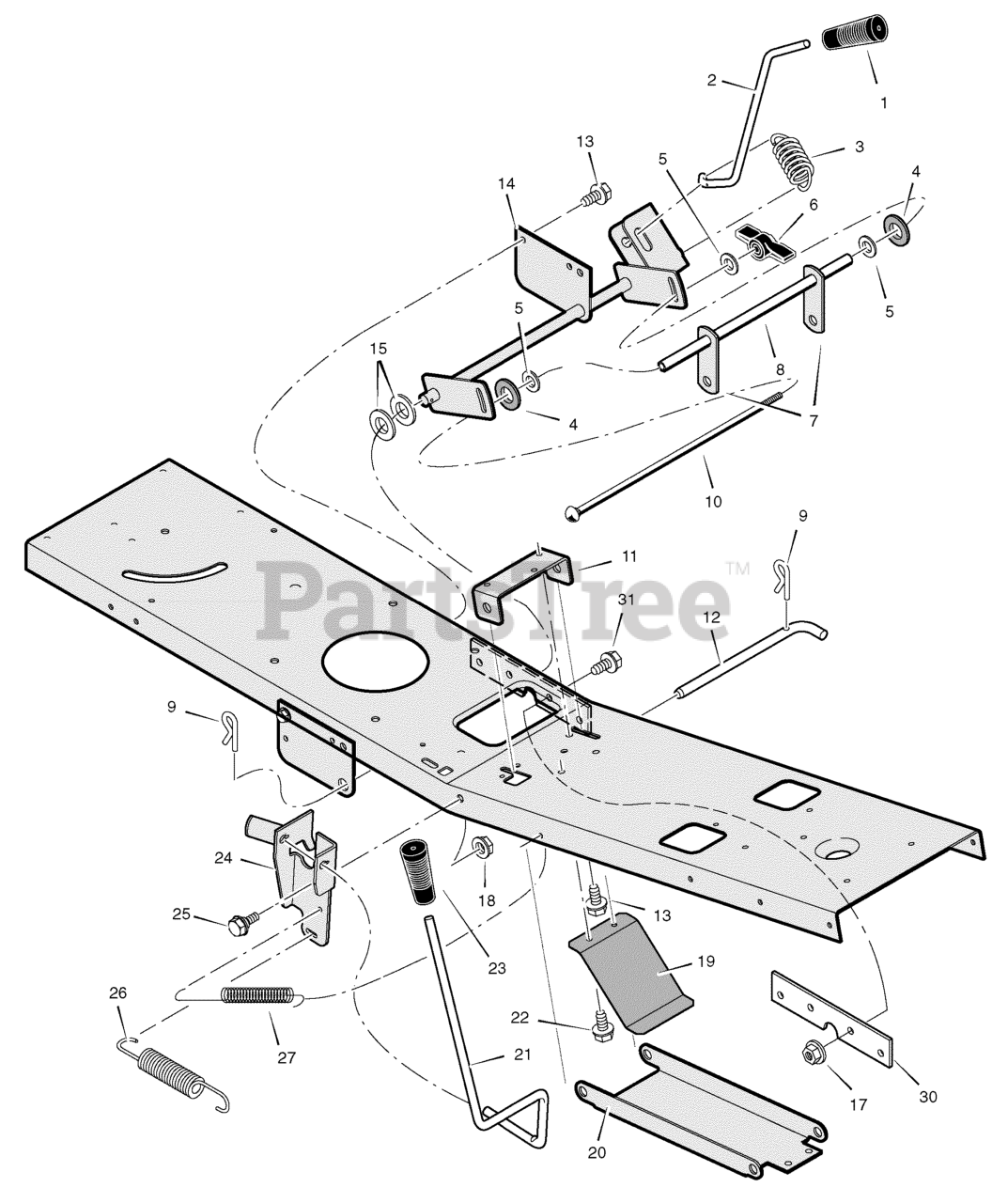

536.270290 - Craftsman 30" Rear-Engine Riding Mower (2004) (Sears) Mower Housing Suspension Parts Diagram

30" Rear-Engine Riding Mower

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 92697

Grip, Lift Lever

$

$

Not available

2

Murray 1401117

Lever, Lift

$

$

Not available

3

Murray 165X154

Spring, Extension
(Superseded to 165X154MA)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 94137

Pad, Friction
(Superseded to 690326)

$6.49

$

Usually ships in 2-12 days

0

5

Murray 017X45

Washer
(Superseded to 017X45MA)

$

$

Not available

6

Murray 95004

Wingnut

$7.49

$

In Stock, only 1 left!

0

7

Murray 1401033E701

Link, Lift

$24.99

$

Usually ships in 2-12 days

0

8

Murray 1401096

Tube, Spacer

$

$

Not available

9

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Murray 002X93

Bolt, Carriage

$12.99

$

Usually ships in 2-12 days

0

11

Murray 1401030E701

Bracket, Front Hanger Pivot
(Superseded to 1401030E701MA)

$5.99

$

Usually ships in 2-12 days

0

12

Murray 1401118

Pin, Front Hanger
(Superseded to 1401118MA)

$43.99

$

Usually ships in 2-12 days

0

13

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

14

Murray 1401129E701

Arm Assembly, Lifter

$

$

Not available

15

Murray 17X206

Washer

$4.49

$

Usually ships in 2-12 days

0

17

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

18

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 1401147

Spring, Leaf

$8.99

$

Usually ships in 2-12 days

0

20

Murray 1401040E701

Hanger, Front

$48.99

$

Usually ships in 2-12 days

0

21

Murray 1401116

Lever, PTO

$51.99

$

Usually ships in 2-12 days

0

22

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

23

Murray 94198

Grip, PTO

$

$

Not available

24

Murray 1401199E701

Bracket, PTO

$25.99

$

Usually ships in 2-12 days

0

25

Murray 009X42

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 2 left!

0

26

Murray 165X157

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

27

Murray 165X92

Spring, Extension
(Superseded to 165X92MA)

$5.49

$

In Stock, only 2 left!

0

30

Murray 1401260E701

Plate, Reinforcement

$

$

Not available

31

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0
