536.772330 (77233000 NA) - Craftsman Lawn Edger (2007) (Sears) Frame Assembly Parts Diagram

Lawn Edger

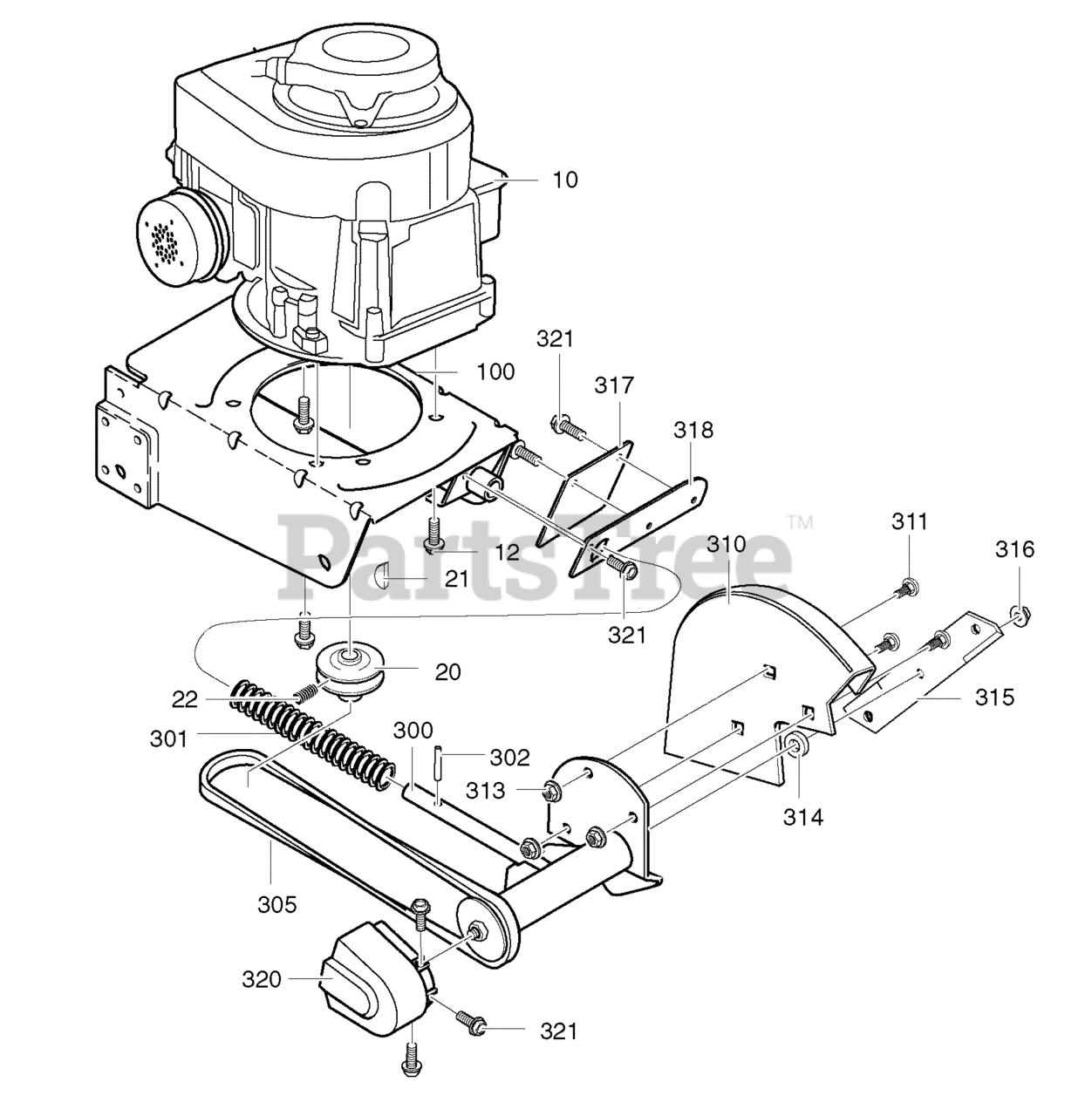

Frame Assembly Parts Diagram

  • Title

10

ENGINE 3.5 HP

Note: (09T7020114E1)

$

$

Not available

12

Murray 0025X6MA

SCREW

$5.49

$

Usually ships in 2-12 days

0

20

Murray 52052MA

PULLEY, V3L

$32.99

$

Usually ships in 2-12 days

0

21

Murray 338490MA

KEY, Hi Pro #505

$4.99

$

Usually ships in 2-12 days

0

22

Murray 120580MA

SCREW, Set

$3.99

$

Usually ships in 2-12 days

0

100

Murray 740121E601MA

FRAME, Edger

$113.99

$

Usually ships in 2-12 days

0

300

Murray 339283MA

QUILL ASSEMBLY

$

$

Not available

301

Murray 51603MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

302

Murray 412281MA

SPRING PIN

$3.99

$

Usually ships in 2-12 days

0

305

Murray 32668MA

BELT, V4L

$19.99

$

In Stock, Qty 6

0

310

Murray 331076E601MA

BLADE GUARD
(Superseded to 331076E701MA)

$75.99

$

Usually ships in 2-12 days

0

311

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

313

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

314

Murray 22265MA

WASHER, Flat

$4.99

$

Usually ships in 2-12 days

0

315

Murray 740297MA

BLADE, Edger

$

$

Not available

316

Murray 46023MA

NUT, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

317

Murray 338582MA

DEFLECTOR, Rubber

$9.99

$

Usually ships in 2-12 days

0

318

Murray 337792E601MA

PLATE, Rubber Flap

$16.99

$

Usually ships in 2-12 days

0

320

Murray 336631MA

BELT GUARD

$

$

Not available

321

Murray 26X245MA

SCREW, 10-16x.50

$4.49

$

In Stock, Qty 6

0

-

Murray 1740548

INSTRUCTION MANUAL

$

$

Currently unavailable
