536.772342 - Craftsman Lawn Edger (2005) (Sears) Quill Assembly Parts Diagram

Lawn Edger

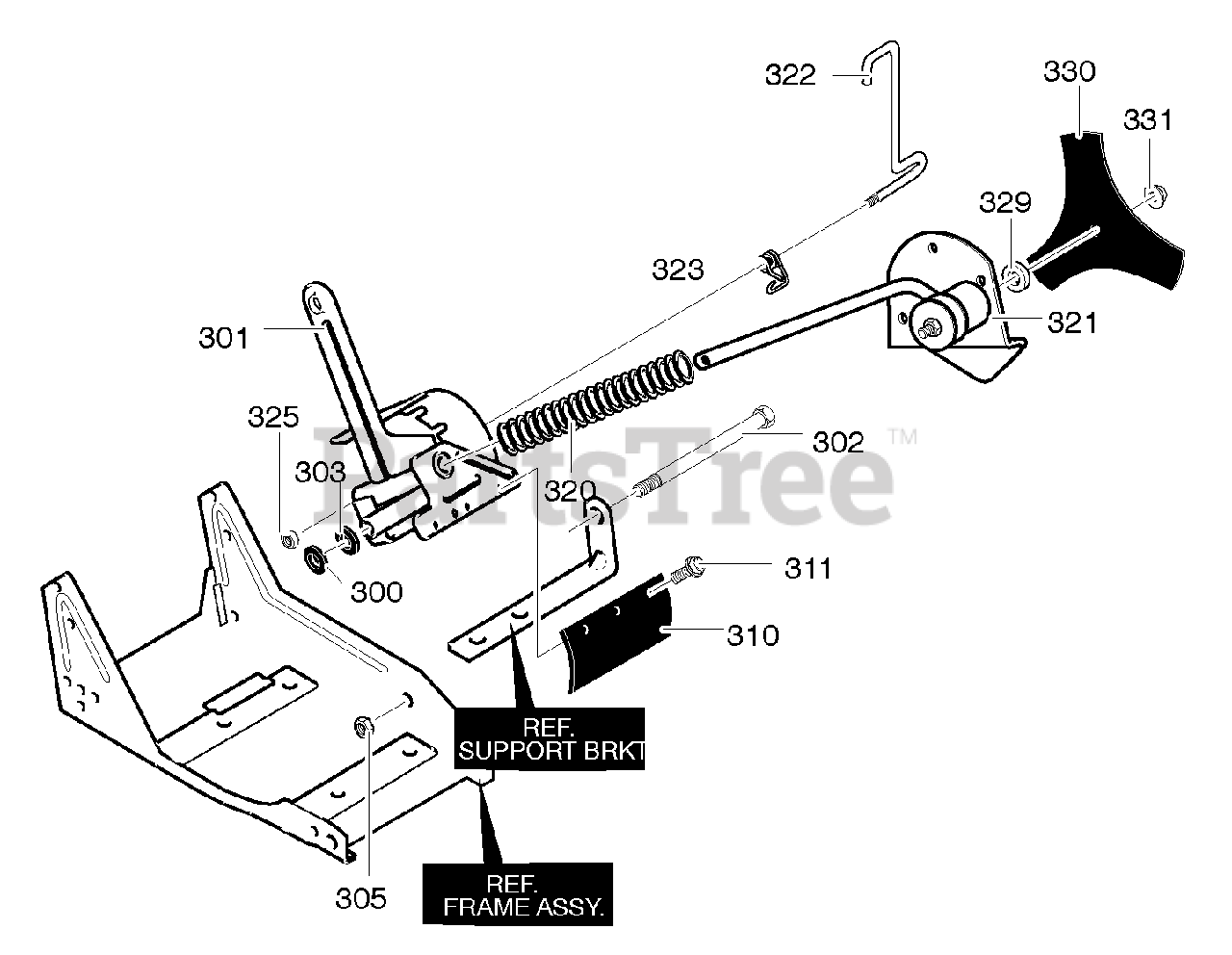

Quill Assembly Parts Diagram

  • Title

300

Murray 710083

Flatwasher

$12.99

$

In Stock, only 3 left!

0

301

Murray 338656E201MA

Quill Support
(Superseded to 338656E701MA)

$

$

Not available

302

Murray 308254

Bolt, 3/8-16

$

$

Currently unavailable

303

Murray 120396

Flatwasher

$

$

Not available

305

Murray 1499MA

Nut, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

310

Murray 308243MA

Rubber Deflector

$5.49

$

Usually ships in 2-12 days

0

311

Murray 026X245

Screw, 10-16x1.50

$4.49

$

In Stock, Qty 6

0

320

Murray 51603MA

Spring

$5.49

$

Usually ships in 2-12 days

0

321

Murray 338070MA

Quill Assembly
(Superseded to 740039MA)

$

$

Not available

322

Murray 308466MA

Lever, Index

$15.99

$

In Stock, only 1 left!

0

323

Murray 308155MA

Spring, Torsion

$7.99

$

Usually ships in 2-12 days

0

325

Murray 1498

Nut, 5/16-18

$

$

Not available

329

Murray 22265MA

Flatwasher

$4.99

$

Usually ships in 2-12 days

0

330

Murray 740296MA

Blade, Edger

$

$

Not available

331

Murray 46023MA

Nut, 1/2-20

$5.99

$

Usually ships in 2-12 days

0
