536.886180 (1696146) - Craftsman 27" Snow Thrower (2011) (Sears) Auger Housing Group Parts Diagram

27" Snow Thrower

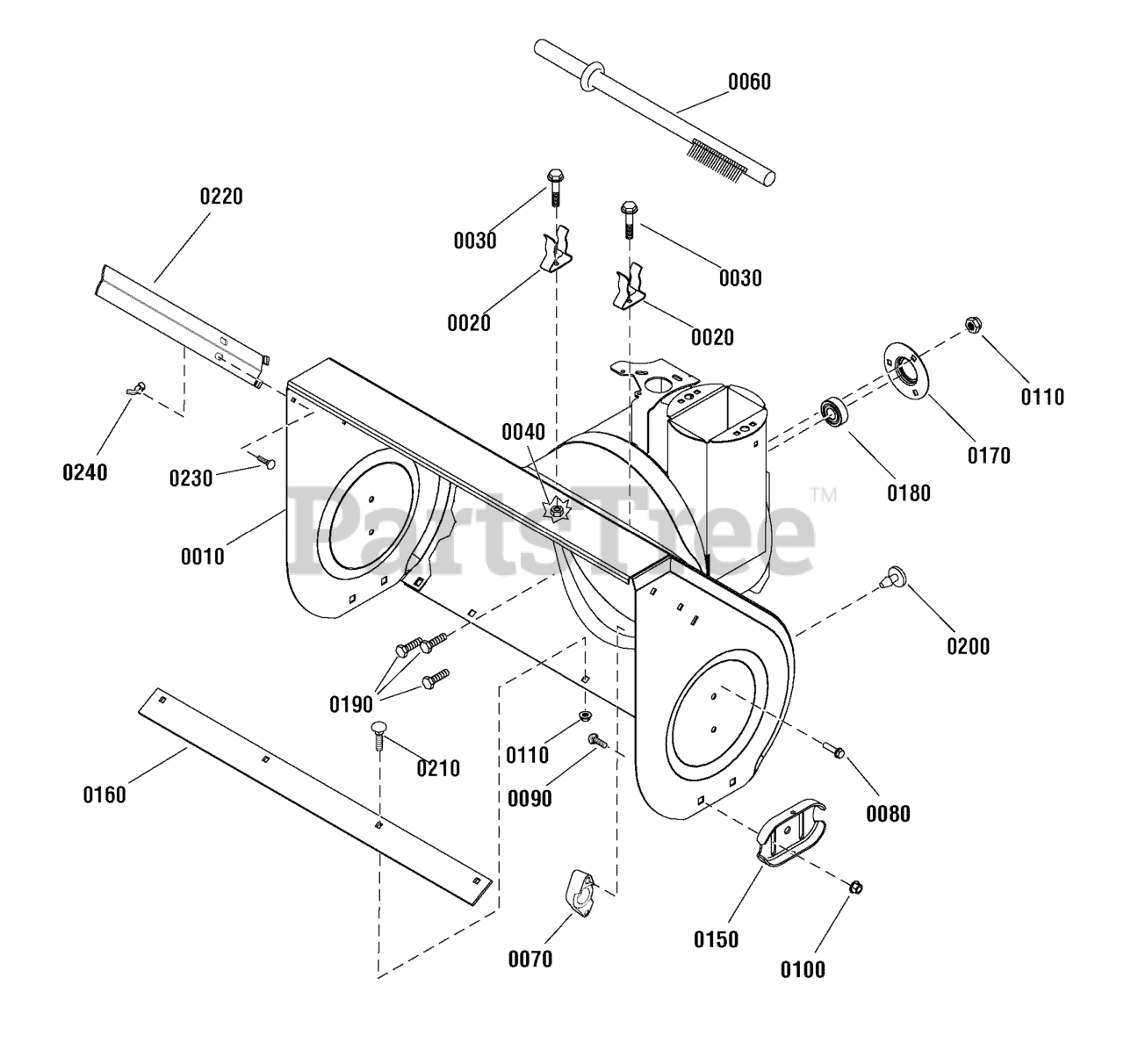

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687668YP

AUGER HOUSING KIT, 27"

$467.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLIP, Retainer

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 7091290SM

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, Auger Shaft

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Carriage, 3/8-16 x 3/4 GR5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1727854ASM

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, only 2 left!

0

0160

Murray 1740745AYP

BLADE, Scraper, 27"
(Superseded to 1740745BMYP)

$

$

Not available

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 582957YZMA

BEARING, Ball
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0200

Murray 760040MA

PLUG

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8 GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0220

Murray 1733102ASM

DRIFT CUTTER

$31.99

$

In Stock, only 4 left!

0

0230

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 725347YP

NUT, Wing, 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0
