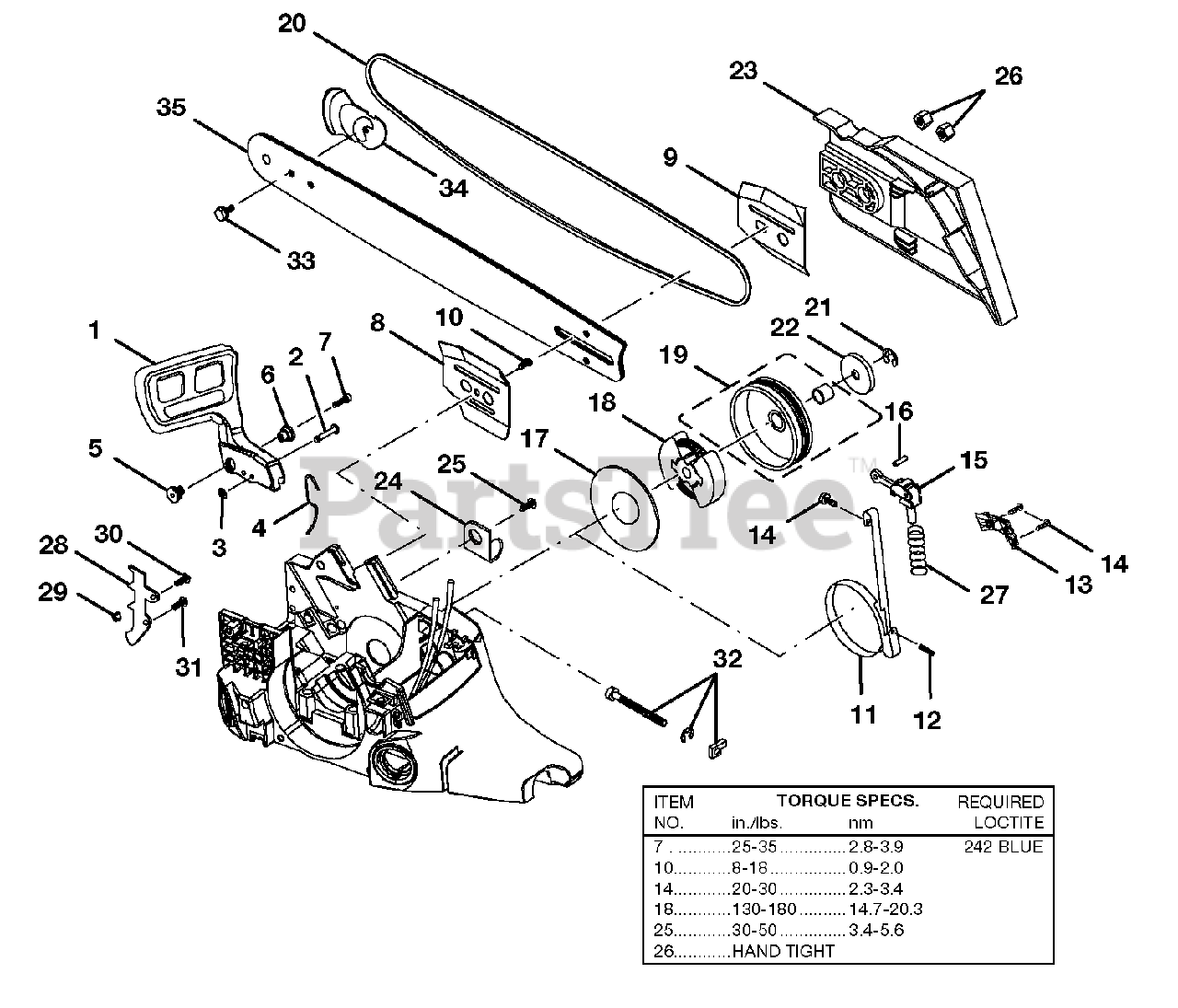

540 (UT-10550) - Homelite Chainsaw Clutch - Chain Brake - Drive Case Cover Parts Diagram

Chainsaw

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title

1

Homelite 511723001

HAND GUARD
(Superseded to 07386B)

$6.49

$

In Stock, only 1 left!

0

2

Homelite 620282001

HAND GUARD ACTUATING PIN

$1.49

$

In Stock, Qty 20+

0

3

Homelite 671075001

RETAINING RING
(Superseded to 69599)

$

$

Not available

4

Homelite 638024001

SPRING, HANDGUARD

$1.49

$

In Stock, only 4 left!

0

5

Homelite 671097001

PIVOT, LH

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 671096001

PIVOT, RH

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660635001

SCREW (8-32 x 5/8 in.)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 631036001

PLATE, GUIDE BAR

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 631038001

PLATE, GUIDE BAR

$1.49

$

In Stock, only 2 left!

0

10

Homelite T660619001

SCREW (6-19 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 631063001

BRAKE BAND
(Superseded to 985030001)

$

$

Not available

12

Homelite 671095001

PIN, ROLL

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 511720001

BRAKE BAND COVER
(Superseded to 985021001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660634001

SCREW (8-16 x .320 )

$1.49

$

In Stock, Qty 20+

0

15

Homelite 300954001

CHAIN BRAKE LINK
(Superseded to A07612A)

$

$

Not available

16

Homelite 671099001

PIN, ROLL

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 631061001

THRUST WASHER

$1.49

$

In Stock, only 3 left!

0

18

Homelite 300960001

CLUTCH & HARDWARE
(Superseded to 300960003)

$

$

Not available

19

Homelite 300958002

SPROKET DRUM & BEARING ASSEMBLY (.325 PITCH)

$

$

Not available

20

Homelite 900920004

CHAIN
(Superseded to PS06135)

$44.99

$

Usually ships in 3-7 days

0

21

Homelite 671103001

RING, RETAINING
(Superseded to 08981)

$2.99

$

In Stock, only 2 left!

0

22

Homelite 631060001

WASHER

$

$

Not available

23

Homelite 300957001

DRIVE CASE COVER

$

$

Not available

24

Homelite 631035001

CHAIN CATCHER
(Superseded to 631035002)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 660618001

SCREW (10-24 x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, only 3 left!

0

26

Homelite 671076001

NUT, HEX

$1.49

$

In Stock, only 3 left!

0

27

Homelite 678113001

SPRING, COMPRESSION
(Superseded to 984679001)

$

$

Not available

28

Homelite 631039001

BUMPER SPIKE
(Superseded to PS06077)

$

$

Not available

29

Homelite 678027002

LOCK NUT, HEX (10-24)
(Superseded to 678027001)

$

$

Not available

30

Homelite 660625001

SCREW

$

$

Currently unavailable

31

Homelite 660621001

SCREW, TRUSS HD.
(Superseded to 82632)

$1.49

$

In Stock, Qty 12

0

32

Homelite 308116001

ADJUSTING PIN KIT

$1.49

$

In Stock, Qty 11

0

33

Homelite 660640001

SCREW - SAFETY TIP (HEX HD.)

$1.49

$

In Stock, only 1 left!

0

34

Homelite 308006003

SAFETY TIP

$

$

Not available

35

Homelite 308108001

GUIDE BAR

$

$

Not available
