5418 F (556C565K100) - Cub Cadet Walk-Behind Mower (SN: 452900 - 503790) Crankshaft & Piston Parts Diagram

Walk-Behind Mower

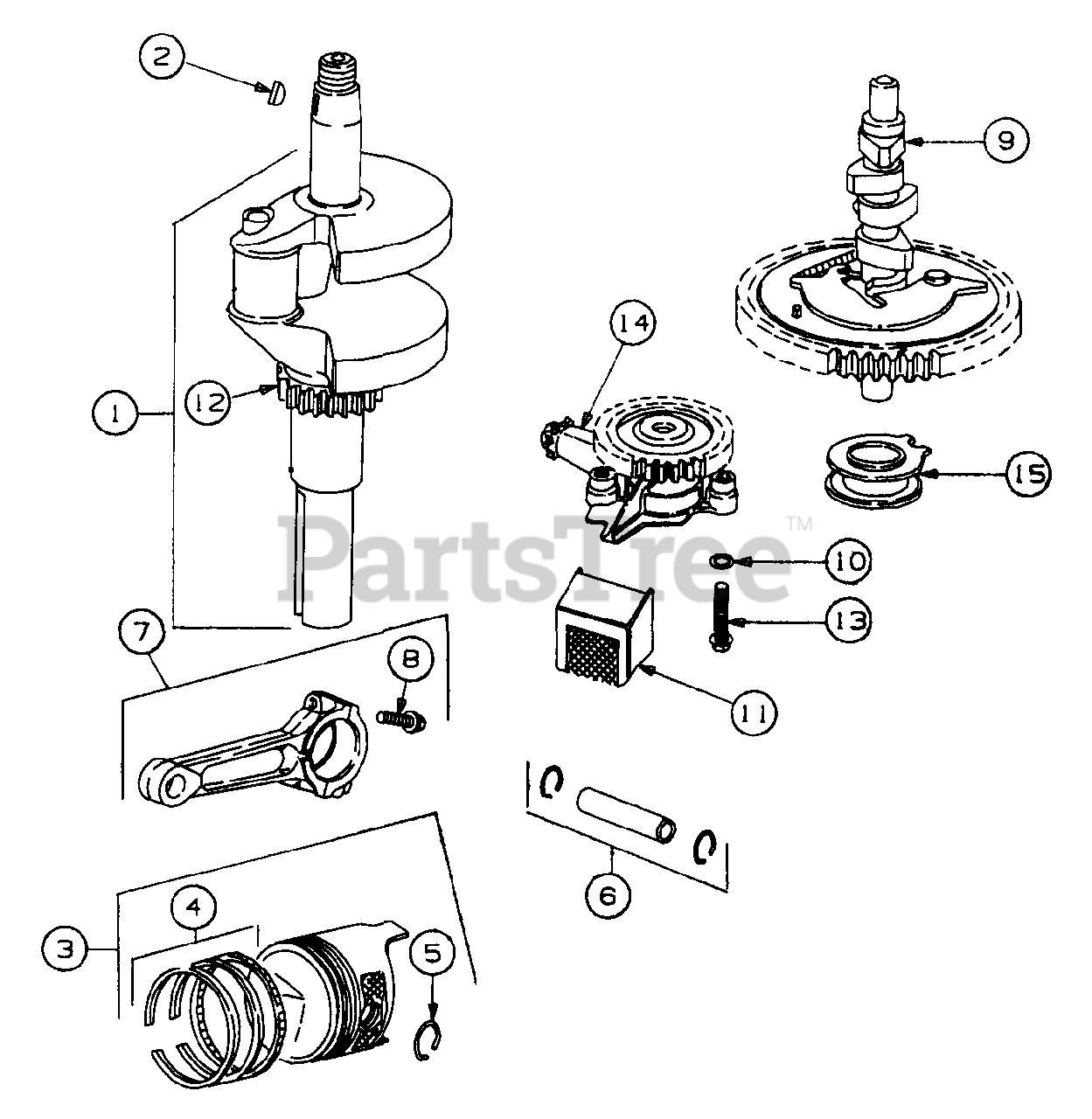

Crankshaft & Piston Parts Diagram

  • Title

1

Cub Cadet BS-807779

Crankshaft

$272.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-805016

Key, Flywheel

$

$

Not available

3

Cub Cadet BS-807888

Piston Assy (Standard)
(Superseded to BS-843792)

$104.99

$

In Stock, only 2 left!

0

Cub Cadet BS-807991

Piston Assy (.010 Oversize)

$

$

Not available

Cub Cadet BS-807992

Piston Assy (.020 Oversize)

$

$

Not available

Cub Cadet BS-807993

Piston Assy (.030 Oversize)

$

$

Not available

4

Cub Cadet BS-807889

Ring Set, Piston (Standard)
(Superseded to BS-843793)

$52.99

$

In Stock, only 3 left!

0

Cub Cadet BS-807994

Ring Set, Piston (.010 Oversize)

$40.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807995

Ring Set, Piston (.020 Oversize)

$

$

Not available

Cub Cadet BS-807996

Ring Set, Piston (.030 Oversize)

$35.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-805099

Lock, Piston Pin

$

$

Not available

6

Cub Cadet BS-807886

Pin Assy, Piston (Standard)

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-807900

Rod Assy, Connecting
(Superseded to BS-807900S)

$

$

Not available

Cub Cadet BS-807803

Rod, Connecting

Note: (.020 Undersize Crankpin Bore)

$65.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-805395

Screw, Connecting Rod
(Superseded to BS-690698)

$7.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-807542

Gear, Cam
(Superseded to BS-845649)

$184.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-805058

O-Ring (Oil pump)
(Superseded to BS-690681)

Note: (Included in Gasket Set BS-807887)

$5.99

$

In Stock, Qty 7

0

11

Cub Cadet BS-805312

Screen, Oil

$

$

Not available

12

Cub Cadet BS-805675

Gear, Timing

$

$

Not available

Cub Cadet BS-94196

Key, Timing Gear

$

$

Not available

13

Cub Cadet BS-805057

Screw, Sem
(Superseded to BS-691492)

$3.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-807546

Oil Pump Assy

$

$

Not available

15

Cub Cadet BS-805313

Slider, Governor
(Superseded to BS-690689)

$22.99

$

In Stock, only 1 left!

0
