545 RX - Husqvarna Brush Cutter BEVEL GEAR Parts Diagram

Brush Cutter

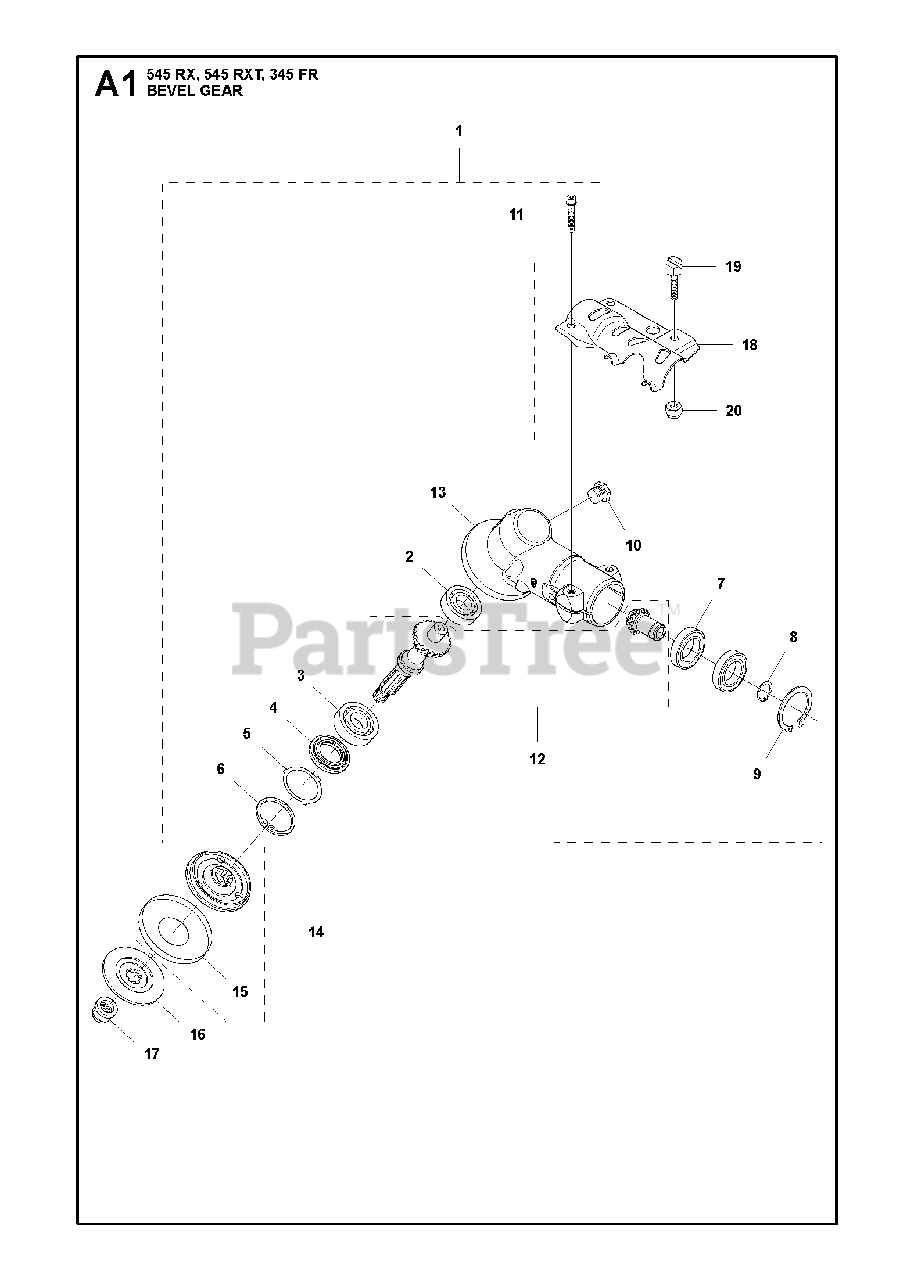

BEVEL GEAR Parts Diagram

  • Title

1

Husqvarna 502235201

GEAR ASSY

$302.99

$

In Stock, only 1 left!

0

2

Husqvarna 738210110

BALL BEARING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503250801

BALL BEARING

Note: . 1

$24.99

$

In Stock, Qty 9

0

4

Husqvarna 503261701

SEAL

Note: . 1

$14.99

$

In Stock, only 1 left!

0

5

Husqvarna 503758901

WASHER

Note: . 1

$2.23

$

In Stock, only 1 left!

0

6

Husqvarna 735313310

RETAINING RING SGH 35

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 738218712

BALL BEARING

Note: . 1

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 735311700

RETAINING RING SGA 15

Note: . 1

$5.99

$

In Stock, Qty 12

0

9

Husqvarna 735313110

RETAINING RING

Note: . 1

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 503201501

PLUG

Note: . 1

$9.99

$

In Stock, Qty 6

0

11

Husqvarna 503200225

SCREW

Note: . 1

$4.99

$

In Stock, Qty 15

0

12

Husqvarna 537290701

SPARE PARTS KIT

Note: . 1

$121.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502235101

GEAR HOUSING

Note: . 1

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 537351402

CARRIER

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537292401

RP TUBE INSERT
(Superseded to 537240301)

Note: . 14

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 502291101

NUT BLADE

$7.99

$

In Stock, Qty 10

0

18

Husqvarna 503954501

BRACKET
(Superseded to 503954503)

$

$

Not available

19

Husqvarna 537189501

SCREW

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0
