545 RX - Husqvarna Brush Cutter CRANKCASE Parts Diagram

Brush Cutter

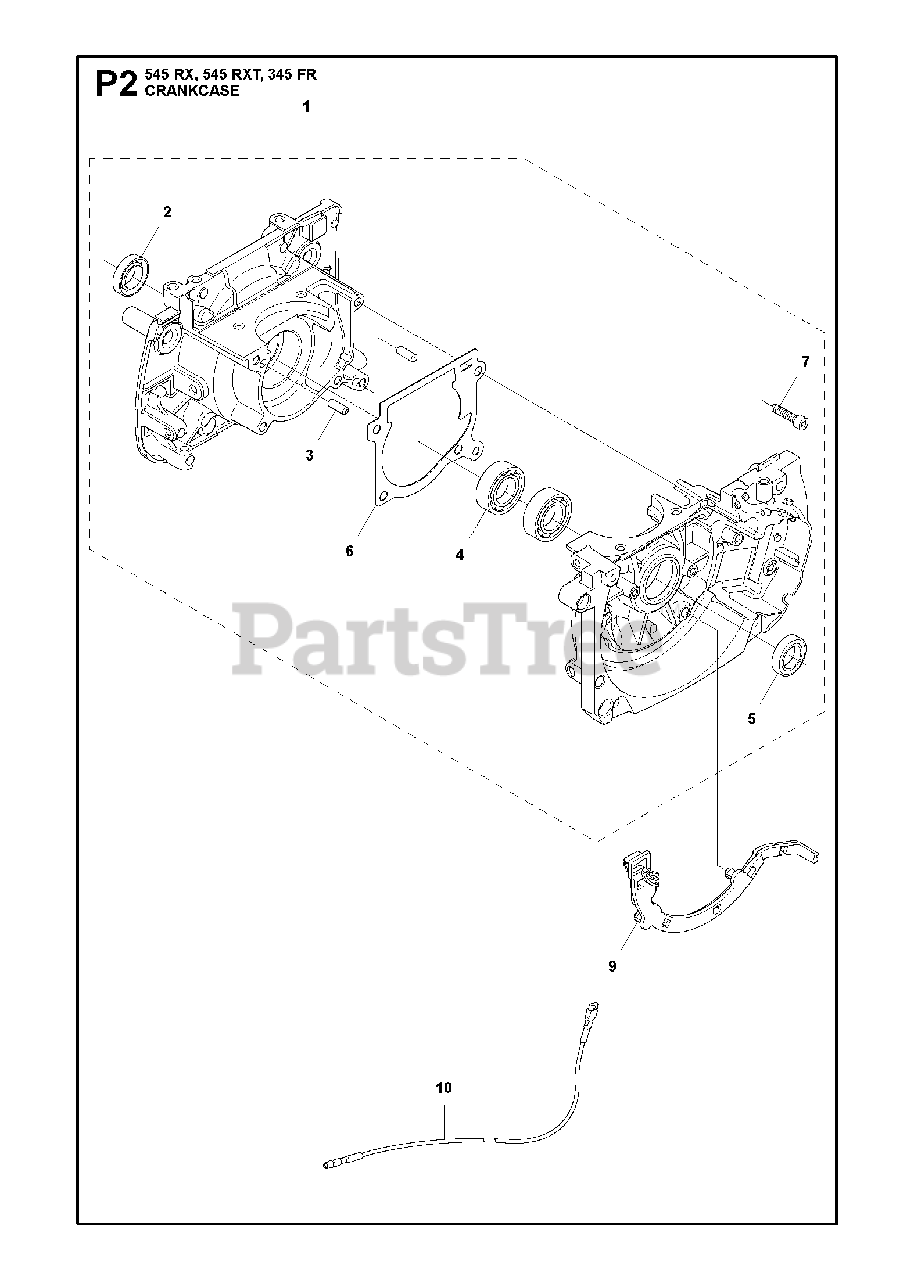

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 585470201

CRANKCASE
(Superseded to 588676301)

Note: s /n up to- 20151601100

$

$

Not available

1

Husqvarna 588676301

CRANKCASE ASSY SPARE PART KIT

Note: s /n from 20151601101-

$

$

Not available

2

Husqvarna 577324901

RADIAL SEAL

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 720130710

PIN 5X14

Note: s /n up to 20132699999. 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501270801

SLEEVE

Note: s /n from 20132700001. 1

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503250801

BALL BEARING

Note: . 1

$24.99

$

In Stock, Qty 9

0

5

Husqvarna 505275719

SEAL RING

Note: . 1

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 510241101

GASKET

Note: s /n up to 20132699999. 1

$

$

Not available

6

Husqvarna 587206801

GASKET CRANKCASE
(Superseded to 588574101)

Note: s /n from 20151601101-. 1

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 584469601

GASKET CRANKCASE

Note: s /n 20132700001- 20151601100. 1

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 725533355

SCREW MC6S 5X25

Note: . 1

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 510179901

CABLE HOLDER

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525858401

SHORT CIRCUIT CABLE

$7.99

$

Usually ships in 3-10 days

0
