5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower FC150V-ES23 Air Filter & Muffler Parts Diagram

21" Wide Area Walk-Behind Mower

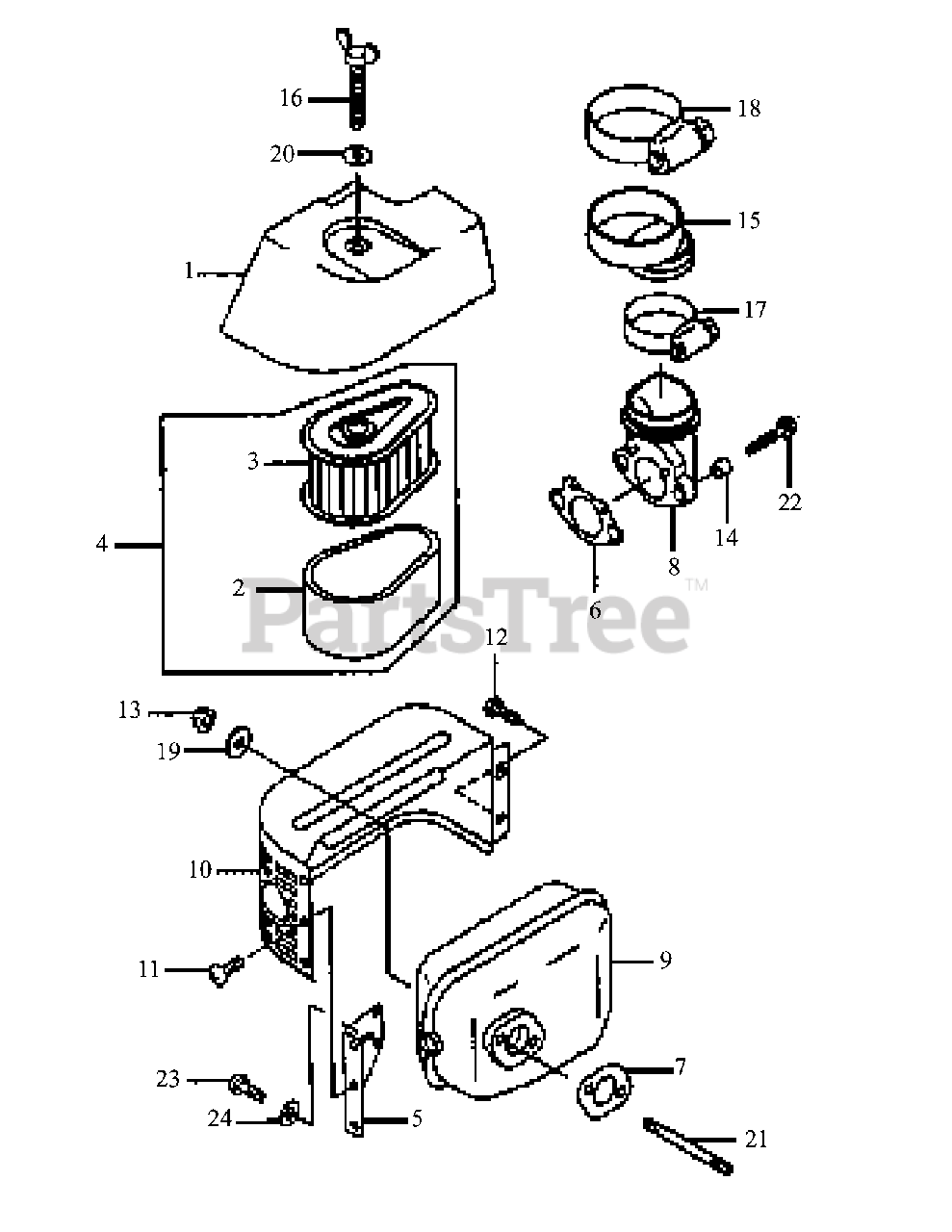

FC150V-ES23 Air Filter & Muffler Parts Diagram

  • Title

1

Cub Cadet KM-11012-2311

Cap Air Filter

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-11013-2174

Element, Air Filter

$10.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-11013-2175

Element, Air Filter
(Superseded to KM-11029-2010)

$21.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11029-2010

Element Assembly

$21.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-11049-2002

Bracket

$1.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-11060-2067

Gasket, Intake Pipe

$8.49

$

In Stock, Qty 8

0

7

Cub Cadet KM-11060-2401

Gasket, Muffler

$

$

Not available

8

Cub Cadet KM-16060-2182

Pipe, Intake

$

$

Not available

9

Cub Cadet KM-49070-2491

Muffler

$45.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-49106-2605

Cover, Muffler

$

$

Not available

11

Cub Cadet KM-92009-2166

Screw 5x8

$0.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

13

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet KM-92026-2272

Spacer 6.2x7.8x8

$0.99

$

In Stock, Qty 10

0

15

Cub Cadet KM-92059-2257

Tube

$3.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92150-2101

Bolt

Note: NLA

$1.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92170-2093

Clamp

Note: NLA

$9.99

$

In Stock, only 2 left!

0

18

Cub Cadet KM-92170-2094

Clamp

$

$

Not available

19

Cub Cadet KM-92200-2032

Washer, 7x21x2.3

$0.99

$

In Stock, only 3 left!

0

20

Cub Cadet KM-92200-2078

Washer, 6.5x18x2.0

$

$

Not available

21

Cub Cadet KM-172G0685

Bolt, Stud

$2.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-186AA0680

Bolt

$1.49

$

In Stock, Qty 7

0

23

Cub Cadet KM-214B0510

Screw

$

$

Not available

24

Cub Cadet KM-411B0500

Washer

$

$

Not available
