5521 (52A-390-150) - Cub Cadet 21" Wide Area Walk-Behind Mower FC150V-ES23 Fuel Delivery System Parts Diagram

21" Wide Area Walk-Behind Mower

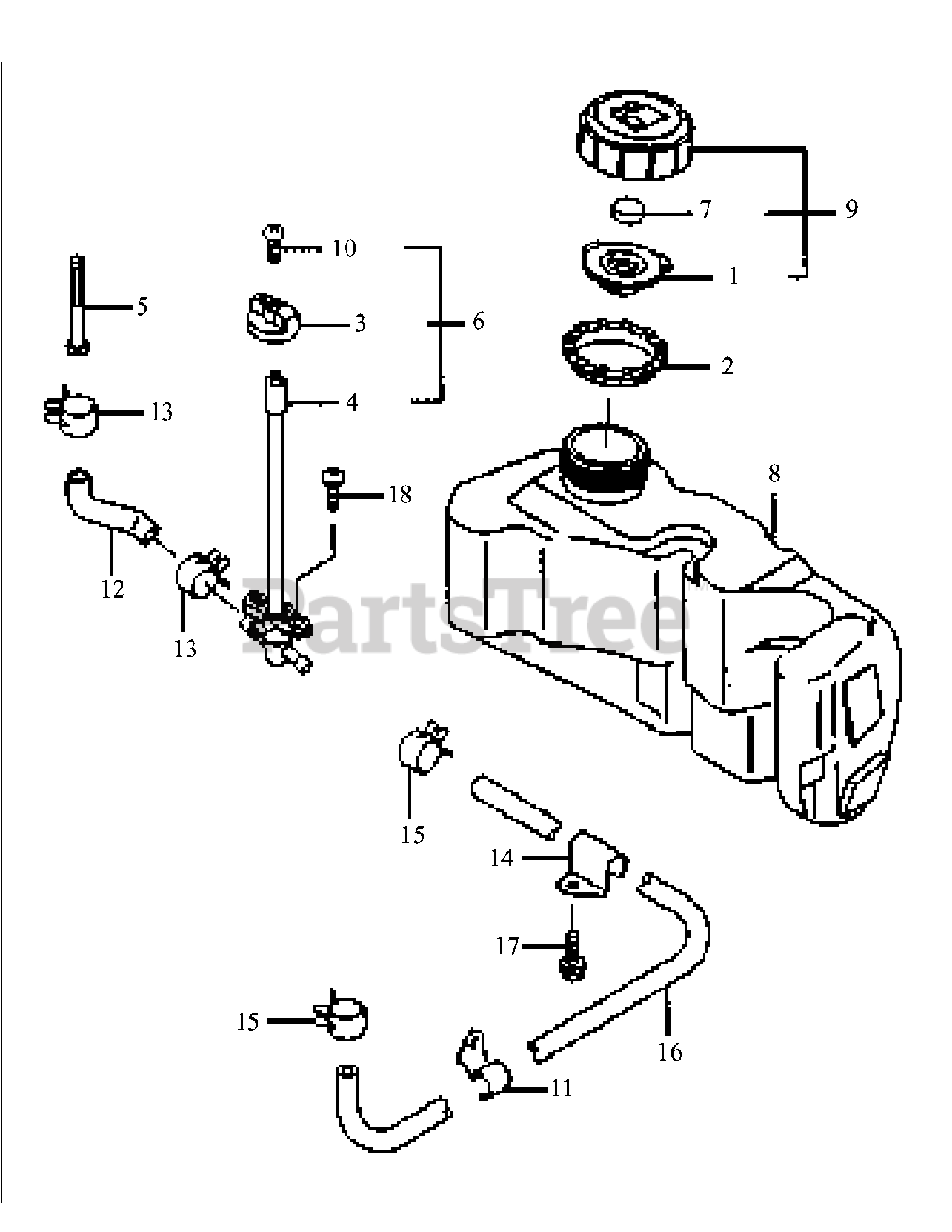

FC150V-ES23 Fuel Delivery System Parts Diagram

  • Title

1

Cub Cadet KM-11009-2831

Gasket

Note: NLA

$2.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13070-2077

Guide

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13168-2303

Knob

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-16104-2052

Filter Complete

Note: NLA

$

$

Not available

5

Cub Cadet KM-49019-2091

Fuel, Filter

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-49019-2094

Filter, Fuel

Note: NLA

$

$

Not available

7

Cub Cadet KM-49109-2054

Element, Breather

$0.99

$

In Stock, only 3 left!

0

8

Cub Cadet KM-51001-2214

Tank, Fuel

$

$

Not available

9

Cub Cadet KM-51048-2069

Cap, Fuel

$8.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-92009-2296

Screw

$1.49

$

In Stock, only 2 left!

0

11

Cub Cadet KM-92037-2202

Clamp

$

$

Not available

12

Cub Cadet KM-92059-2262

Tube

$

$

Not available

13

Cub Cadet KM-92170-2009

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 12

0

14

Cub Cadet KM-92170-2037

Clamp

$

$

Not available

15

Cub Cadet KM-92170-2043

Clamp

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92190-2068

Tube 4.8x10.3x430

$

$

Not available

17

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-233B0510

Screw

$

$

Not available
