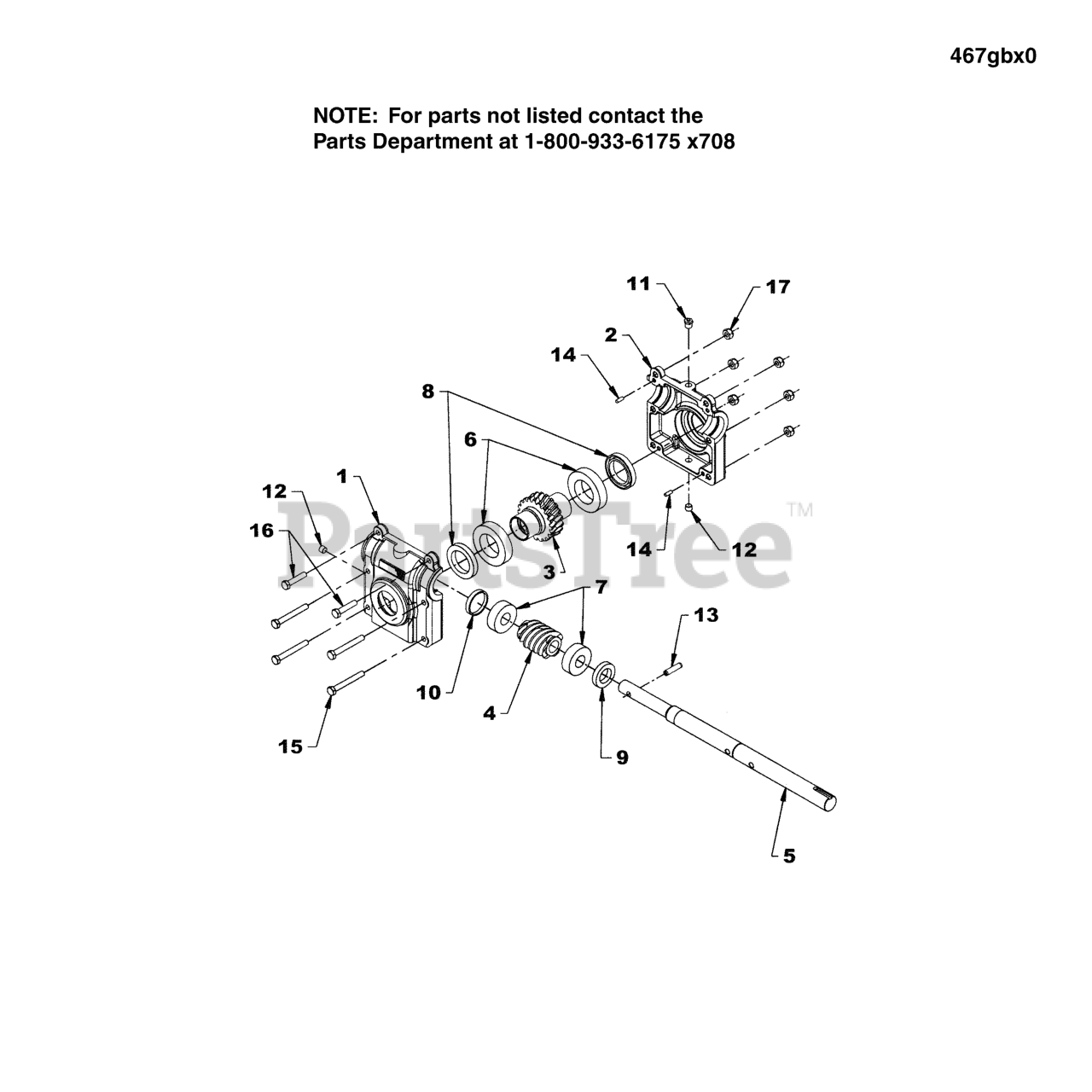

5600384 - Snapper Pro 60" Snowblower for 800X Worm Gearbox - 4500037 Parts Diagram

60" Snowblower for 800X

Worm Gearbox - 4500037 Parts Diagram

  • Title

1A

Casing kit (items 1 and 2)

Note: 4500021

$

$

Not available

1

Left casing

Note: ------

$

$

Not available

2

Right casing

Note: ------

$

$

Not available

2A

Worm and gear kit (items 3 and 4)

Note: 4500020

$

$

Not available

3

Gear

Note: ------

$

$

Not available

4

Worm

Note: ------

$

$

Not available

5

Driving shaft

Note: 4500036

$

$

Not available

6

Bearing

Note: 661147

$

$

Not available

7

Bearing

Note: 663234

$

$

Not available

7A

Snapper Pro 5665775

Seal kit (item 8 and 9)

Note: 665775

$55.99

$

Usually ships in 2-12 days

0

8

Seal

Note: ------

$

$

Not available

9

Seal

Note: ------

$

$

Not available

10

Cap

Note: 661150

$

$

Not available

11

Breather 1/8" NPT, 5 PSI, PTD

Note: 654927

$

$

Not available

12

Plug 1/8" NPT, PTD

Note: 656090

$

$

Not available

13

Spring pin 5/16" dia. x 1 1/4" lg.

Note: 663243

$

$

Not available

14

Dowel pin 3/16" dia. x 1/2" lg.

Note: 663245

$

$

Not available

15

Hex. bolt 5/16" NC x 2 1/2" lg., PTD

Note: 100026

$

$

Not available

16

Hex. bolt 5/16" NC x 1 1/2" lg., PTD

Note: 100021

$

$

Not available

17

Nylon insert locknut 5/16" NC, PTD

Note: 1000005

$

$

Not available
