5601147 - Ferris 2-Bag Hard Top Grass Collection System Kit Boot, Blades, Baffle, and Hose Group Parts Diagram

2-Bag Hard Top Grass Collection System Kit

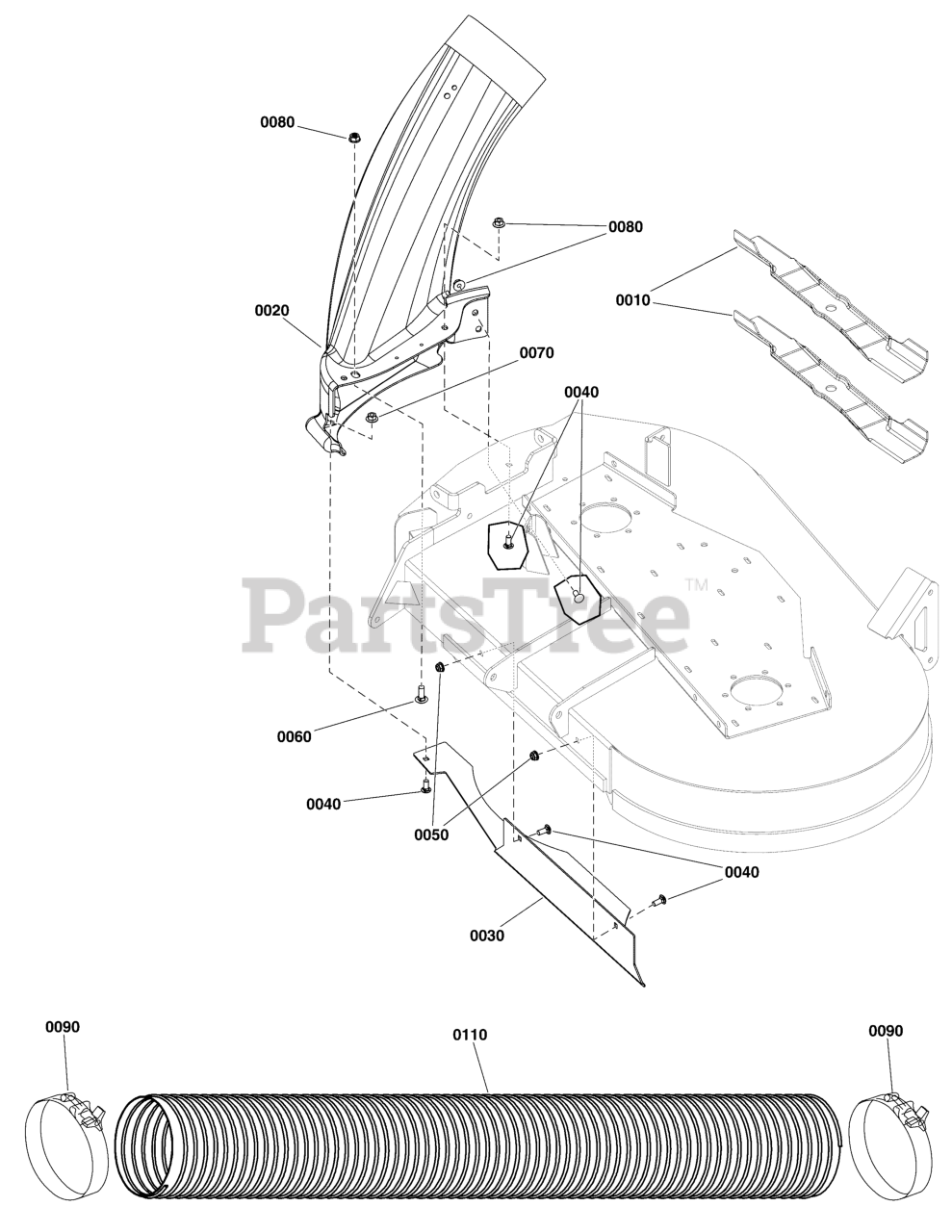

Boot, Blades, Baffle, and Hose Group Parts Diagram

  • Title

0010

Ferris 5107577X2

BLADE SET, HIGH LIFT, 22.3" LG (2)
(Superseded to 5107577X2FS)

Note: (Set of 2 blades)

$80.99

$

In Stock, only 2 left!

0

0020

Ferris 1759077

BOOT, 42" FAB MOWER

$

$

Currently unavailable

0030

Ferris 5418826B

PLATE, BLOWOUT BAFFLE, 400S 44 - RED

$

$

Currently unavailable

0040

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

0050

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 80004497

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0070

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

0080

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5022876

CLAMP, HOSE, LOWER
(Superseded to 5022876SM)

$46.99

$

Usually ships in 2-12 days

0

0110

Ferris 5103646

HOSE, FLEXIBLE, 7" DIA. X 58"
(Superseded to 5103646YP)

$318.99

$

In Stock, only 1 left!

0
