56100 (732) - Toro Sportsman Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) ENGINE BRIGGS & STRATTON MODEL NO. 170705-1164 ELECTRIC START Parts Diagram

Sportsman Rear-Engine Riding Mower

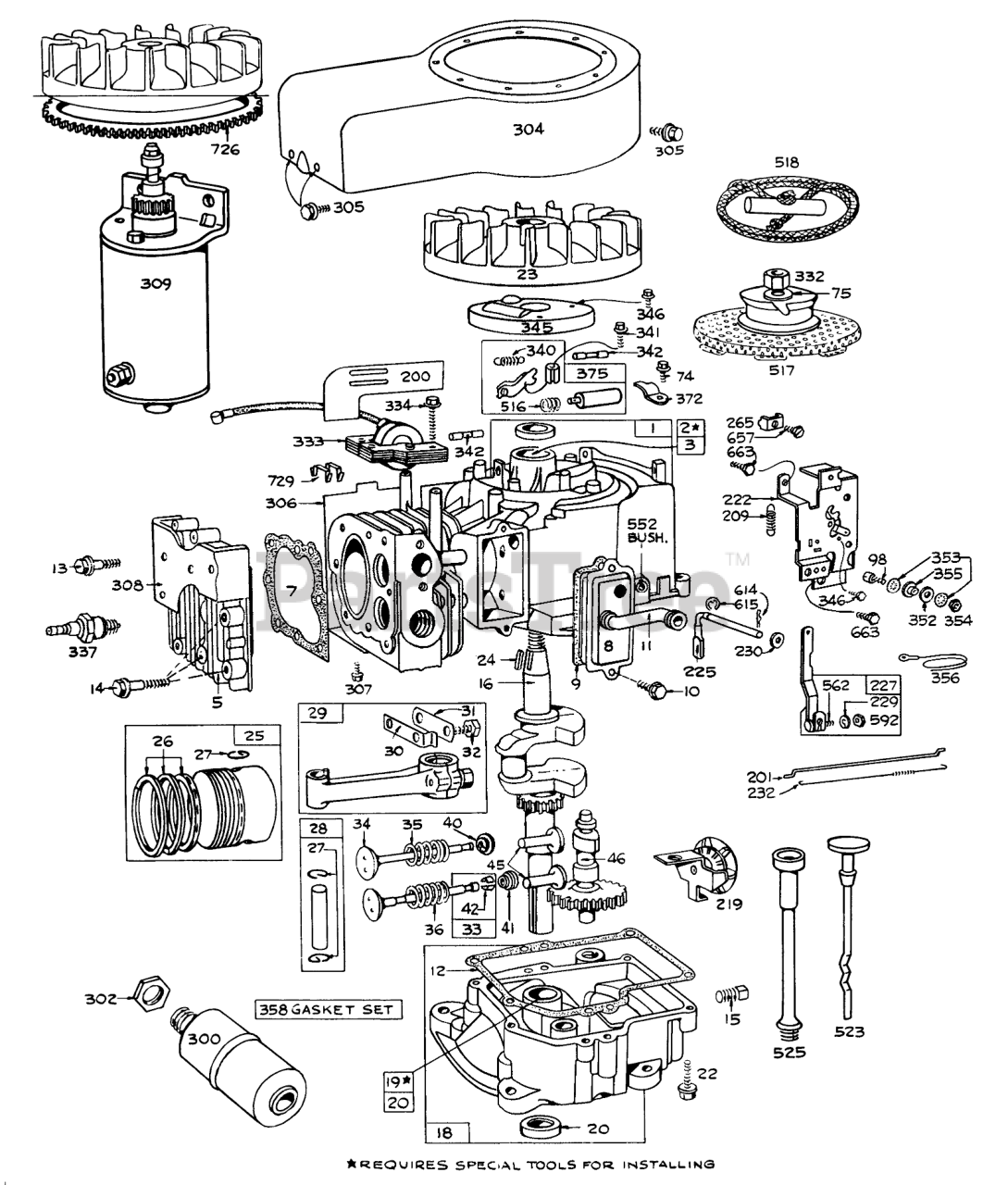

ENGINE BRIGGS & STRATTON MODEL NO. 170705-1164 ELECTRIC START Parts Diagram

  • Title

1

Toro 390380

Cylinder Assembly

$

$

Currently unavailable

2

Briggs & Stratton 295962

Bushing-Cylinder

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

5

Briggs & Stratton 211592

Head-CyIinder

$91.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270430

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 299848

Breather Assembly
(Superseded to 495737)

$

$

Not available

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93536

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Toro 28005

471C/72C/76D/79D/90

$3.23

$

Usually ships in 3-6 days

0

12

Briggs & Stratton 27750

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

12

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93210

Screw-Cylinder Head
(Superseded to 93210GS)

$14.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 260609

Crankshaft
(Superseded to 492476)

$385.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 298616

Sump-Oil
(Superseded to 392548)

$110.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing

$

$

Not available

20

Briggs & Stratton 298423

Seal-OiI
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 299375

Flywheel

$156.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 299573

Piston Assembly-Std.
(Superseded to 499907)

$

$

Not available

25

Briggs & Stratton 299566

Piston Assy.-.010" O.S.
(Superseded to 499908)

$

$

Not available

25

Briggs & Stratton 299567

Piston Assy.-.020" O.S.
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 299568

Piston Assembly .030" O.S. PISTON RING SETS: Note: For Chrome Piston Ring Set-std. size-order Part No. 299743.
(Superseded to 499910)

$

$

Not available

26

Toro 299569

Ring Set-Piston-Std. Consists of:

$

$

Currently unavailable

26

Toro 299570

Yoke Bushing

$

$

Currently unavailable

26

Toro 299571

Ring Set-Piston-.020" O.S. Consists of:

$

$

Currently unavailable

26

Toro 299572

Ring Set-Piston-.030" O.S. Consists of:

$

$

Currently unavailable

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Assembly-Piston-Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 295839

Rod Assy.-Connecting

$31.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 221725

Dipper-Conn. Rod

$0.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 220811

Lock-Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

Screw Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, Qty 6

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210728

Gear-Cam
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270538

Gasket-Carburetor Mtg.
(Superseded to 692915)

Note: Included in Gasket Set-Part No. 299577

$5.49

$

In Stock, only 1 left!

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260971

Link-Govemor

$8.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261129

Spring-Governor
(Superseded to 692529)

$8.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 298614

Oil Slinger, Gov. Gear and Bracket Assembly

$18.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 390662

Plate-Gov. Control
(Superseded to 396349)

$

$

Not available

225

Briggs & Stratton 230759

Shaft-Gov Lever
(Superseded to 231071)

$7.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 298303

Lever Assy.-Governor

$7.49

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 260584

Spring-Governor Link
(Superseded to 692207)

$6.99

$

In Stock, only 3 left!

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

300

Briggs & Stratton 294599

Muffler-Exhaust
(Superseded to 294599S)

$16.99

$

In Stock, only 1 left!

0

302

Briggs & Stratton 91242

Locknut-Muffler
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

304

Briggs & Stratton 299392

Housing-Blower
(Superseded to 491592)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 221898

Screw-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 221901

Cover-Cylinder Head

$9.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 390307

Motor-Starting

$

$

Not available

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Plug Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 11

0

345

Briggs & Stratton 222117

Cover-Breaker Point

$5.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Insulating

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Collar-Insulating

$5.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 299500

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

517

Briggs & Stratton 295423

Pulley-Rope Starter (with screen)
(Superseded to 496084)

$173.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope-Starter
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

523

Toro 390212

Cap and Dipstick-Oil Filler

$

$

Currently unavailable

525

Toro 390217

Tube-Oil Filler

$

$

Currently unavailable

552

Briggs & Stratton 230927

Bushing-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 299543

Gear, Ring (Includes mounting parts)

$204.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0
