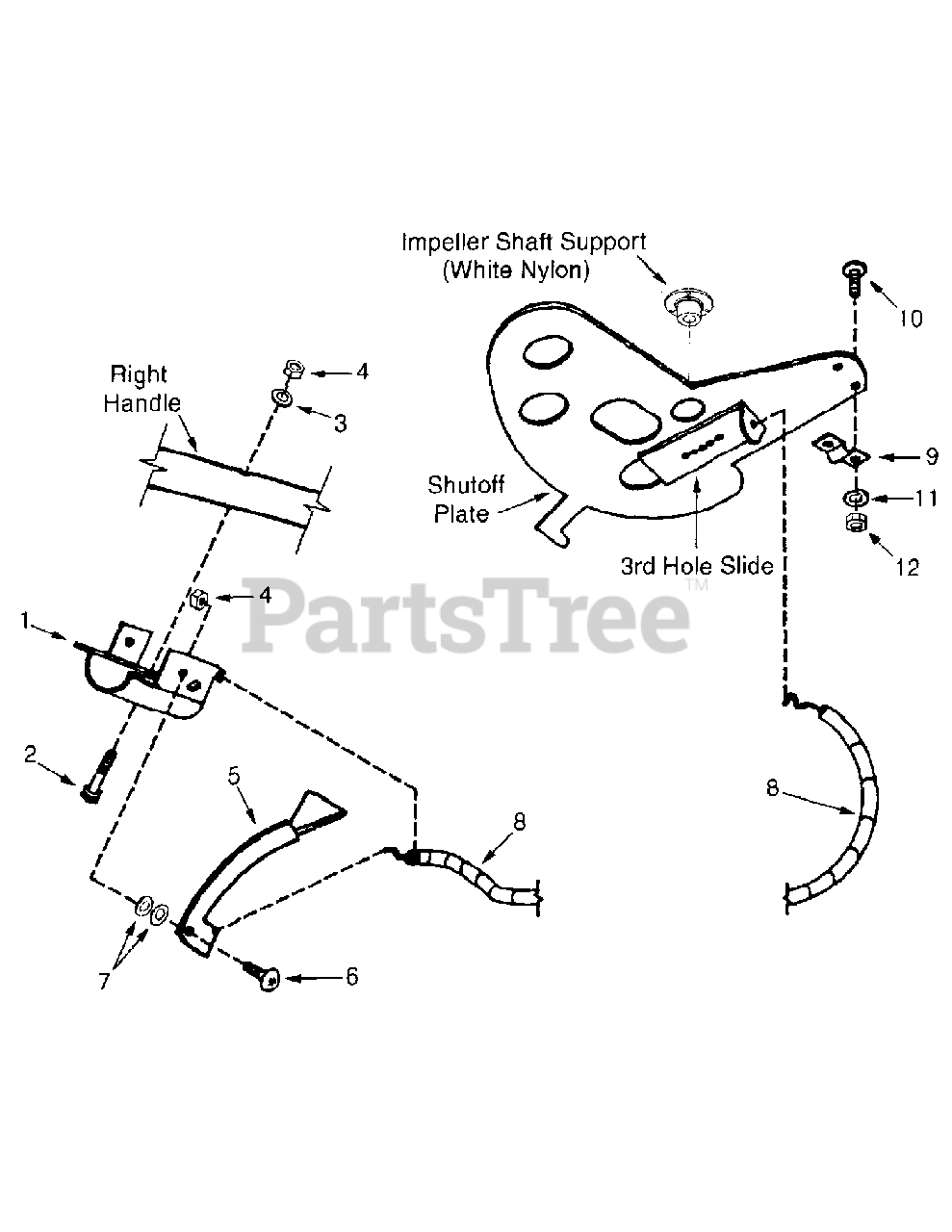

56A-447-195 - MTD Pro Spreader Optional Remote 3rd Hole Slide Parts Diagram

Pro Spreader

Optional Remote 3rd Hole Slide Parts Diagram

  • Title

1

MTD 00030417

Bracket, Dual Lever
(Superseded to 00030418)

Note: NLA

$42.99

$

Usually ships in 3-6 days

0

2

MTD 00060047

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

3

MTD 00060033

Flat Washer 1/4
(Superseded to 736-05152)

$7.49

$

Usually ships in 3-6 days

0

4

MTD 712-0324

Hex Nut, 1/4-20 Nylock

$3.49

$

In Stock, Qty 20+

0

5

MTD 00030416

Lever, Dual Remote

$24.99

$

In Stock, Qty 16

0

6

MTD 00060057

Machine Screw

$4.99

$

Usually ships in 3-6 days

0

7

MTD 00018628

Flat Washer, 1/4 Nylon

$3.49

$

Usually ships in 3-6 days

0

8

MTD 00030450

Control Cable
(Superseded to 00030450P)

$25.99

$

In Stock, Qty 10

0

9

MTD 00020511

Cable Clamp

$11.99

$

In Stock, only 3 left!

0

10

MTD 00031686

Machine Screw

$6.49

$

Usually ships in 3-6 days

0

11

MTD 00060083

Lock Washer #8

$3.49

$

Usually ships in 3-6 days

0

12

MTD 00060056

Hex Nut, #8-32

$6.49

$

In Stock, only 1 left!

0
