56A703QR750 - Cub Cadet 200 Gallon Sprayer (2010 & Before) Tank & Frame Assembly Parts Diagram

200 Gallon Sprayer

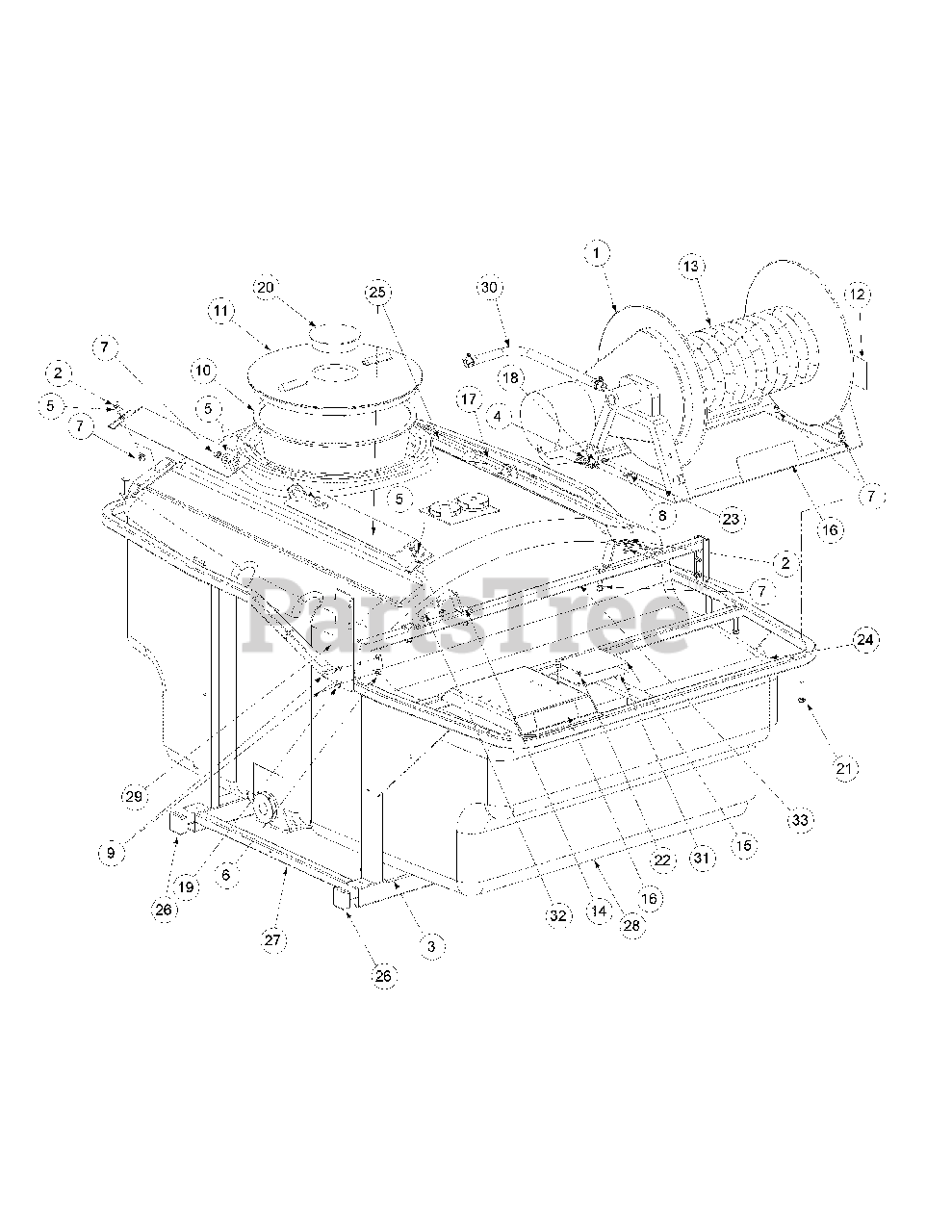

Tank & Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 01003359P

Electric Hose Reel

$

$

Not available

2

Cub Cadet 00006144

Capscrew, 3/8-16 x 1

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00008382

Adhesive Foam, 4" (sold by the foot)

$

$

Not available

4

Cub Cadet 00010628

Terminal Ring, 3/8

$

$

Not available

5

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-0157

Cable Tie, 3/16 x 7

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet 00012382

Hex Cap Screw, 5/16-18, 1-1/2

$

$

Not available

10

Cub Cadet 00014343

Basket Strainer, 16"

$

$

Not available

11

Cub Cadet 01007968

Threaded Tank Lid, 16" w/ref. #20

$

$

Not available

12

Cub Cadet 00019178

Decal, Maximum Hose Length

$

$

Not available

13

Cub Cadet 00020199

Hose Assembly, 800 PSI, 1/2" x 300'

$727.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00020197

Hose Assembly, 600 PSI, 3/8" x 300’

$

$

Not available

14

Cub Cadet 01002011

Carriage Bolt, 3/8-16, 2

$

$

Not available

15

Cub Cadet 00030677

Decal, Safety Procedures

$

$

Not available

16

Cub Cadet 777D09157

Decal, 2-3/8 x 7-1/8

$

$

Not available

17

Cub Cadet 00035881

Capscrew, 3/8-16 x 5

$

$

Not available

18

Cub Cadet 00060033

Flat Washer, 1/4
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00009812

Flat Washer, 5/16"

$

$

Not available

20

Cub Cadet N/A

Vent Check Ball

$

$

Currently unavailable

21

Cub Cadet 710-0347

Capscrew, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0599

Hex Index Washer Screw, 1/4-20, 1/2 Long

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 01002319

Wiring Harness

$

$

Not available

24

Cub Cadet 01004125

Label, Clear Overlayment

$

$

Not available

25

Cub Cadet 01004536

200 Gallon Poly Tank Strap

$

$

Not available

26

Cub Cadet 01005160

Square Tube Plug

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01005185-0637

Main Frame Assembly
(Superseded to 01005200)

$

$

Not available

28

Cub Cadet 01005222

200 Gallon Poly Pick-up Tank

$

$

Not available

29

Cub Cadet 01005506-0637

Strainer Manifold Mount Bracket

$

$

Not available

30

Cub Cadet 01005541

Pump To Reel Hose Assembly

$

$

Not available

31

Cub Cadet 01006351-0637

Safety Procedure Decal Plate

$

$

Not available

32

Cub Cadet 01005335-0637

Tank Frame Mount Strap

$

$

Not available

33

Cub Cadet 01005543-0637

200 Gallon Pickup Mounting Strap

$

$

Not available
