56A843VK750 - Cub Cadet Commercial Turf Renovator Kawasaki FE250D-AS09 Piston & Crankshaft Parts Diagram

Commercial Turf Renovator

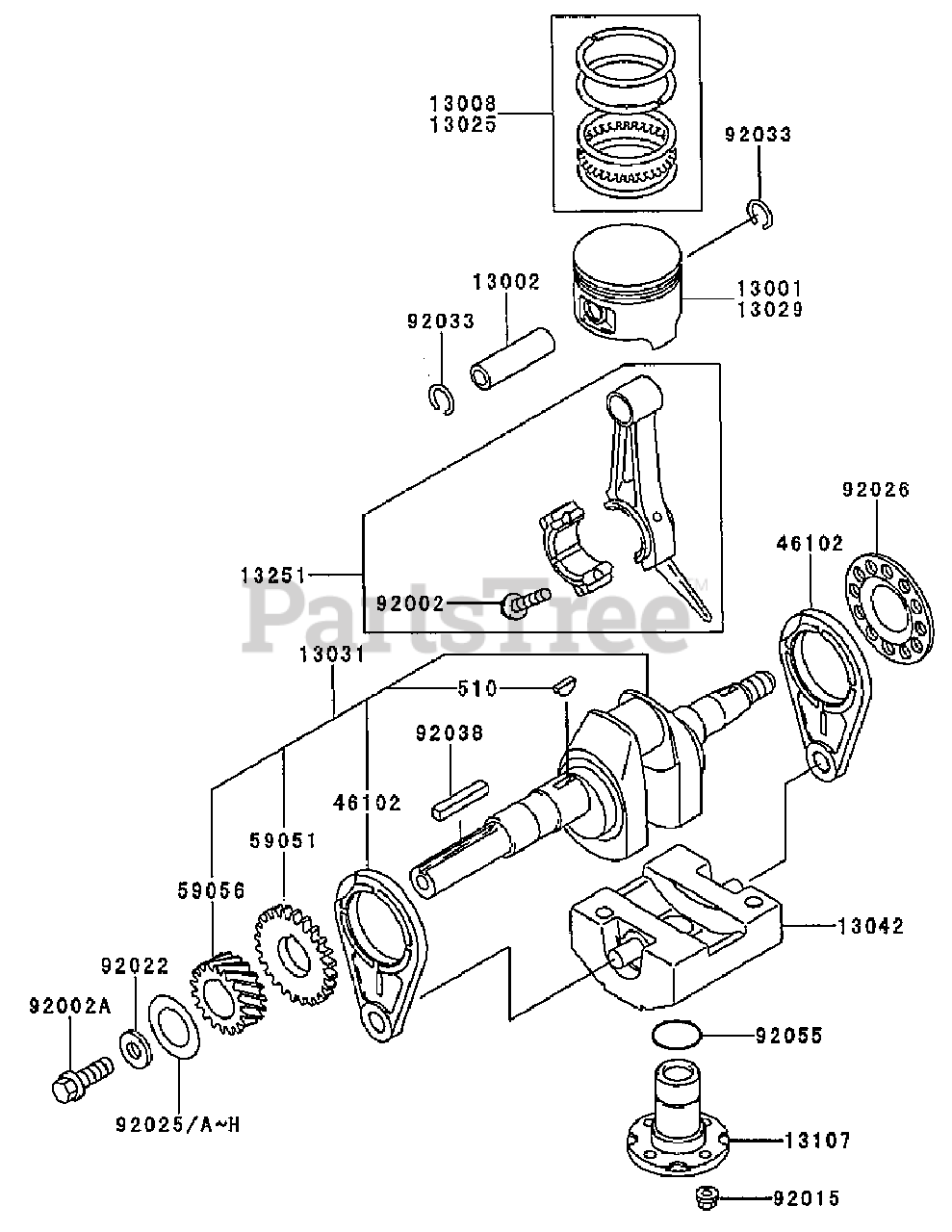

Kawasaki FE250D-AS09 Piston & Crankshaft Parts Diagram

  • Title

13001

Cub Cadet KM-13001-2128

Piston-Engine

$

$

Not available

13002

Cub Cadet KM-13002-2077

Pin-Piston

$10.99

$

Usually ships in 2-5 days

0

13008

Cub Cadet KM-13008-2055

Ring-Set-Piston

$44.99

$

Usually ships in 2-5 days

0

13025

Cub Cadet KM-13025-2097

Ring-Set-Piston L, 0.5

Note: (AR)

$44.99

$

In Stock, only 1 left!

0

13029

Cub Cadet KM-13029-2117

Piston-Engine L, 0.5

Note: (AR)

$

$

Not available

13031

Cub Cadet KM-13031-2058

Crankshaft Complete

$334.99

$

Usually ships in 2-5 days

0

13042

Cub Cadet KM-13042-6012

Weight

$125.99

$

Usually ships in 2-5 days

0

13107

Cub Cadet KM-13107-2088

Shaft

$21.99

$

In Stock, only 1 left!

0

13251

Cub Cadet KM-13251-6038

Rod-Assy-Connecting
(Superseded to KM-13251-2078)

$82.99

$

Usually ships in 2-5 days

0

46102

Cub Cadet KM-46102-2075

Rod

$34.99

$

Usually ships in 2-5 days

0

59051

Cub Cadet KM-59051-2097

Gear-Spur

$31.99

$

Usually ships in 2-5 days

0

59056

Cub Cadet KM-59056-2995

Gear-Helical

$50.99

$

Usually ships in 2-5 days

0

92002

Cub Cadet KM-92002-2053

Bolt

$6.99

$

Usually ships in 2-5 days

0

92002A

Cub Cadet KM-92002-2263

Bolt, 10 X 28

$1.99

$

In Stock, only 1 left!

0

92015

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 4 left!

0

92022

Cub Cadet KM-92022-2194

Washer

$4.49

$

Usually ships in 2-5 days

0

92025

Cub Cadet KM-92025-2168

Shim, T = 1.13

Note: (AR)

$4.49

$

Usually ships in 2-5 days

0

92025A

Cub Cadet KM-92025-2169

Shim, T = 1.18

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025B

Cub Cadet KM-92025-2170

Shim, T =1.23

Note: (AR)

$4.99

$

In Stock, only 1 left!

0

92025C

Cub Cadet KM-92025-2171

Shim, T = 1.28

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025D

Cub Cadet KM-92025-2172

Shim, T =1.33

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025E

Cub Cadet KM-92025-2173

Shim, T = 1.38

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025F

Cub Cadet KM-92025-2174

Shim, T =1.43

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025G

Cub Cadet KM-92025-2175

Shim, T = 1.48

Note: (AR)

$4.99

$

Usually ships in 2-5 days

0

92025H

Cub Cadet KM-92025-2207

Shim, T = 1.53

Note: (AR)

$4.99

$

In Stock, only 1 left!

0

92026

Cub Cadet KM-92026-2052

Spacer

$14.99

$

In Stock, only 1 left!

0

92033

Cub Cadet KM-92033-1099

Ring-Snap

$0.99

$

Usually ships in 2-5 days

0

92038

Cub Cadet KM-92038-2101

Key

$4.99

$

In Stock, only 1 left!

0

92055

Cub Cadet KM-92055-2072

Ring-O

$1.49

$

In Stock, Qty 20+

0

510

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 9

0
