56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Rear Fender Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

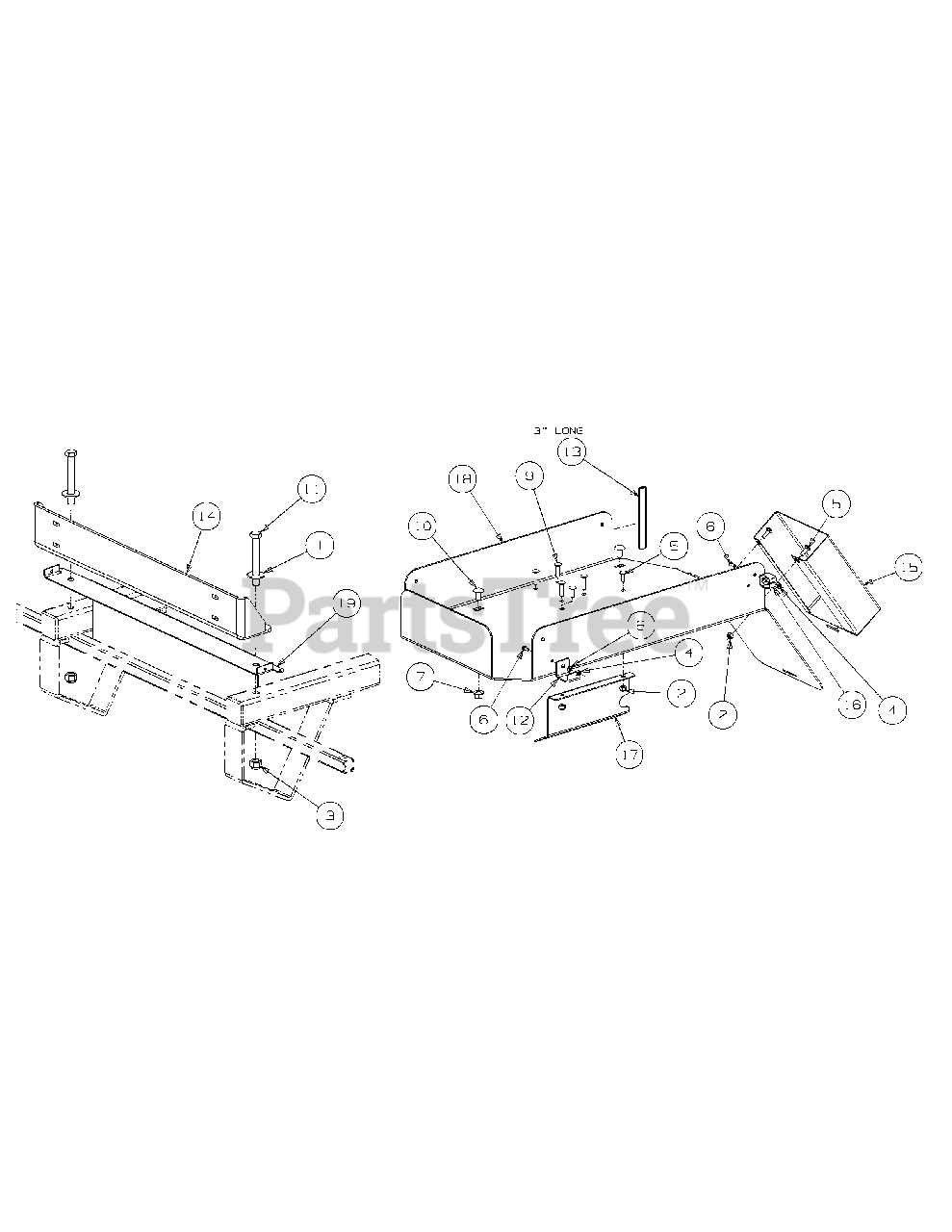

Rear Fender Assembly Parts Diagram

  • Title

1

Cub Cadet 00011459

Flat Washer, 1/2 Zinc

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x 3/4

$

$

Not available

6

Cub Cadet 00017778

Machine Screw, 10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030426

Flat Washer, #10, SS

$

$

Not available

9

Cub Cadet 00031602

Carriage Bolt, 1/4-20 x 1.00

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x 0.75 Long

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0786

Hex Head Capscrew, 1/2-13 x 4.00

$16.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01004109

Stop Bracket

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 01008915-0637

Rear Spray Bumper

$

$

Not available

15

Cub Cadet 01009237-0637

Spray Wand Hose Holder

$

$

Not available

16

Cub Cadet 01009281

Tool Holder

$

$

Not available

17

Cub Cadet 02005673

Electric Pump Cover

$

$

Not available

18

Cub Cadet 02005677

Pump Motor Plate

$

$

Currently unavailable

19

Cub Cadet 703-06714-0637

Heat Shield

$

$

Not available
