56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Seat Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

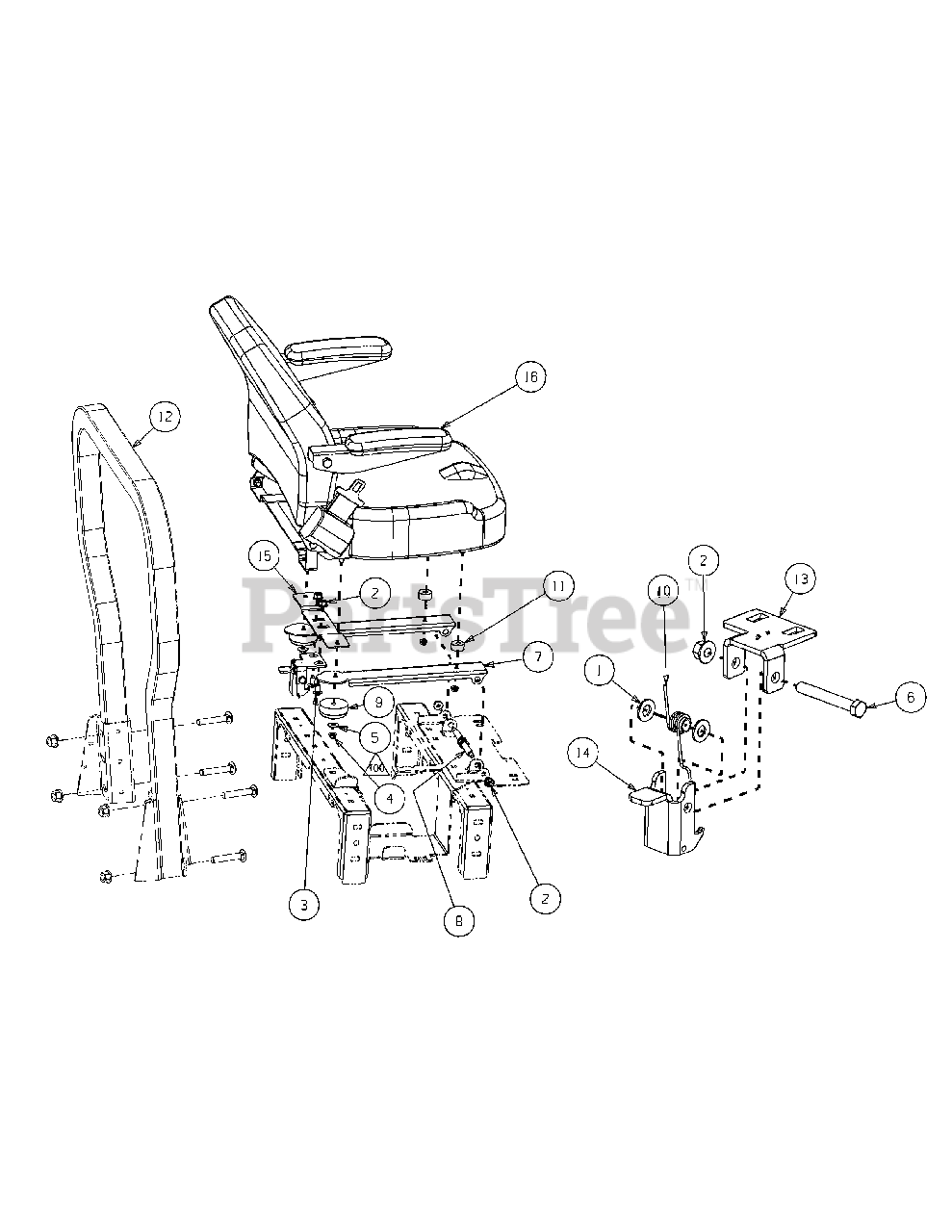

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00005530

Flat Washer, 3/8 Nylon
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-3004A

Nut, Hex 5/16-18 Flange Lock

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 936-0425

Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

6

Cub Cadet 710-3022

Hex Cap Screw 3/8-16 x 2.75

$4.99

$

In Stock, Qty 10

0

7

Cub Cadet 01002633-0637

Mounting Bracket, Seat

$48.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$25.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 18

0

10

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$34.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, Qty 20+

0

12

Cub Cadet 02004906

Rops Assembly includes:

$

$

Not available

13

Cub Cadet 02005147

Seat Latch Bracket

Variations

Cub Cadet 02005147-0637

BRACKET - SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 02005148

Seat Latch

$

$

Not available

15

Cub Cadet 703-06722-0637

Seat Latch Bracket

$

$

Not available

16

Cub Cadet 757-04080

Seat

$

$

Not available
