56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Spreader Frame Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

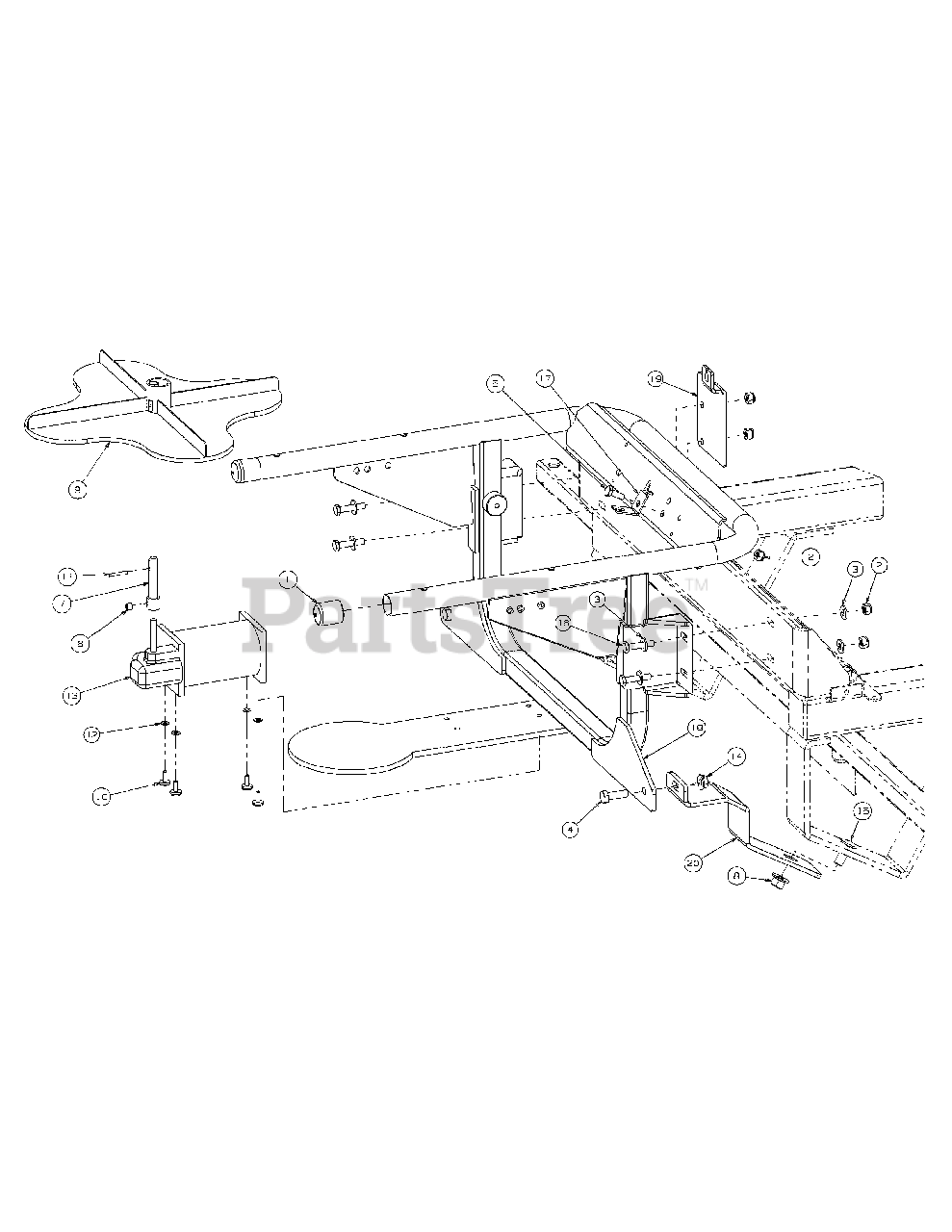

Spreader Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00011832

End Cap

$

$

Not available

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012154

Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

4

Cub Cadet 710-0376

HHCS, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 16

0

5

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20, .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00018890

Set Screw

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00020533

Motor impeller adapter

$44.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00030317

Impeller

$59.99

$

In Stock, only 2 left!

0

10

Cub Cadet 00031686

8-32 x 1/2Phil. Hd. Scr.

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00060069

Roll Pin

$4.99

$

In Stock, Qty 10

0

12

Cub Cadet 00060083

# 8 Star Lock Washer

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00070010P

Motor (12 volt)

$

$

Not available

14

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00 Long

$5.49

$

In Stock, Qty 9

0

16

Cub Cadet 01000913

HHCS, 1/4-20 x 1.25

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01008611

Brake Cable Mounting Bracket

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01008994-0637

Truckster Frame Assembly

$

$

Not available

19

Cub Cadet n/a

Deflector Cable Mounting Bracket

$

$

Currently unavailable

20

Cub Cadet 01009421-0637

Lower Support Brace

$

$

Not available
