570 (122-570-100) - Cub Cadet Walk-Behind Mower (1982) Top/Bottom Drive Frame and Connecting Link Assemblies Parts Diagram

Walk-Behind Mower

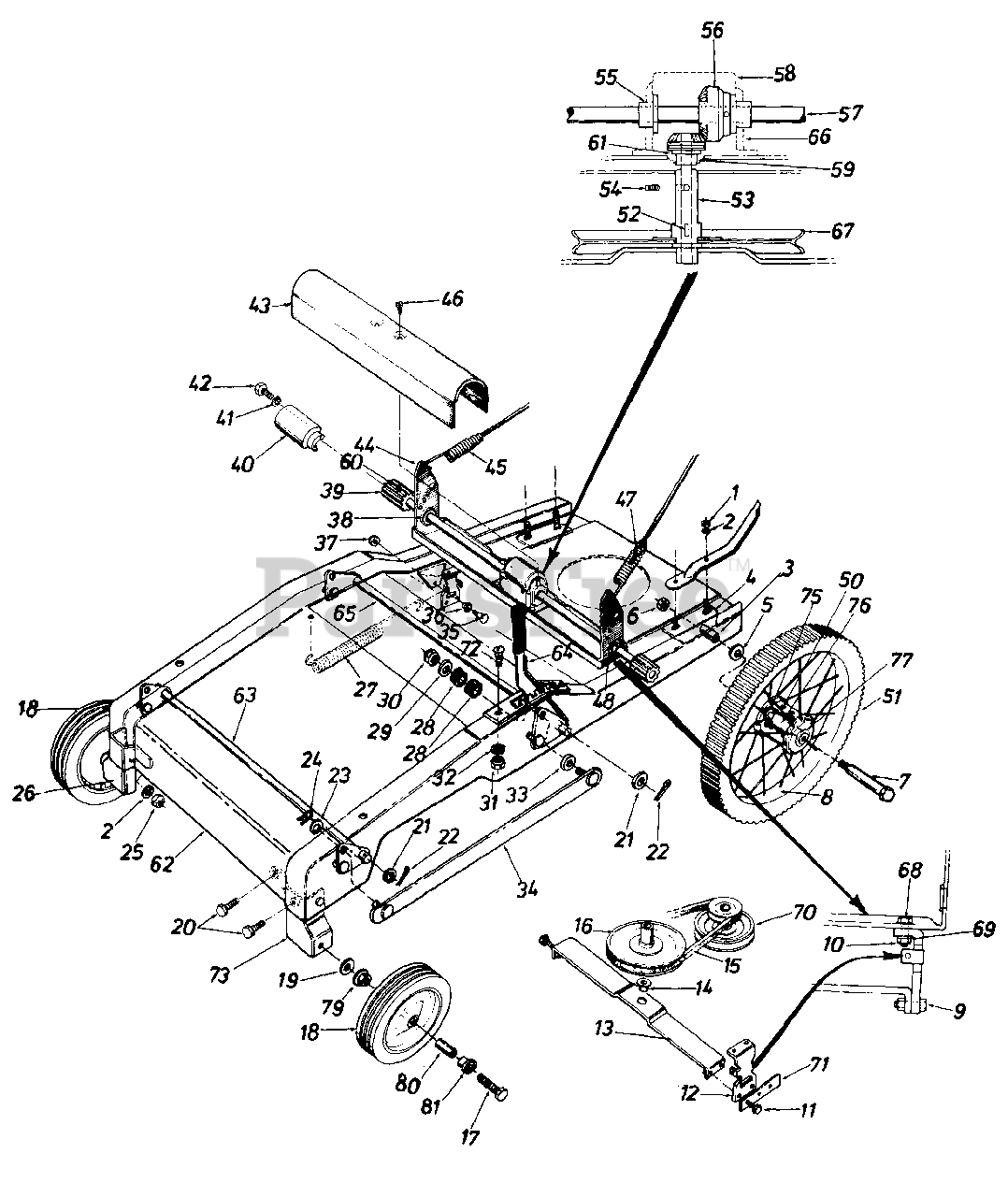

Top/Bottom Drive Frame and Connecting Link Assemblies Parts Diagram

  • Title

1

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 711-0425

Spacer - Rear Axle

$

$

Currently unavailable

4

Cub Cadet 10297

Rear Wheel Brkt. Ass'y.

$

$

Currently unavailable

5

Cub Cadet 736-0192

Fl-Wash. .53 I.D.

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 712-0181

Hex Top Lock Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 738-0114

Axle - Rear Wheel

$

$

Not available

8

Cub Cadet 734-0424

Wheel Ass'y. Complete

$

$

Currently unavailable

Cub Cadet 734-0180

Rim Only

$

$

Currently unavailable

9

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

10

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

12

Cub Cadet 10320

Bottom Drive Frame Plate

$

$

Currently unavailable

13

Cub Cadet 10328

Bottom Drive Frame Ass'y.

$

$

Not available

14

Cub Cadet 748-0226

Flange Bearing .503 I.D.

$

$

Currently unavailable

15

Cub Cadet 754-0143

3 V-Belt 28" Lg.

$

$

Not available

16

Cub Cadet 756-0155

1/2 V-Pulley .50 I.D. x 6.50 O.D.

$

$

Not available

17

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 734-0851

Front Wheel Ass'y. Comp.

$

$

Not available

19

Cub Cadet 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0198

Hex Sems Bolt 5/16-18 x .75 Lg.
(Superseded to 910-0198)

$

$

Not available

21

Cub Cadet 736-0272

Fl-Wash. .53 I.D. x 1.00 O.D. x .06

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 714-0115

Cotter Pin 1/8 Dia. x 1.00 Lg.

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0272

Fl-Wash. .53 I.D. x 1.00 O.D. x .06

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 10294

Front Wheel Brkt. Ass'y. - R.H.

$

$

Currently unavailable

27

Cub Cadet 732-0206

Extension Spring .56 O.D. x 8.25 Lg.

$

$

Not available

28

Cub Cadet 735-0126

Rubber Washer .33 I.D. x .88 O.D. x .32
(Superseded to 735-0126A)

$

$

Not available

29

Cub Cadet 736-0300

Fl-Wash. .40 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 7

0

31

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0235

Fl-Wash. .40 I.D. x 1.25 O.D. x .164
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 20+

0

34

Cub Cadet 15331

Connecting Link Ass'y.

Note: Code N

$

$

Not available

35

Cub Cadet 738-0234

Shld. Bolt .500 Dia. x .294

$10.99

$

In Stock, only 4 left!

0

36

Cub Cadet 748-0180

Pivot Slide

$

$

Not available

37

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 741-0138

Flange Ball Bearing .63 I.D. x 1.38 O.D. x .44

$

$

Not available

39

Cub Cadet 748-0182

Drive Pinion

$

$

Not available

40

Cub Cadet 10289

Pinion Cover

$

$

Not available

41

Cub Cadet 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-0224

Hex AB-Tap Scr. #10 x .50 Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 1 left!

0

43

Cub Cadet 08100

Top Drive Frame Cover

$

$

Not available

44

Cub Cadet 10321

Top Drive Frame

$

$

Currently unavailable

45

Cub Cadet 732-0305

Extension Spring .96 O.D. x 2.12 Lg.

$

$

Not available

46

Cub Cadet 710-0227

Hex AB-Tap Scr. #8 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0324

Hex Elastic Stop Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 711-0169

Collar 5/8 I.D.

$

$

Not available

50

Cub Cadet 718-0132

Oil Cap

$

$

Not available

51

Cub Cadet 734-0391

Tire Only 16 x 1.75

$

$

Not available

52

Cub Cadet 714-0229

#2 Woodruff Key

$

$

Not available

53

Cub Cadet 10254

Pinion Ass'y.

$

$

Not available

54

Cub Cadet 710-0421

Set Screw 5/16-18 x .25 Cup

$

$

Not available

55

Cub Cadet 748-0110

Flange Bearing .630 I.D.

$8.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 748-0135

Bevel Gear

$

$

Not available

57

Cub Cadet 10322

Drive Shaft

$

$

Not available

58

Cub Cadet 08187

Gear Box Cover

$

$

Currently unavailable

59

Cub Cadet 748-0269

Flange Bearing 1/2" Dia.
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 8

0

60

Cub Cadet 715-0120

Roll Pin 3/16 Dia. x 1.0 Lg.

$10.99

$

In Stock, only 2 left!

0

61

Cub Cadet 735-0193

O-Ring

$

$

Not available

62

Cub Cadet 15326

26" Deck

Note: Code N

$

$

Currently unavailable

63

Cub Cadet 15329

Lift Bracket Shaft Ass'y.

Note: Code N

$

$

Currently unavailable

64

Cub Cadet 15342

Lift Handle

Note: Code N

$

$

Not available

65

Cub Cadet 15329

Lift Bracket Shaft Ass'y.

Note: Code N

$

$

Currently unavailable

66

Cub Cadet 717-0108

Gear Box
(Superseded to 753-0218)

$

$

Not available

67

Cub Cadet 756-0155

1/2 V-Pulley .50 I.D. x 6.50 O.D.

$

$

Not available

68

Cub Cadet 710-0198

Hex Sems Bolt 5/16-18 x .75 Lg.
(Superseded to 910-0198)

$

$

Not available

69

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 756-0154

Two-Step Engine Pulley

$

$

Not available

71

Cub Cadet 10883

Stop-Drive Frame

$

$

Currently unavailable

72

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62 Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 10293

Front Wheel Brkt. Assembly - L.H.

$

$

Currently unavailable

75

Cub Cadet 741-0138

Flange Ball Brg. .63 I.D. x 1.38 O.D. x .44

$

$

Not available

76

Cub Cadet 711-0426

Wheel Spacer

$

$

Currently unavailable

77

Cub Cadet 741-0138

Flange Ball Brg. .63 I.D. x 1.38 O.D. x .44

$

$

Not available

79

Cub Cadet 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 2 left!

0

80

Cub Cadet 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available
