570 AutoTune - Husqvarna Chainsaw (2013-03) CYLINDER PISTON Parts Diagram

Chainsaw

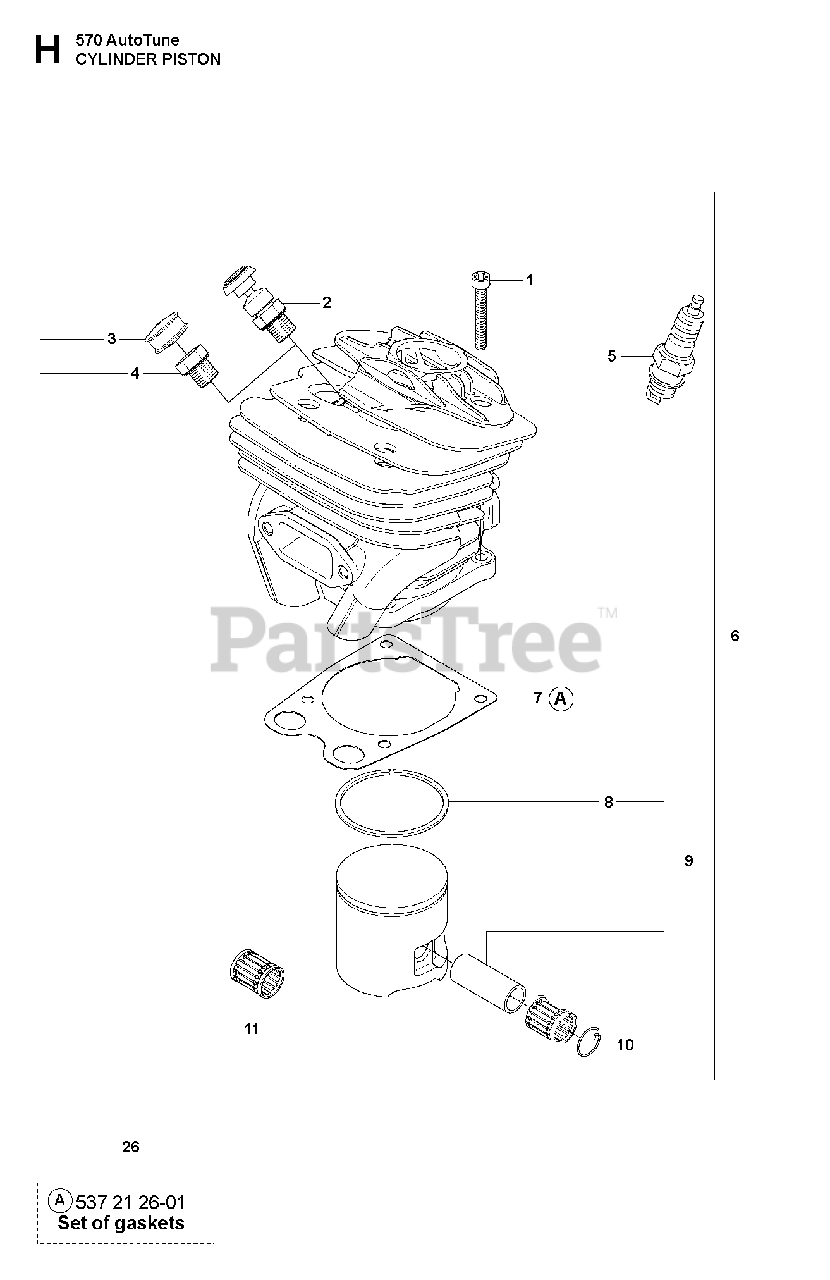

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 537294401

VALVE
(Superseded to 584288701)

$67.99

$

In Stock, only 2 left!

0

3

Husqvarna 537207101

PLUG

Note: . 6

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503552201

CYLINDER PLUG

Note: . 6

$13.99

$

In Stock, only 3 left!

0

5

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 525839402

CYLINDER

$241.99

$

In Stock, only 1 left!

0

7

Husqvarna 537208001

GASKET

Note: . 26

$8.99

$

In Stock, Qty 8

0

8

Husqvarna 503289046

PISTON RING
(Superseded to 537401501)

Note: . 6 9

$26.99

$

In Stock, only 2 left!

0

9

Husqvarna 537254702

PISTON 49 MM

Note: . 6

$169.99

$

Usually ships in 3-10 days

0

10

Husqvarna 737431200

WRIST PIN CLIP

Note: . 6 9

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 503255601

SUPPORT BUSHING

Note: . 6

$21.99

$

In Stock, Qty 6

0

26

Husqvarna 537212601

GASKET SET

Note: set of gaskets

$31.99

$

In Stock, only 1 left!

0
