570 - Husqvarna Chainsaw (2009-08) Fuel Tank Parts Diagram

Chainsaw

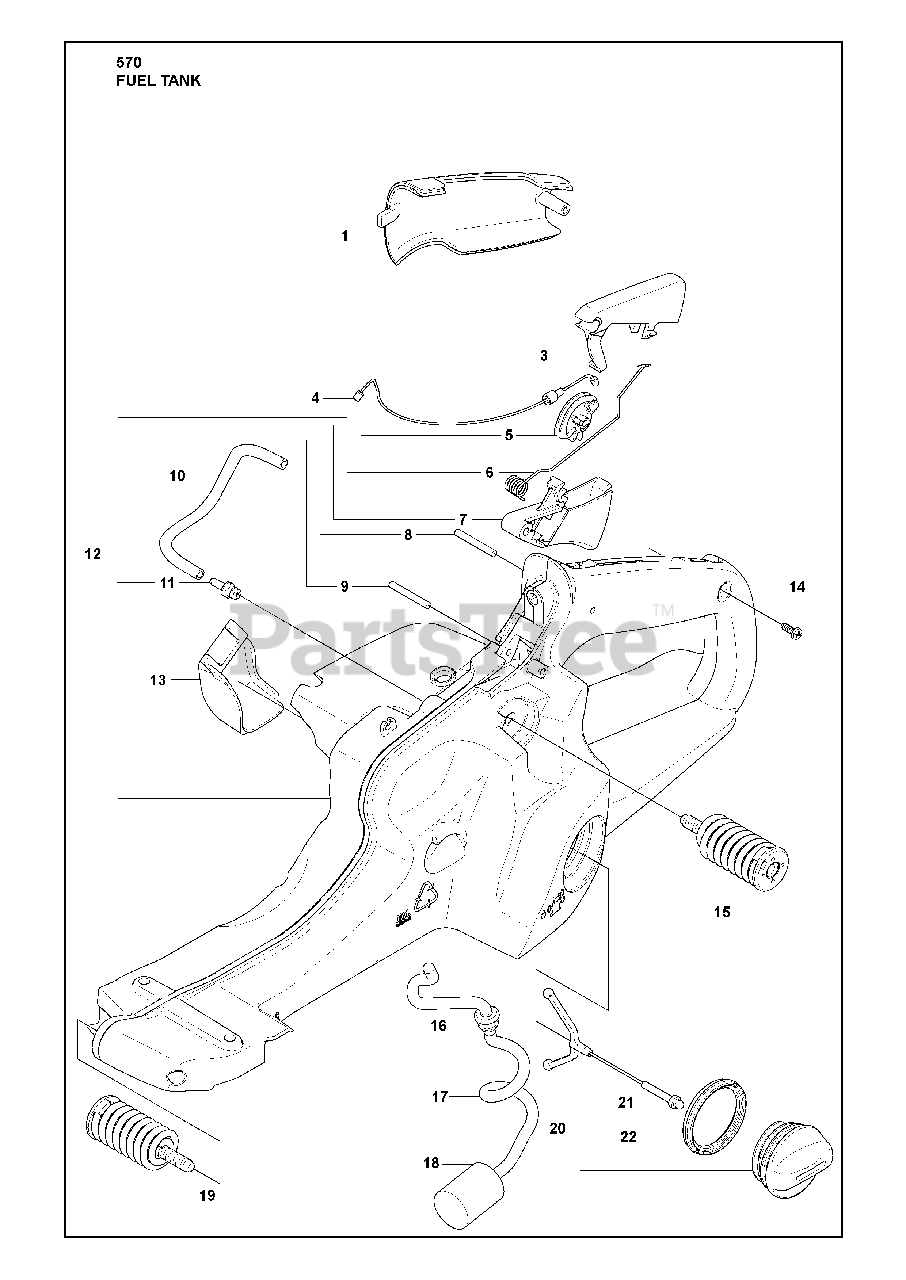

Fuel Tank Parts Diagram

  • Title

1

Husqvarna 537205501

COVER

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 537208401

THROTTLE LOCK

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 537211101

THROTTLE WIRE

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537208501

LEVER

$9.99

$

In Stock, Qty 12

0

6

Husqvarna 537209801

SPRING

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 537208301

THROTTLE TRIGGER

$11.99

$

In Stock, only 2 left!

0

8

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 544324906

HOSE
(Superseded to 581756106)

$8.99

$

In Stock, Qty 9

0

11

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$15.99

$

In Stock, Qty 20+

0

12

Husqvarna 537213504

TANK UNIT

$170.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537205701

PROTECTOR

$6.99

$

In Stock, Qty 12

0

14

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 537210301

VIBRATION ABSORBER

Note: Std

$34.99

$

In Stock, Qty 6

0

15

Husqvarna 537210302

VIBRATION ABSORBER

Note: Hard

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

19

Husqvarna 537210303

VIBRATION ABSORBER

Note: Std

$34.99

$

In Stock, Qty 7

0

19

Husqvarna 537210304

VIBRATION ABSORBER

Note: Hard

$37.99

$

In Stock, only 1 left!

0

20

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

21

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

22

Husqvarna 537215001

SEALING

$8.99

$

In Stock, Qty 19

0
