574 (574125) - Cub Cadet Walk-Behind Mower (1985) Parts For Rotary Mower Part 1 Parts Diagram

Walk-Behind Mower

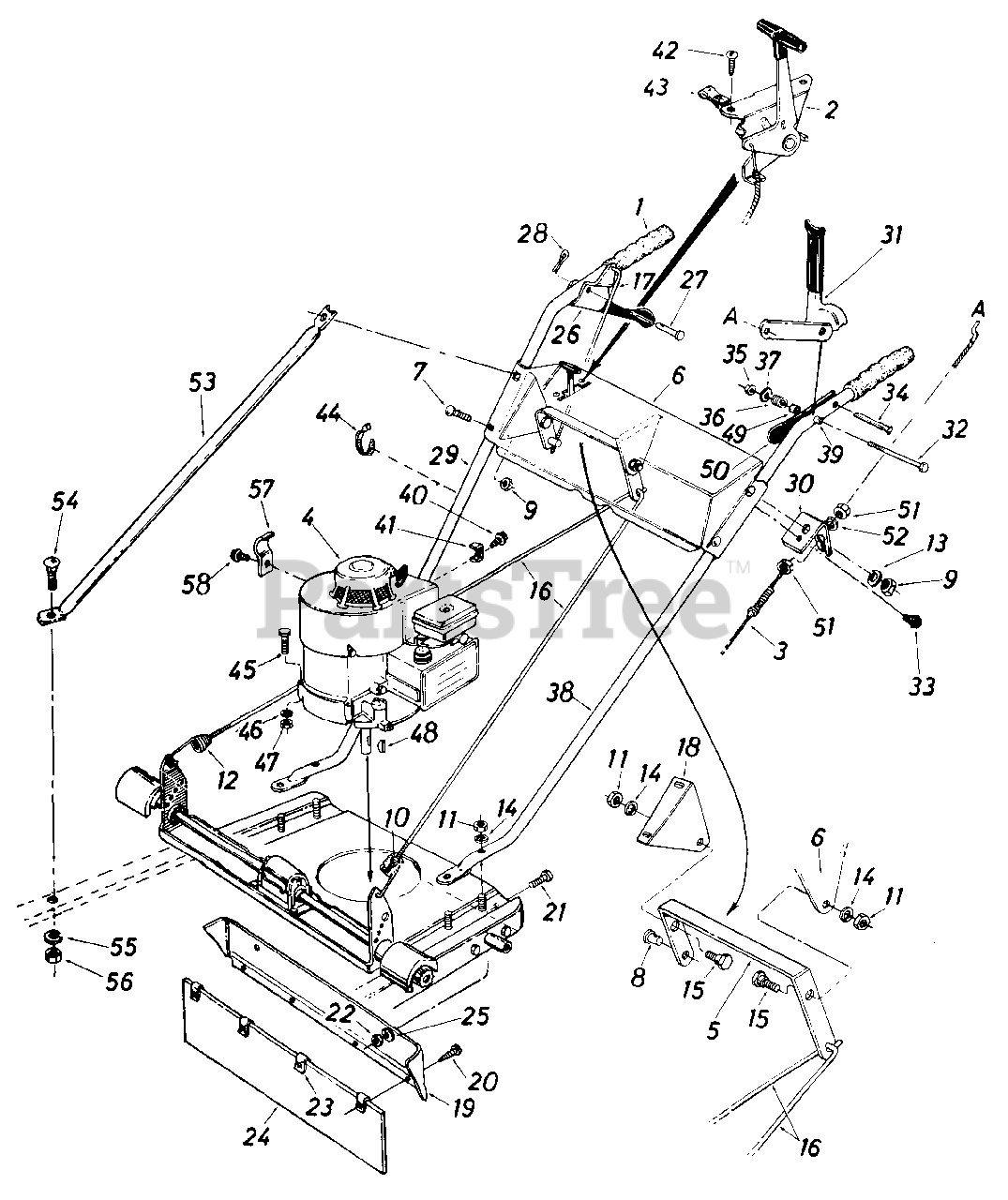

Parts For Rotary Mower Part 1 Parts Diagram

  • Title

1

Cub Cadet 720-0204

GRIP

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 746-0378

CONTROL-THROTTLE ASSY-COMP

$

$

Not available

3

Cub Cadet 746-0488

CABLE-CLUTCH 56.0

$

$

Not available

4

Note: ENGINE

$

$

Not available

5

Cub Cadet 12570

BRACKET-LINKAGE

$

$

Currently unavailable

6

Cub Cadet 15335

PANEL ASSY-HANDLE

$

$

Currently unavailable

7

Cub Cadet 710-0458

BOLT-CARRIAGE 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 711-0619

FERRULE-ADJ

$

$

Not available

9

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-0305

SPRING-EXTENSION

$

$

Not available

13

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0234

SCREW-SHLD .500 DIA X .295

$9.99

$

In Stock, only 4 left!

0

16

Cub Cadet 747-0162

ROD-LOCKOUT

$

$

Currently unavailable

17

Cub Cadet 747-0163

ROD

$

$

Not available

18

Cub Cadet 12571

BRACKET

$

$

Currently unavailable

19

Cub Cadet 12548

ADAPTER-DRAG SHIELD

$

$

Currently unavailable

20

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0567

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 726-0130

NUT-SPEED-U TYPE
(Superseded to 926-0130)

$

$

Not available

24

Cub Cadet 735-0182

SHIELD-DRAG

$

$

Currently unavailable

25

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

26

Cub Cadet 12921

GRIP ASSY-CLUTCH

$

$

Not available

27

Cub Cadet 711-0415

PIN-CLEVIS 3/8 X 1.620

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 749-0556

HANDLE-RH

$

$

Currently unavailable

30

Cub Cadet 16047

BRACKET-CLUTCH CABLE

$

$

Currently unavailable

31

Cub Cadet 15482

GRIP ASSY-BLADE CL

$

$

Currently unavailable

32

Cub Cadet 710-0641

SCREW-HEX 1/4-20 X 2.25

$3.99

$

In Stock, only 4 left!

0

33

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 731-0607

PIN-LOCKING

$

$

Not available

35

Cub Cadet 712-0291

NUT-HEX LOCK 1/4 X 20

$4.49

$

In Stock, Qty 9

0

36

Cub Cadet 732-0334

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0498

WASHER-INTERN L 1/4

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 749-0557

HANDLE-LH

$

$

Currently unavailable

39

Cub Cadet 750-0566

SPACER
(Superseded to 750-0566A)

$9.49

$

In Stock, Qty 5

0

40

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-0333

CLAMP-CASING

$

$

Not available

42

Cub Cadet 710-0224

SCREW-HEX AB-TAP #10 X .50
(Superseded to 910-0224)

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 712-0344

NUT-HEX JAM

$

$

Not available

44

Cub Cadet 725-0157

TIE-CABLE

$3.49

$

In Stock, only 4 left!

0

45

Cub Cadet 710-0158

SCREW-HEX 5/16-24 X 1.25
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

48

Cub Cadet 714-0365

KEY-HI-PRO #6-5/32 X 5/8 DIA

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-0565

SPACER

$7.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 732-0441

SPRING-LOCKOUT

$

$

Not available

51

Cub Cadet 712-0256

NUT-HEX JAM 5/16-24

$

$

Not available

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 749-0523

STRUT-HI WHL

$

$

Currently unavailable

54

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

58

Cub Cadet 710-0456

SCREW-HEX DRILLING #10 X .50

$

$

Not available

Cub Cadet 8574-100-5

HARDWARE PACK

$

$

Currently unavailable
