574 (574125) - Cub Cadet Walk-Behind Mower (1985) Parts For Rotary Mower Part 2 Parts Diagram

Walk-Behind Mower

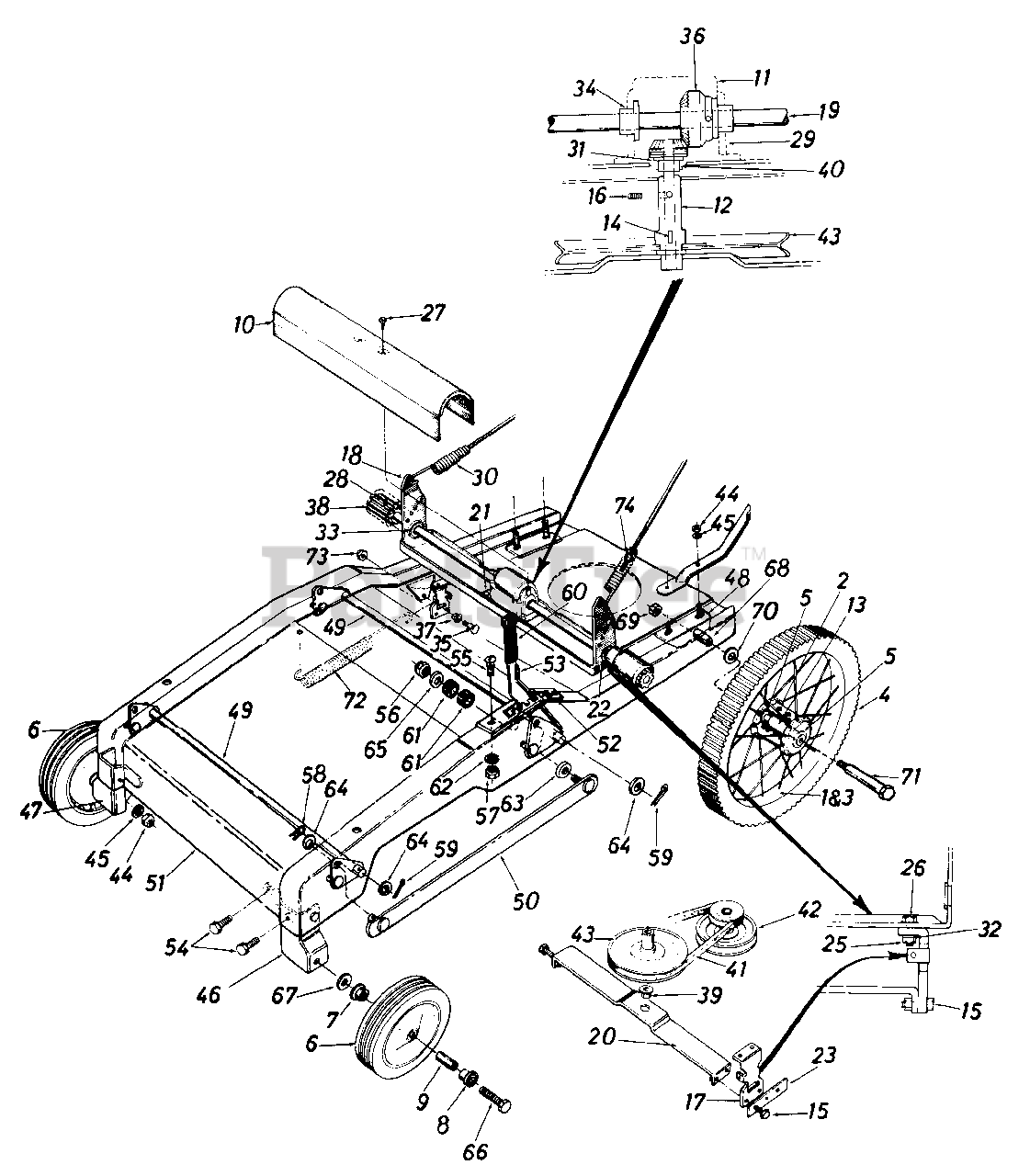

Parts For Rotary Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 734-0424

WHEEL ASSY W/TIRE-16 X 1.75 GEM

$

$

Currently unavailable

2

Cub Cadet 718-0132

CAP-PLASTIC

$

$

Not available

3

Cub Cadet 734-0180

WHEEL-16 IN

$

$

Currently unavailable

4

Cub Cadet 734-0391

TIRE-SEMI PNEU-16 X 1.75 GEAR TR

$

$

Not available

5

Cub Cadet 741-0138

BEARING-BALL

$

$

Not available

6

Cub Cadet 734-0642

WHEEL ASSY W/TIRE-8 X 1.75 TL

$

$

Not available

7

Cub Cadet 741-0267

BEARING-FLANGE

$

$

Not available

8

Cub Cadet 741-0484

BEARING-BALL
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 750-0434

SPACER

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 08100

COVER-TOP DR FRAME ASSY

$

$

Not available

11

Cub Cadet 08187

COVER-GEAR BOX

$

$

Currently unavailable

12

Cub Cadet 10254

PINION ASSY

$

$

Not available

13

Cub Cadet 711-0426

SPACER-WHEEL

$

$

Currently unavailable

14

Cub Cadet 714-0229

KEY-WOODRUFF #2-3/32X1/2 DIA-HDN

$

$

Not available

15

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

16

Cub Cadet 710-0421

SCREW-SET 5/16-18 X .25 CUP

$

$

Not available

17

Cub Cadet 10320

PLATE-BOT DR FRAME

$

$

Currently unavailable

18

Cub Cadet 15493

FRAME ASSY-TOP DR

$

$

Currently unavailable

18

Cub Cadet 15493

FRAME ASSY-TOP DR

$

$

Currently unavailable

19

Cub Cadet 10322

SHAFT-DRIVE

$

$

Not available

20

Cub Cadet 10328

FRAME ASSY-BOT DR

$

$

Not available

21

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 711-0169

COLLAR

$

$

Not available

23

Cub Cadet 10883

STOP-DR FRAME

$

$

Currently unavailable

25

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 X .75
(Superseded to 910-0198)

$

$

Not available

27

Cub Cadet 710-0227

SCREW-HEX WASH HD AB-TAPP #8 X .38

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 715-0150

PIN-ROLL

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 717-0108

KIT-GEAR BOX ASSY
(Superseded to 753-0218)

$

$

Not available

30

Cub Cadet 732-0305

SPRING-EXTENSION

$

$

Not available

31

Cub Cadet 735-0193

RING-O

$

$

Not available

32

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-0138

BEARING-BALL

$

$

Not available

34

Cub Cadet 748-0110

BEARING-FLANGE

$8.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 738-0141

SCREW-SHLD .437 DIA X .350
(Superseded to 938-0141)

$6.99

$

In Stock, Qty 8

0

36

Cub Cadet 748-0135

GEAR-BEVEL-.62 ID 28T

$

$

Not available

37

Cub Cadet 748-0180

SLIDE-PIVOT

$

$

Not available

38

Cub Cadet 748-0182

PINION-DRIVE

$

$

Not available

39

Cub Cadet 748-0226

BEARING-HEX FLANGE .503 ID

$

$

Currently unavailable

40

Cub Cadet 748-0269

BEARING-FLANGE .503 ID
(Superseded to 948-0108)

$8.49

$

In Stock, Qty 11

0

41

Cub Cadet 754-0143

BELT-3V-28

$

$

Not available

42

Cub Cadet 756-0154

PULLEY-ENGINE-TWO STEP

$

$

Not available

43

Cub Cadet 756-0155

PULLEY

$

$

Not available

44

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

46

Cub Cadet 10293

BRACKET ASSY-WHL-LH

$

$

Currently unavailable

47

Cub Cadet 10294

BRACKET ASSY-WHL-RH

$

$

Currently unavailable

48

Cub Cadet 10297

BRACKET-WHL-RR-LH

$

$

Currently unavailable

49

Cub Cadet 15329

SHAFT-LIFT BRKT

$

$

Currently unavailable

50

Cub Cadet 15331

LINK ASSY

$

$

Not available

51

Cub Cadet 15340

FRAME

$

$

Currently unavailable

52

Cub Cadet 15341

BRACKET ASSY-SUPPORT

$

$

Currently unavailable

53

Cub Cadet 15342

HANDLE-LIFT

$

$

Not available

54

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 X .75
(Superseded to 910-0198)

$

$

Not available

55

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

57

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

60

Cub Cadet 720-0142

GRIP-FL BAR-END

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 735-0126

WASHER-RUBBER
(Superseded to 735-0126A)

$

$

Not available

62

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0235

WASHER-FL-.406ID 1.25OD X.157/.172
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0272

WASHER-FL .510 X .995 X .060

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0427

SCREW-HEX 3/8-16 X 2.00
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 711-0425

SPACER-WHEEL AXLE

$

$

Currently unavailable

69

Cub Cadet 712-0181

NUT-HEX TOP LOCK-3/8-16

$3.99

$

In Stock, Qty 5

0

70

Cub Cadet 736-0192

WASHER-FL-.531 ID X .93 OD X .090

$3.99

$

In Stock, only 2 left!

0

71

Cub Cadet 738-0114

SCREW-SHLD .498 DIA X 4.755

$

$

Not available

72

Cub Cadet 732-0206

SPRING-EXTENSION

$

$

Not available

73

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0
