574 (574125) - Cub Cadet Walk-Behind Mower (1985) Strut Bars and Gas Tank Assembly Parts Diagram

Walk-Behind Mower

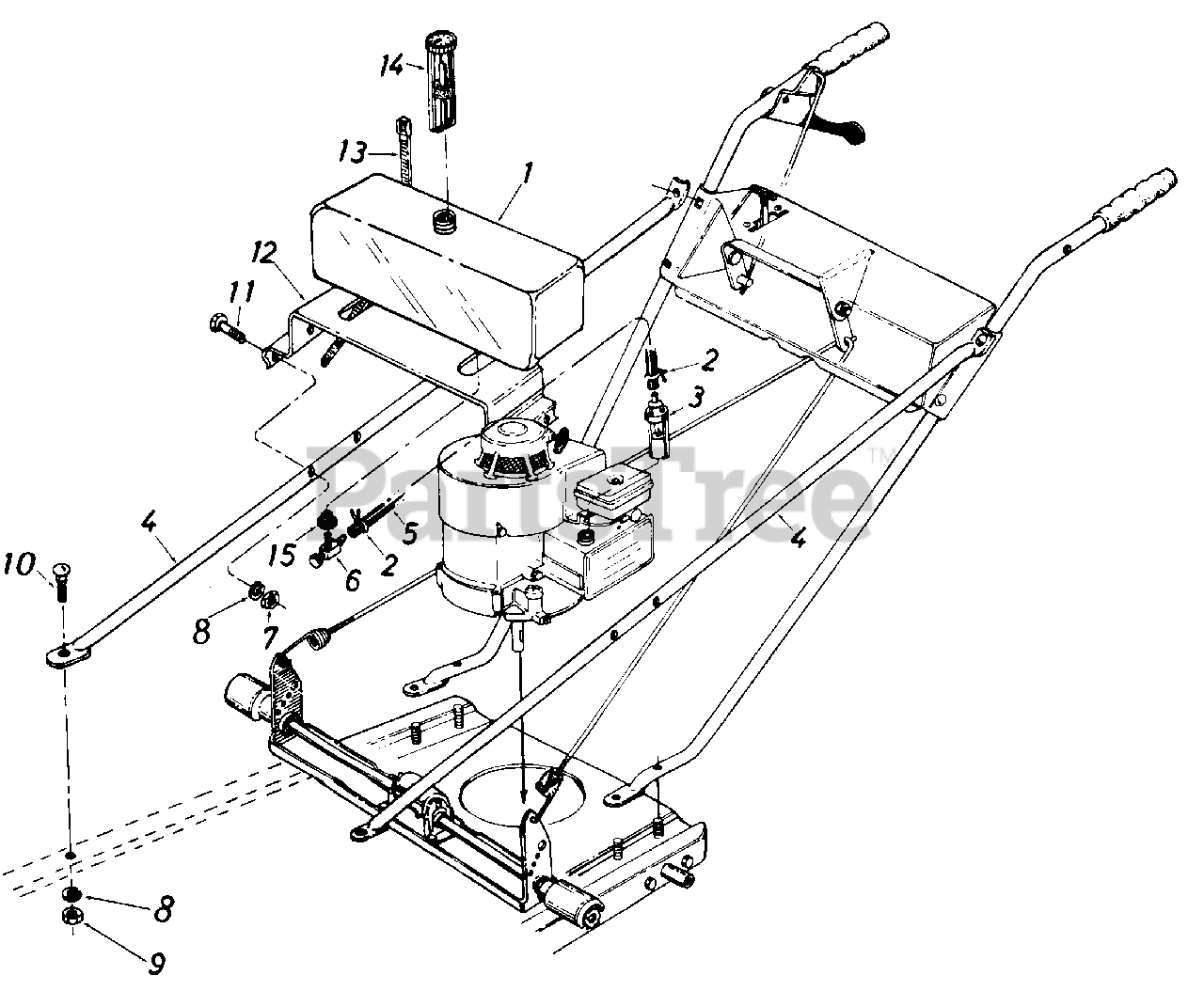

Strut Bars and Gas Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 751-0225

TANK-GAS

$

$

Not available

2

Cub Cadet 726-0183

CLAMP-HOSE 3/8

$

$

Not available

3

Cub Cadet 751-0297

VALVE-FUEL CONTROL

$

$

Not available

4

Cub Cadet 749-0523

STRUT-HI WHL

$

$

Currently unavailable

5

Cub Cadet 751-0173

FUEL LINE-15IN
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

6

Cub Cadet 751-0171

VALVE-SHUT OFF
(Superseded to 951-0171)

$19.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

8

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0158

SCREW-HEX 5/16-24 X 1.25
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 14426

BRACKET-GAS TANK MTG

$

$

Not available

13

Cub Cadet 726-0209

TIE-CABLE
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

14

Cub Cadet 723-0155

GAUGE-GAS

$

$

Not available

15

Cub Cadet 735-0149

BUSHING
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0
